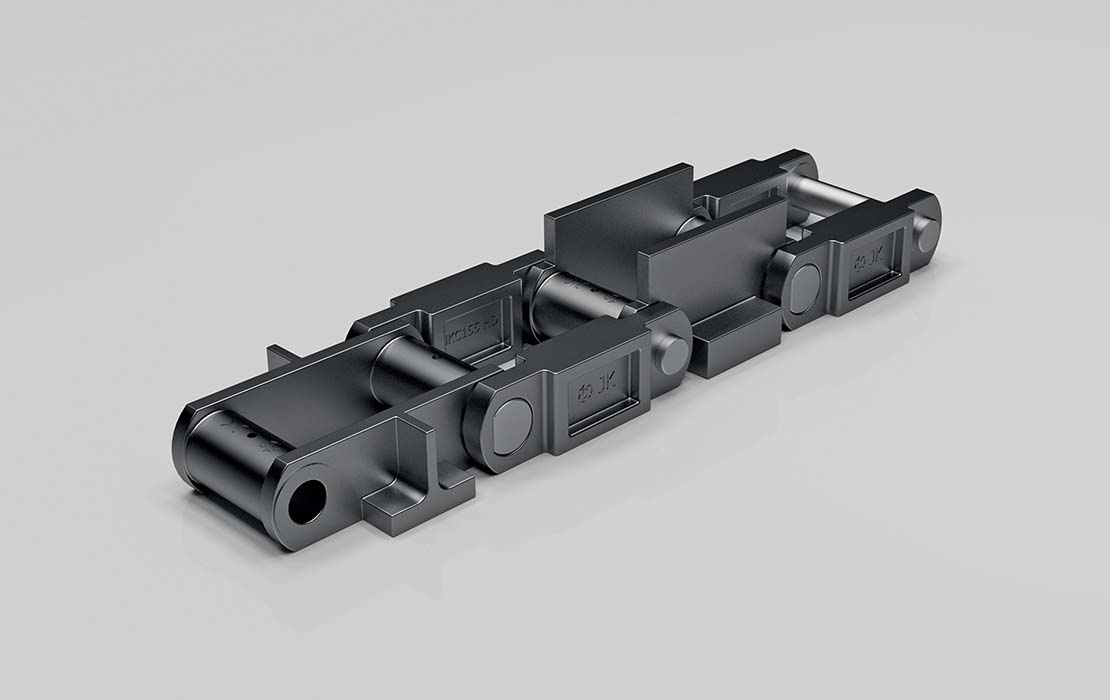

Integral Cast M attachment
Have questions or need a quote?
Get in touch with the team today.
Get in Touch
|

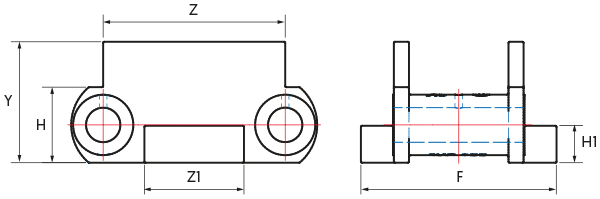

M Attachment (integral guide blocks) |
||||||||||||||
|
Chain |
F |
Z |
Z1 |
Y |
H |
H1 |
Average Weight |
|||||||
|
inches |
mm |
inches |
mm |
inches |
mm |
inches |
mm |
inches |
mm |
inches |
mm |
lbs |
kg |
|
|
JKC132/HD/M300 |
6.50 |
165.1 |
6.05 |
153.67 |
3.31 |
84.0 |
3.00 |
76.20 |
2.00 |
50.8 |
0.75 |
19.05 |
10.00 |
4.54 |
|
JKC155/HD/M325 |
6.50 |
165.1 |
6.05 |
153.67 |
3.31 |
84.0 |
3.25 |
82.55 |
2.50 |
63.5 |
1.25 |
31.75 |
13.00 |
5.90 |
|
JKC155/HD/M350 |
6.50 |
165.1 |
6.05 |
153.67 |
3.31 |
84.0 |
3.50 |
88.90 |
2.50 |
63.5 |
1.25 |
31.75 |
13.50 |
6.12 |
|
JKC155/HD/M400 |
6.50 |
165.1 |
6.05 |
153.67 |
3.31 |
84.0 |
4.00 |
101.60 |
2.50 |
63.5 |
1.25 |
31.75 |
14.20 |
6.44 |
|
JKC157/HD/M325 |
7.09 |
180.0 |
6.08 |
154.43 |
3.37 |
85.6 |
3.25 |
82.55 |
2.50 |
63.5 |
1.25 |
31.75 |
13.28 |
6.02 |
|
JKC157/HD/M350 |
7.09 |
180.0 |
6.08 |
154.43 |
3.37 |
85.6 |
3.50 |
88.90 |
2.50 |
63.5 |
1.25 |
31.75 |
13.80 |
6.26 |
|
JKC157/HD/M400 |
7.09 |
180.0 |
6.08 |
154.43 |
3.37 |
85.6 |
4.00 |
101.60 |
2.50 |
63.5 |
1.25 |
31.75 |
14.83 |
6.73 |
