Offset Sidebar Heavy Duty Bush Chains
Have questions or need a quote?
Get in touch with the team today.

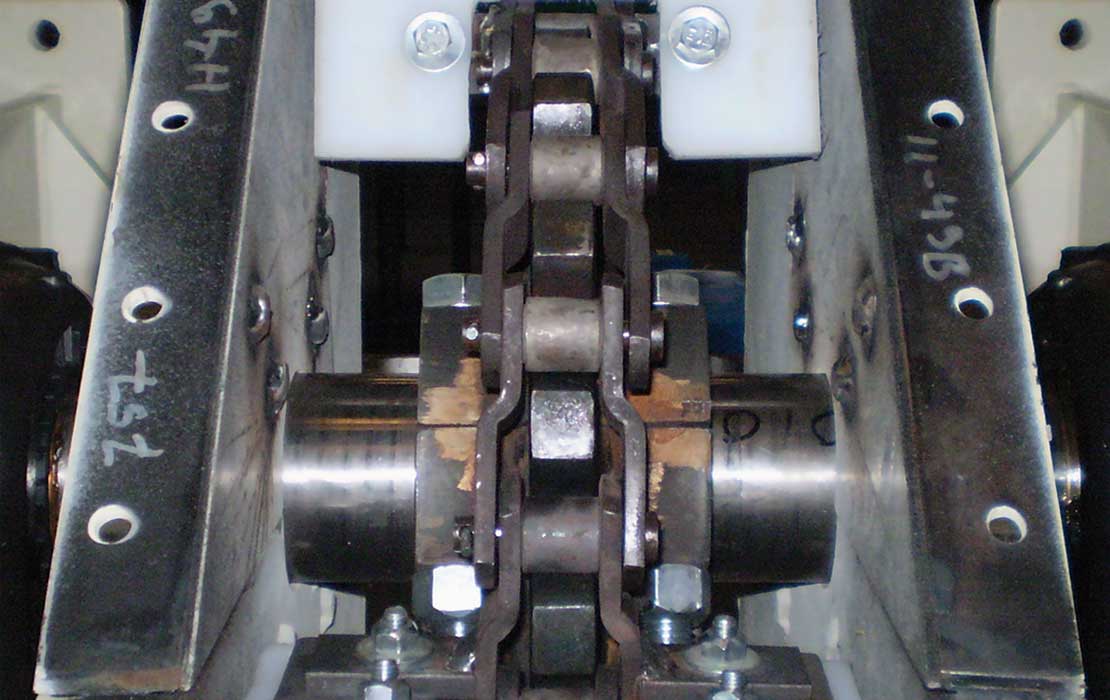

This series has developed in the US grain industry as an alternative to Welded steel chain in high capacity grain handling equipment. The chain construction is as KING JKB style with a pressed bush and pin. The link plates maintain the crank link form. There are five main standards within the series which loosely follow the Welded steel range. Other varieties can be offered (request details of John King works standard MX series chains).The flight formats will be as welded steel chain with polyethylene flights in various forms bolted to steel backing plates which in turn are welded to the chain.
|
Offset Sidebar Heavy Duty Bush Chains |
|||||||||
|
Chain |
Pitch |
Bushings |
Pins |
Over-All Pin & Cotter |
Between Sidebars |
Sidebars |
Breaking Load |
Average Weight |
|
|
Outside Diameter |
Diameter |
Thickness |
Height |
||||||
|
P |
D5 |
D6 |
F1 |
L |
S |
H |
|||
|
inches |
lbs |
lbs/ft |
|||||||
|
JKB82H/C |
3.00 |
1.125 |
0.56 |
2.94 |
1.19 |
0.313 |
1.50 |
41,000 |
6.20 |
|
JKB124H/C |
4.00 |
1.125 |
0.63 |
4.00 |
1.94 |
0.38 |
2.00 |
60,000 |
9.50 |
|
JKB106H/C |
6.00 |
1.125 |
0.63 |
4.00 |
1.94 |
0.38 |
2.00 |
60,000 |
9.50 |
|
JKB132H/C |
6.00 |
1.50 |
0.875 |
4.80 |
2.125 |
0.50 |
2.50 |
105,000 |
13.80 |
|
JKB155H/C |
6.00 |
1.75 |
1.13 |
5.56 |
2.50 |
0.56 |
3.00 |
148,000 |
20.00 |
Note: Specifications based on standard material and heat treatment.
Options of austentic stainless steel plates and hardening stainless materials for pin and bushes available on request.
