Offset Sidebar Welded Steel Chains

Have questions or need a quote?

Get in touch with the team today.

Get in Touch

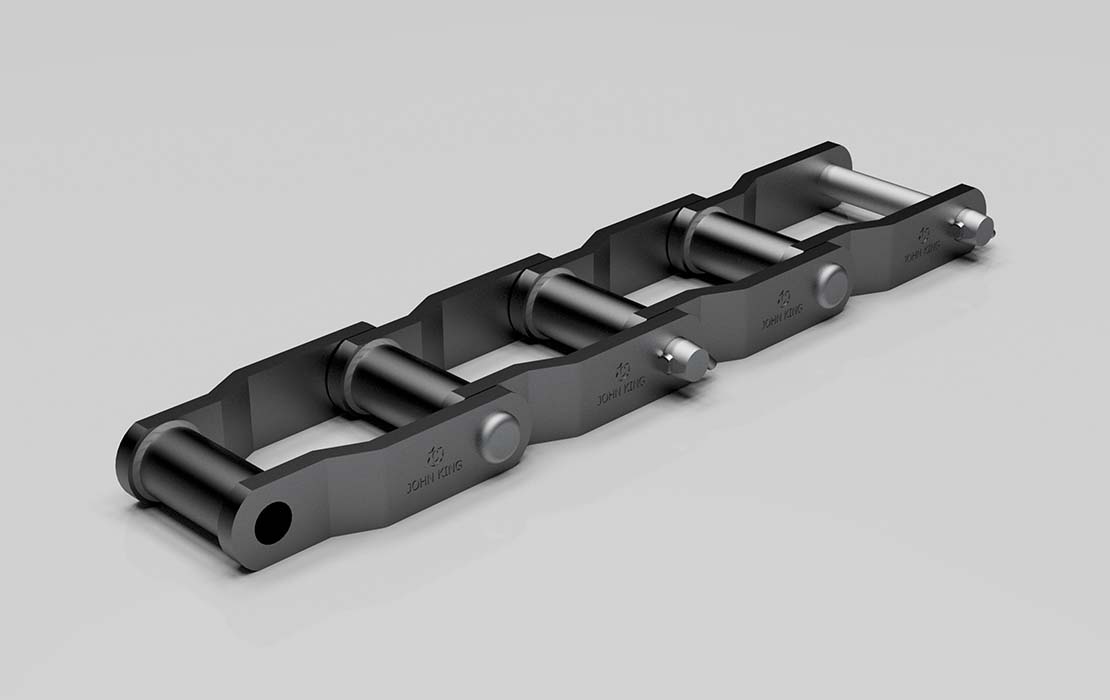

JOHN KING Welded Steel Chains have become a preferred choice in many high duty grain handling applications. The series employs an offset side plate, a bush circumferentially welded to the side plate with a pin subject to heavy interderence fit of normally cottered construction. The side bar crank profile includes a “long landing” to allow maximum area for welding. The standard KING chain has heat treated parts, including an induction hardened pin for optimum performance in high duty applications. The chain is generally utilised with polyethylene flights of various forms bolted to steel backing plates which in turn are welded to the chain.

Offset Sidebar Welded Steel Chains
Offset Sidebar Welded Steel Chains - drawing

Offset Sidebar Welded Steel Chains

Chain Number

P

Breaking Load

Average Weight

Bushings

Between Sidebars

Sidebars

Pins

Length of Bearing

Overall Pin & Cotter

Outside Diameter

Thickness

Height

Diameter

D5

L

S

H

D6

B

F1

in

lbs

lbs/ft

inches

WHX 78/C

2.609

33,000

4.30

0.84

1.00

0.25

1.25

0.50

2.00

3.00

WHX 82/C

3.075

36,000

4.70

1.00

1.13

0.25

1.25

0.56

2.25

3.38

WHX 124/C

4.000

57,000

7.80

1.25

1.50

0.38

1.50

0.75

2.75

4.25

WHX 111/C

4.760

60,000

8.60

1.25

1.75

0.38

1.75

0.75

3.38

4.81

WHX 110/C

6.000

50,500

7.00

1.25

1.88

0.38

1.50

0.75

3.00

4.00

WHX 106/C

6.000

60,000

6.20

1.25

1.50

0.38

1.50

0.75

2.75

4.25

WHX 132/C

6.050

122,000

14.10

1.75

2.75

0.50

2.00

1.00

4.41

6.38

WHX 150/C

6.050

122,000

16.30

1.75

2.75

0.50

2.50

1.00

4.41

6.50

WHX 155/C

6.050

175,000

19.00

1.75

2.75

0.56

2.50

1.13

4.44

6.41

WHX 157/C

6.050

175,000

20.00

1.75

2.75

0.63

2.50

1.13

4.63

6.75

WHX 159/C

6.125

210,000

26.00

2.00

2.75

0.63

3.00

1.25

4.63

6.75

WHX 200/C

6.125

190,000

22.10

2.00

2.75

0.63

2.50

1.25

4.63

6.75
