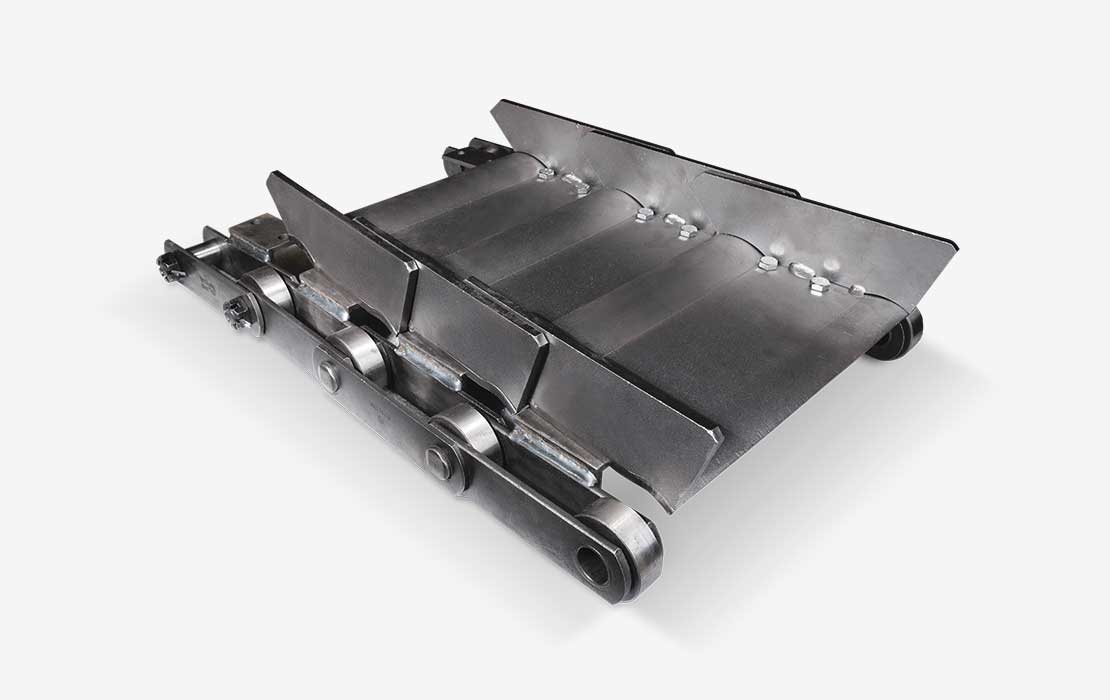

King Pan Conveyor JKP Series
Have questions or need a quote?
Get in touch with the team today.
A typical means of transporting clinker is with a pan or bucket. The PL Series shows a G style attachment for side mounted deep bucket location. The JKP series employs an integral K attachment for underside fixing to the pan. For the former it is typical to see guide rollers mounted on the chain pin or axle whilst for the latter the guide roller is generally a separate unit fixed to the pan. Clearly the chain is not directly exposed to the material which offers advantage. All variations of chains within this category can be manufactured.
|

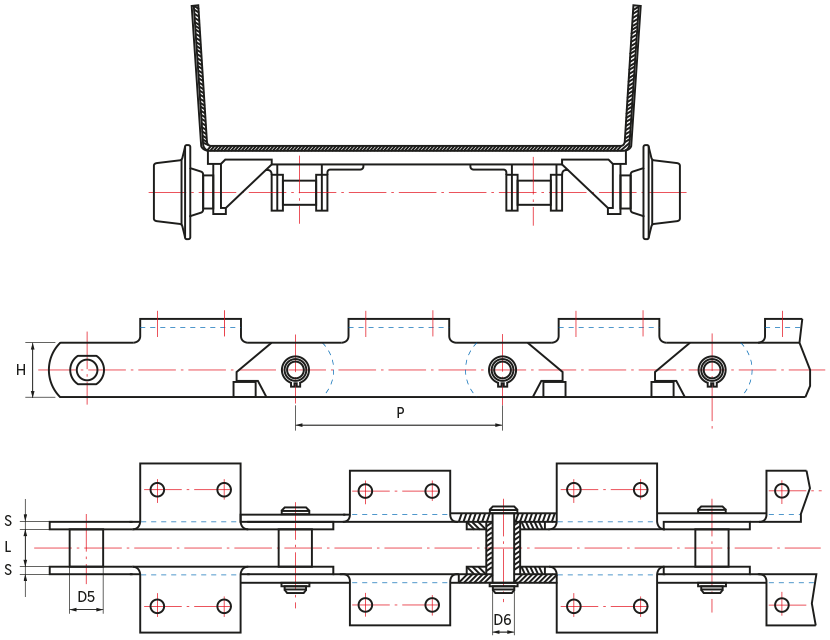

King Pan Conveyor JKP Series |
|||||||
|
Chain |
Pitch |
Bushings |
Pins |
Between Sidebars |
Sidebars |
Average Ultimate Strength |
|
|
Outside Diameter |
Diameter |
Thickness |
Height |
||||
|
P |
D5 |
D6 |
L |
S |
H |
||
|
mm |
kN |
||||||
|
JKP250/290/K2 |
250 |
32 |
20 |
32 |
8 |
45/55 |
290 |
|
JKP250/510/K2 |
250 |
40 |
26 |
45 |
10 |
65/75 |
510 |
|
JKP250/700/K2 |
250 |
44 |
30 |
55 |
12 |
70/85 |
700 |
|
JKP250/900/K2 |
250 |
52 |
34 |
60 |
12 |
85/100 |
900 |
|
JKP250/1200/K2 |
250 |
60 |
40 |
60 |
10 |
100/90 |
1200 |
|
JKP250/1500/K2 |
250 |
85 |
42 |
70 |
10 |
105/85 |
1500 |
|
JKP250/1900/K2 |
250 |
85 |
50 |
80 |
12 |
115/95 |
1900 |
|
JKP250/2300/K2 |
250 |
85 |
55 |
90 |
12 |
130/110 |
2300 |
|
JKP250/3000/K2 |
250 |
90 |
60 |
100 |
12/16 |
140/110 |
3000 |
