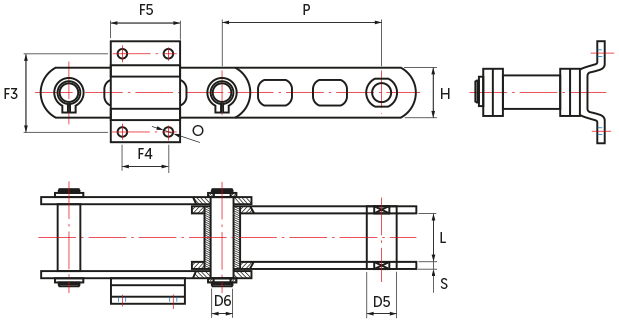

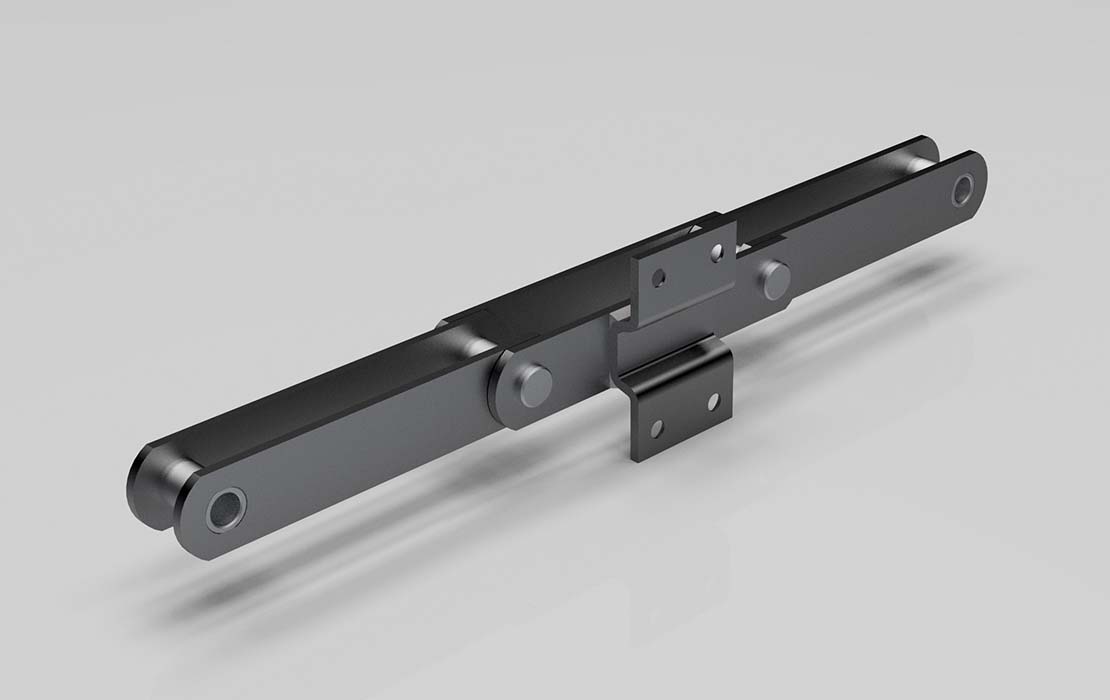

King Deep Bucket Pan Conveyor PL Series |
|||||||||||||
Chain |
Pitch |
Bushings |
Pins |
Between Sidebars |
Sidebars |
F3 |
F4 |
F5 |
O |
Flanged |
Axle |
Average Ultimate |
|
Outside Diameter |
Diameter |
Thickness |
Height |
||||||||||
P |
D5 |
D6 |
L |
S |
H |
||||||||
mm |
kg |
||||||||||||
PL200200 |
200 |
32 |
22 |
45 |
8 |
50 |
110 |
60 |
100 |
14 |
50 |
22-28 |
250 |
PL250320 |
250 |
45 |
32 |
65 |
10 |
70 |
150 |
80 |
120 |
18 |
60 |
32-40 |
400 |
PL250480 |
250 |
50 |
35 |
67 |
12 |
80 |
150 |
80 |
120 |
18 |
70 |
35-45 |
630 |
