JKO1419 High Load Chain Oil

Have questions or need a quote?

Get in touch with the team today.

Get in Touch

Product Description

JKO1419 is a revolutionary oil that surpasses the extreme pressure requirements in heavily loaded chains. It has a marked ability to creep into the chain links and stay in position JKO1419 retains a lasting fine film on the metal surface regardless of how thoroughly the surfaces are wiped.

JKO1419 is heavily fortified with carefully calibrated extreme pressure-resistant supplements. It contains additional supplements for corrosion resistance, oxidation resistance, water wash qualities which outperform most conventional chain oils.

JKO1419 dramatically reduces the noise level in a chain system. This prevents scuffing, scoring, galling, pitting and scraping. These major causes of noise (and wear) are largely eliminated as JKO1419 promotes the near-silent running of chains.

Outstanding Features

  • Penetrates to the links and pins reducing wear and extending chain life,
  • Adhesive additives ensure non-drip. No fling thus providing lasting lubrication,
  • Excellent adhesive characteristics ensures a high degree of water resistance and protects parts from corrosion even in the presence of aggressive materials,
  • Extremely wide temperature range ensures maximum application versatility. Upper operating temperature limit: 140°C.

Technical Data

TYPICAL DATA: TEST ASTMChain Oil JKO1419
ISO Viscosity Grade: D-2422 320
Appearance: Visual Blue
Density Kg/L @ 15.0°C: D-12980.900
Viscosity, cSt @ 40°C: D-445 320
Flash Point, COC, °C (°F): D-92 220 (428)
Fire Point, COC, °C (°F): D-92 240 (464)
Pour Point, °C (°F): D-97 -20
Four Ball, Wear Scar Dia, mm: D-2266 0.4
Four Ball Weld Load: IP239 620 kg
FZG, Pass Stages: FZG >12
JKO1419 High Load Chain Oil
  • Block and bar chains
  • Heavy drive chains (JKD series)
  • High duty transmission chains
  • Overhead conveyor chains
  • Steel bush series chains
  • Steel roller conveyor chains
  • Welded steel chains

Pack sizes:
20 l = 5.3 US gallons
205 l = 54 US gallons

Used in industries

QUARRY

STEEL

Product card

JKO1419 High Load Chain Oil

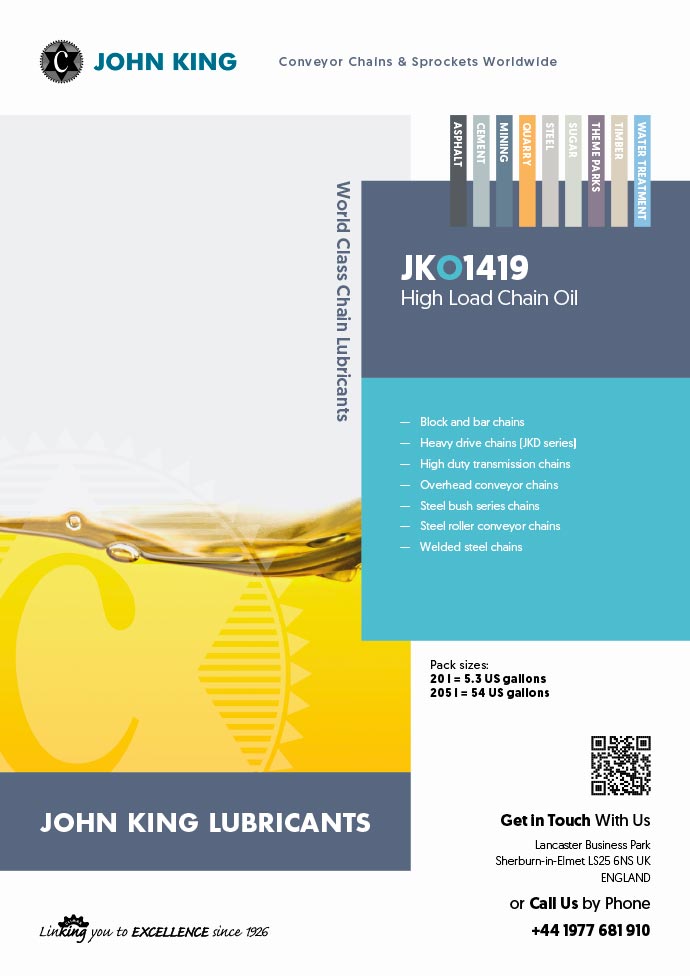

Please note that the flyers below are in PDF format and that you will need Adobe Reader to view this flyer.
