Traveling Water Screen Chains

Have questions or need a quote?

Get in touch with the team today.

Get in Touch

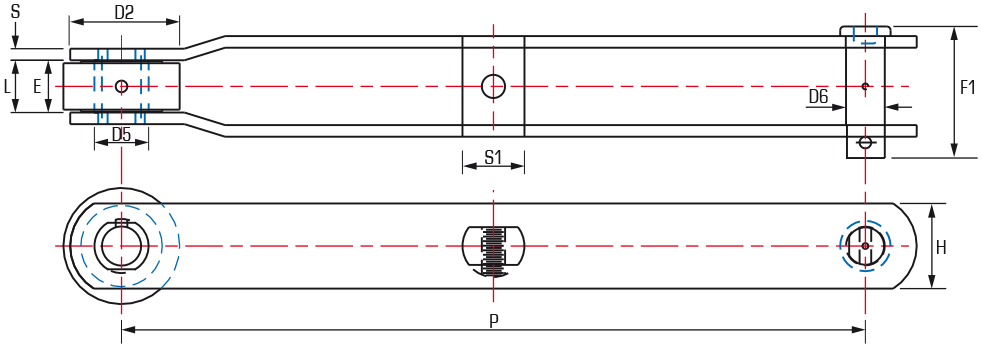

JKR2929, JKR2929H (STYLE A)

JKR2929, JKR2929H (STYLE A)

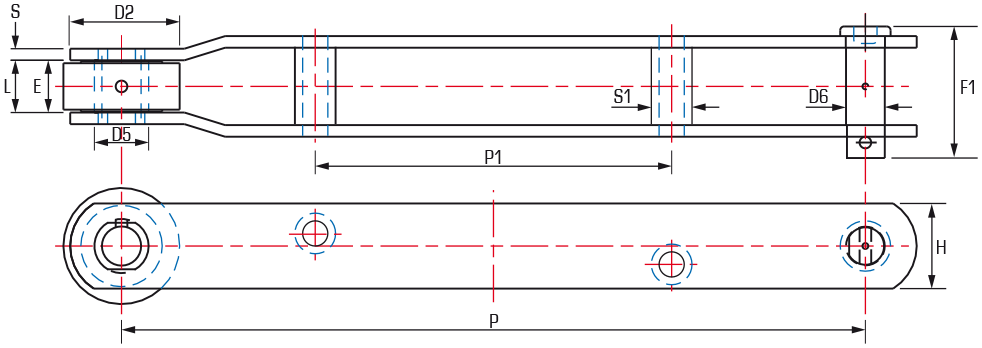

JKR1960, JKR1960H (STYLE B)

JKR2929, JKR2929H (STYLE A)

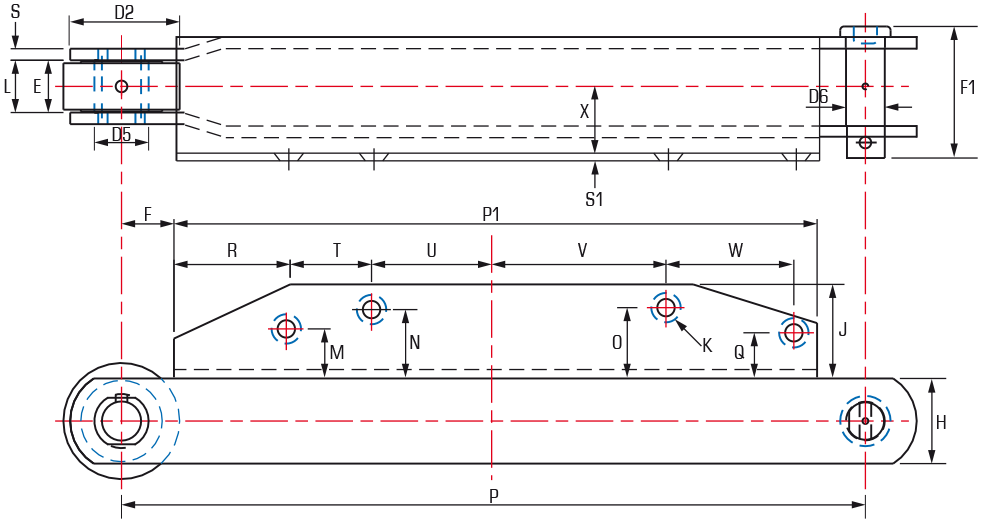

JKR3260, JKR3260H (STYLE C)

JKR2929, JKR2929H (STYLE A)

Traveling Water Screen Chains

Chain
Number

Style

Pitch

Roller

Bushing

Bushing Attachment

Pin

Between
Width

Sidebar

Overall
Width

Ultimate Tensile Strenght

Approx. Weight

Outside Diameter

Length

Diameter

Diameter

Diameter

Height

Thickness

P

D2

E

D5

S1

D6

L

H

S

F1

P1

inches

lbs

lbs/ft

JKR2929

A

24.00

3.75

1.63

1.75

2.00

1.25

1.69

2.75

0.38

4.25

66,000

12.3

JKR2929H

A

24.00

3.75

1.63

1.75

1.94

1.25

1.69

2.75

0.50

4.75

88,000

15.1

JKR1960

B

24.00

4.00

1.50

1.75

1.31.

1.21

1.56

3.00

0.38

3.63

11.50

75,000

12.3

JKR1960H

B

24.00

4.00

1.50

1.75

1.31

1.21

1.56

3.00

0.50

4.13

11.50

100,000

15.4

JKR3260

C

24.00

3.75

1.63

1.75

1.25

1.69

2.75

0.38

4.19

57,000

15.8

JKR3260H

C

24.00

3.75

1.63

1.75

1.25

1.69

2.75

0.50

4.75

75,000

18.6



Bushing Attachment

P1

S1

J

M

N

O

Q

R

S1

U

V

W

F

X

Z

K

inches

20.75

0.25

3.00

1.56

2.19

2.25

1.44

5.38

2.75

3.88

5.63

4.13

1.75

2.38

4.00

0.53

20.75

0.25

3.00

1.56

2.19

2.25

1.44

5.38

2.75

3.88

5.63

4.13

1.75

2.63

5.00

0.53
