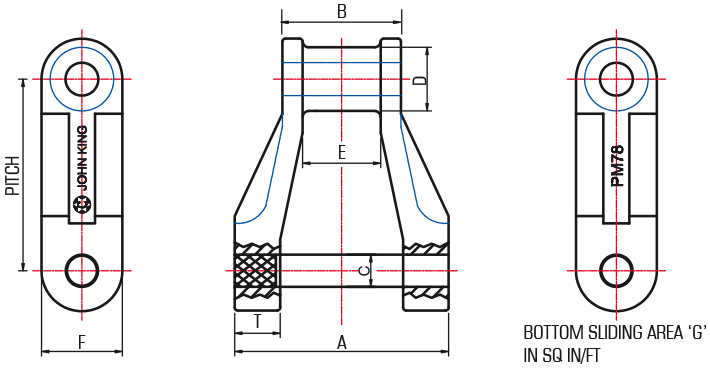

Collector Drive Chains

Chain
Number

Material

Pitch

Overall Width

Allowable Sprocket Face

Side Bar
Width

Length of Bearing

Pins

Roller Diameter

T

G

Rated Working Load

Ultimate Tensile Strenght

Weight

A

E

F

B

C

D

inches

lbs

lbs/ft

PM78

PM

2.609

2.970

1.100

1.14

1.630

0.425

0.875

N/A

11.50

1,750

4,000

1.40

PM82

PM

3.075

3.240

1.125

1.50

2.000

0.250

1.250

N/A

13.70

2,100

5,000

2.20

SS78/C

SS

2.609

2.563

1.125

1.25

2.609

0.500

0.875

1/4

N/A

2,500

24,000

3.80

ALL 700 SERIES COLLECTOR CHAINS ARE ‘OFFSET’ CONSTRUCTION AND AVAILABLE IN VARIOUS MATERIAL GRADES
CS – Cast Steel as King JK/WRI wear resistant grade or 304SS stainless steel with 420SS pin.
WS – Welded Steel with heat treated carbon steel plates and through hardened pin and bush.
PM – Acetal Co-Polymer engineering plastic. PM720S with moulded pin PM78 and PM82 with 304SS pin.
SS – Conventional engineered construction with 304SS stainless steel sideplates and 420SS heat treated pins and bushes.

Specifications can be varied to suit customers particular requirements.
