700 Series Collector Chain Attachment (720)

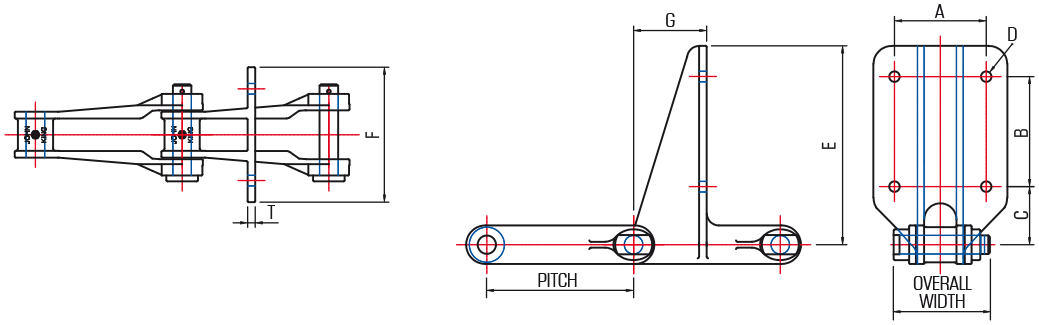

700 Series Collector Chain Attachment (720) - drawing

Collector Chain Attachment Details

Chain
Number

Material

Pitch

Overall Width

A

B
F22-6

B
F22-8

C

D

E
F22-6

E
F22-8

F
F22-6

F
F22-8

G

T

Ultimate Tensile Strenght

Rated Working Load

Weight

inches

lbs

lbs

lbs

720

CS

6.00

3.50

3.75

2.625

4.50

2.375

0.375

6.125

8.125

5.50

5.50

3.00

0.313

27,500

4,025

11.80

720S

CS

6.00

4.00

3.75

2.625

4.50

2.375

0.375

6.125

8.125

5.375

5.50

3.00

0.313

37,500

4,425

13.30

720SC

CS

6.00

3.82

3.75

2.625

4.50

2.375

0.375

6.125

8.125

5.375

5.625

3.00

0.313

37,500

4,425

14.00

730SC

CS

6.00

3.82

3.75

2.625

4.50

2.375

0.375

6.125

8.125

5.375

5.625

3.00

0.313

37,500

4,425

15.60

NOTE: F2 ATTACHMENT ALSO AVAILABLE ON CS CHAINS

WH720S

WS

6.00

3.438

3.75

2.625

4.50

2.375

0.375

6.00

7.875

5.00

5.50

3.00

0.25

42,500

5,300

10.70

SS720

SS

6.00

3.50

3.75

2.625

4.50

2.375

0.563

6.188

7.875

5.50

5.625

3.00

0.25

42,500

5,300

13.10

PM720S

PM

6.00

3.438

3.75

2.625

4.50

2.375

0.375

6.125

7.875

5.50

5.625

3.00

0.313

6,000

2,600

1.34
