Flight bars are available in two formats dependent on the customer preference. The principal is that the flight does the work and the chain ends act as the conveying medium.
One piece FL series
|
SQL One piece FL series. |
||
|
Chain |
Height |
Width |
|
inches |
||
|
FL/JKSQ1.125X2X6 |
4.5 and 5 |
24 up to 42 |
|
FL/JKSQ1.25X2X6 |
4.5 and 5 |
24 up to 42 |
|
FL/JKSQ1.5X2.25X8 |
5 and 6 |
26 up to 48 |
|
FL/JKSQ1.75X2.5X8 |
5 and 6 |
26 up to 48 |

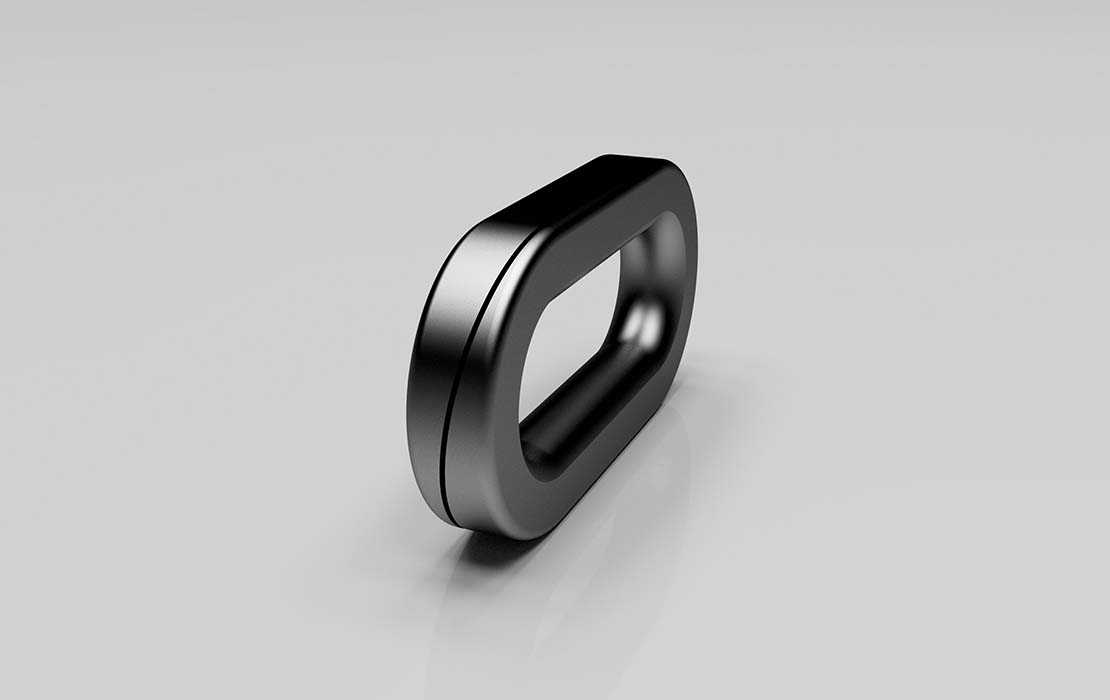

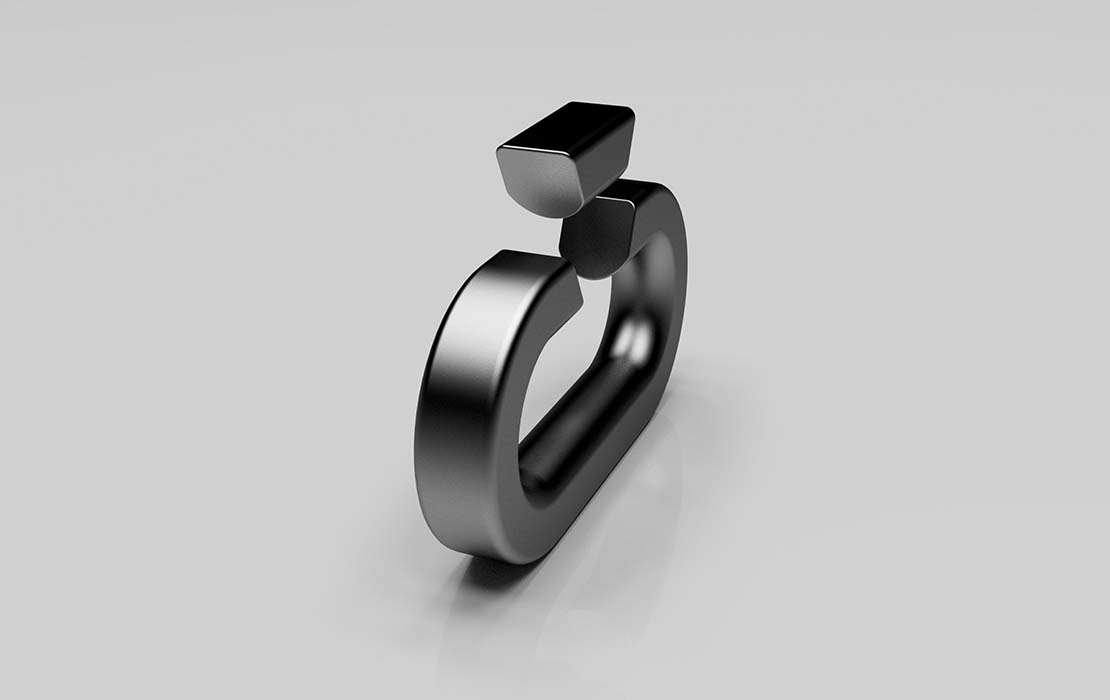

The FL flight allows for connection of the chain ends either by utilising a L lap link or W wedge link to connect to the flight fixed loop.
Double tang chain flight DT series
|
SQL Double tang chain flight DT series |
||
|
Chain |
Height |
Width |
|
inches |
||
|
DT/JKSQ1.125X2X6 |
4.5 and 5 |
24 up to 42 |
|
DT/JKSQ1.25X2X6 |
4.5 and 5 |
24 up to 42 |
|
DT/JKSQ1.5X2.25X8 |
6 |
26 up to 48 |
|
DT/JKSQ1.75X2.5X8 |
6 |
26 up to 48 |
The DT flight is made up of two identical flights that enclose the link and allow for welding of chain and flight tangs to make the elements one piece. The flight is cast from an alloy which is subsequently heat treated for toughness and wear resistance but remains fully weldable. The advantage of this option is that chain lengths can be increased and the flight bars dropped in at any preferred spacing within the chain.
