Chain drive sprockets of solid construction
Have questions or need a quote?
Get in touch with the team today.

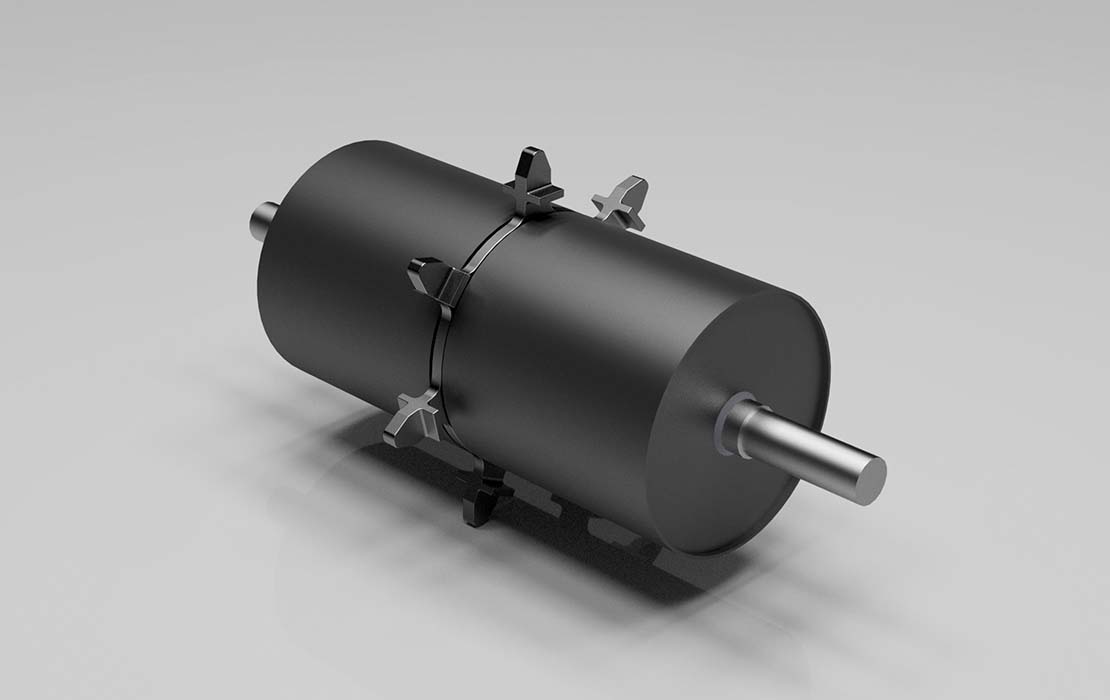

The one piece drive ring is produced in the same material options as the chain so JK/MN with work hardening qualities. The abrasive nature of bark and waste wood transport with a high level of contaminants allows the manganese steel to develop the work hardening qualities for which it its renowned achieving in excess of 500 Bnh in the right conditions. Guide drums are combined with the chain ring to create a support for the flights and prevent material build up in this critical area.
|
Chain drive sprockets of solid construction |
|||||
|
Sprocket |
Drum |
Radius |
Bore Sizes |
||
|
D |
W |
T |
R |
A |
|
|
inches |
|||||
|
5 TOOTH |
|||||
|
41/JKSQ1.125X2X6/5T |
14 |
As required |
0.5 |
8.875 |
2.4375 – 3.9375 |
|
41/JKSQ1.25X2X6/5T |
14 |
As required |
0.5 |
8.125 |
2.4375 – 3.9375 |
|
7 TOOTH |
|||||
|
41/JKSQ1.125X2X6/7T |
20 |
As required |
0.5 |
12.25 |
2.9375 – 5. 4375 |
|
41/JKSQ1.25X2X6/7T |
20 |
As required |
0.5 |
12.1875 |
2.9375 – 7 |
