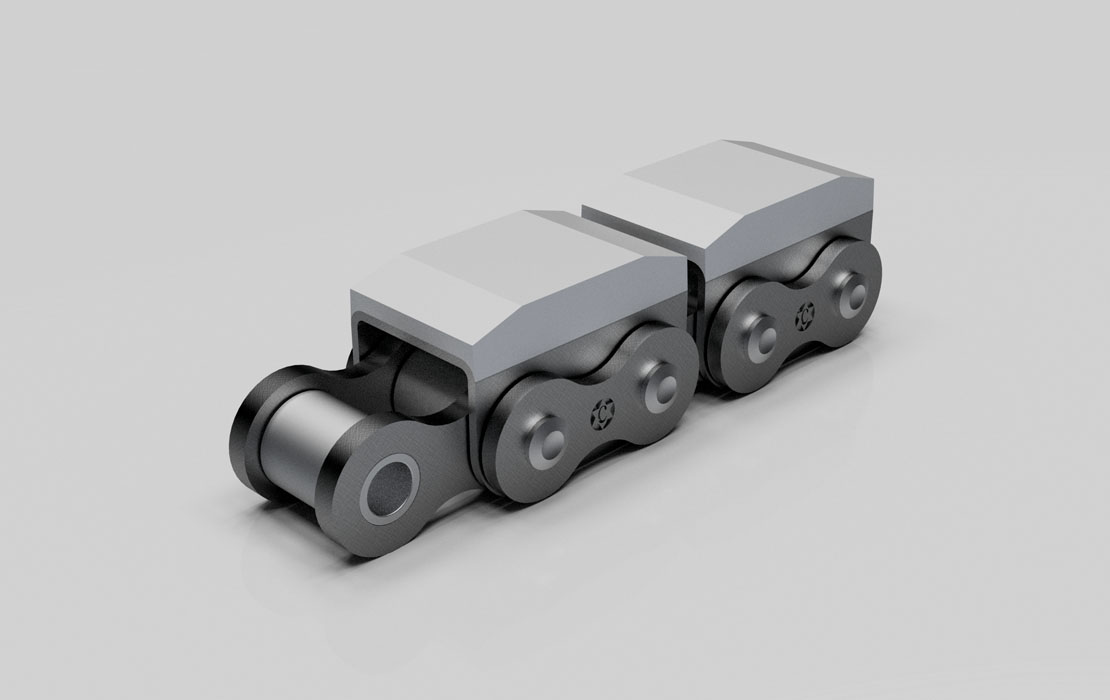

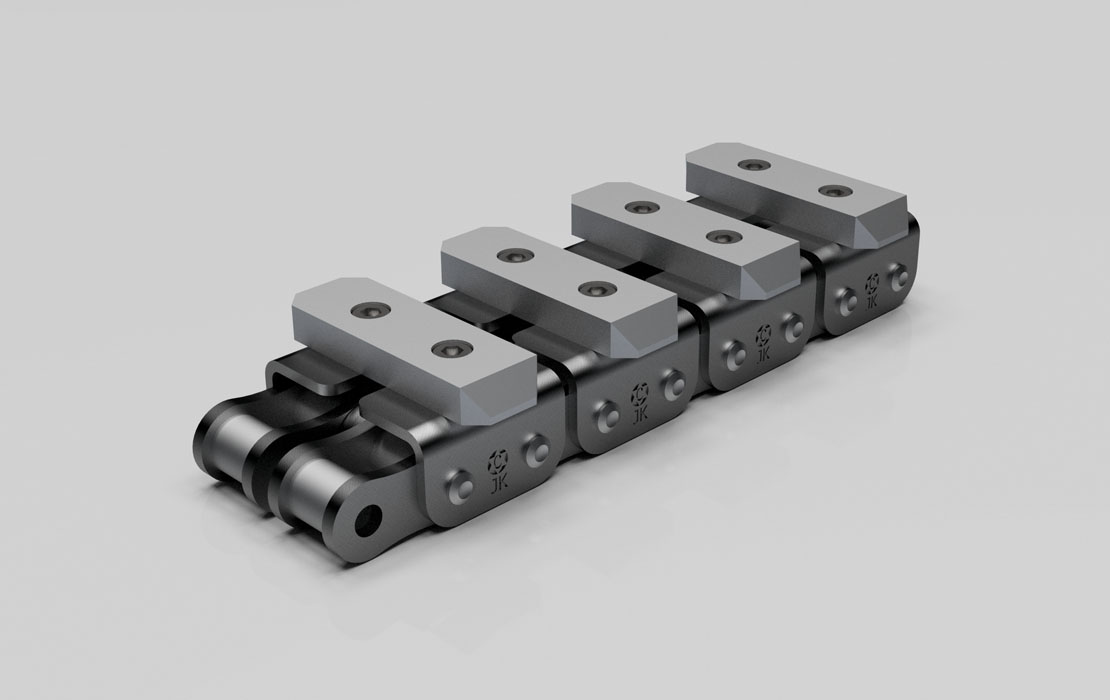

Roller chains with Carrier Pads
Have questions or need a quote?
Get in touch with the team today.
|

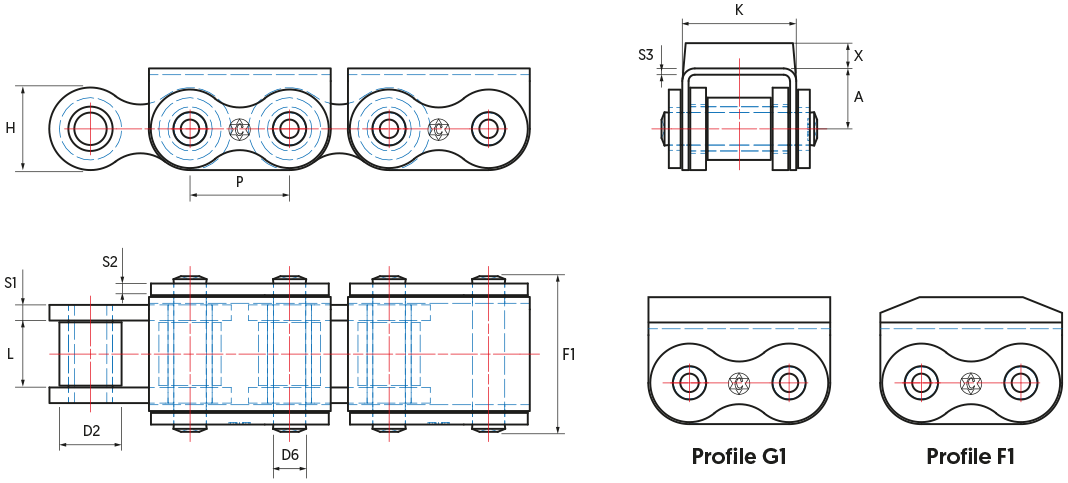

Roller Chains with Rubber Blocks |
|||||||||||||||
|
Chain |
Pitch |
Roller |
Pins |
Over-All Pin |
Between |
Sidebars |
K |
A |
S3 |
X |
Ultimate Breaking Load |
Maximum Allowable Load |
Weight |
||
|
Diameter |
Thickness |
Height |
|||||||||||||
|
P |
D2 |
D6 |
F1 |
L |
S1 |
S2 |
H |
||||||||
|
mm |
kN |
kN |
kg/m |
||||||||||||
|
08B-1/G1 |
12.70 |
8.51 |
4.45 |
20.00 |
7.75 |
1.60 |
1.60 |
11.80 |
14.60 |
8.30 |
1.60 |
4.00 |
18.00 |
2.57 |
1.19 |
|
10B-1/G1 |
15.88 |
10.16 |
5.08 |
23.20 |
9.65 |
1.60 |
1.60 |
14.70 |
16.80 |
11.30 |
1.60 |
5.70 |
19.00 |
2.71 |
1.62 |
|
12B-1/G1 |
19.05 |
12.07 |
5.72 |
25.70 |
11.68 |
1.80 |
1.80 |
16.00 |
19.60 |
13.00 |
1.85 |
8.00 |
29.00 |
4.14 |
2.01 |
|
16B-1/G1 |
25.40 |
15.88 |
8.28 |
39.70 |
17.02 |
4.00 |
3.00 |
21.00 |
29.10 |
15.40 |
1.60 |
6.00 |
58.00 |
8.28 |
3.83 |
|
16B-1/F1 |
25.40 |
15.88 |
8.28 |
39.70 |
17.02 |
4.00 |
3.00 |
21.00 |
29.10 |
15.40 |
1.60 |
6.00 |
58.00 |
8.28 |
3.83 |
|
20B-1/G1 |
31.75 |
19.05 |
10.19 |
48.00 |
19.56 |
4.50 |
3.50 |
26.40 |
36.00 |
21.00 |
3.50 |
6.00 |
85.00 |
12.14 |
6.19 |
|
24B-1/G1 |
38.10 |
25.40 |
14.63 |
63.40 |
25.40 |
6.00 |
5.00 |
33.40 |
47.00 |
28.00 |
4.50 |
6.00 |
160.00 |
22.85 |
11.25 |
