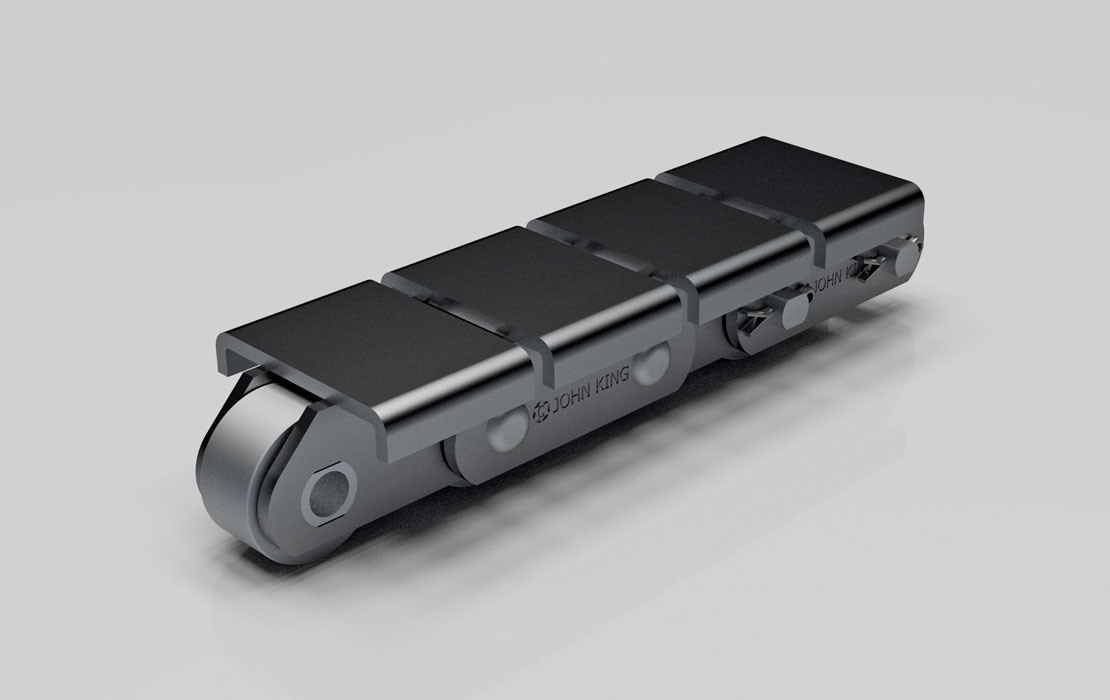

FVT Deep Link Chains with Top Plates |
|||||||||||||||
Chain |
Pitch |
Roller |
Over-All Pin |
Between |
Sidebars |
K |
C |
A |
S3 |
X |
Ultimate Breaking Load |
Maximum Allowable Load |
Weight |
||
Diameter |
Thickness |
Height |
|||||||||||||
P |
D2 |
F1 |
L |
S |
H |
H1 |
|||||||||
mm |
kN |
kN |
kg/m |
||||||||||||
FVT40/C/S3/RT59.5 |
40 |
32 |
37.5 |
18 |
3 |
35 |
22.0 |
59.5 |
32 |
26.0 |
4 |
15 |
54 |
7.71 |
7.4 |
FVT40/C/S4/RT59.5 |
40 |
32 |
40.7 |
18 |
4 |
35 |
22.0 |
59.5 |
32 |
26.0 |
4 |
15 |
40 |
5.71 |
8.4 |
FVT90/C/RT80 |
63 |
48 |
51.9 |
25 |
5 |
45 |
27.5 |
80 |
55 |
32.5 |
5 |
15 |
107 |
15.28 |
14.5 |
