Steel Bushed Water Ride Chains
Steel Bushed Water Ride Chains

Steel Bushed Water Ride Chains

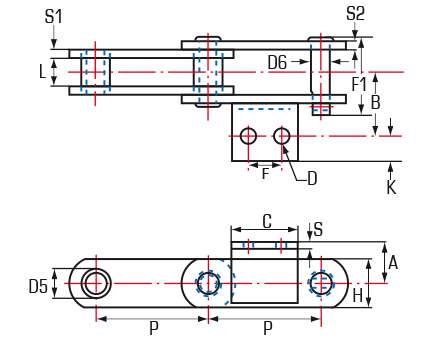

Chain
Number

P

Working
Load

Average
Tensile
Strength

Average
Weight

Bushing

Between
Sidebars

Sidebars

Pins

B

K

S

D

A

F

C

Outside Diameter

Thickness

Height

Diameter

Length

D5

L

S1

S2

H

D6

F1

inches

lbs

lbs/ft

inches

D2590

4.000

3,400

16,000

4.800

0.940

0.830

0.190

0.190

1.500

0.750

2.330

1.750

0.730

0.190

0.420

1.250

1.250

2.620

D2593

6.000

8,350

55,000

12.100

1.500

1.500

0.375

0.375

2.500

1.000

4.280

2.870

0.730

0.375

0.546

2.000

1.500

2.750

D4525

6.000

9,200

116,000

14.200

1.500

1.500

0.500

0.375

2.500

1.000

4.172

3.375

1.328

0.375

0.781

2.250

1.750

3.500

D4665

6.300

13,700

137,000

21.000

1.732

2.795

0.472

0.472

2.756

1.260

6.378

3.700

1.831

0.394

0.512

2.560

6.378

4.331
