Welded Steel Chains for Feed and Washing Tables
Have questions or need a quote?
Get in touch with the team today.
King Welded Steel Chain is exclusively manufactured in the WH fully heat treated specification to ensure maximum performance in high duty sugar mill applications.

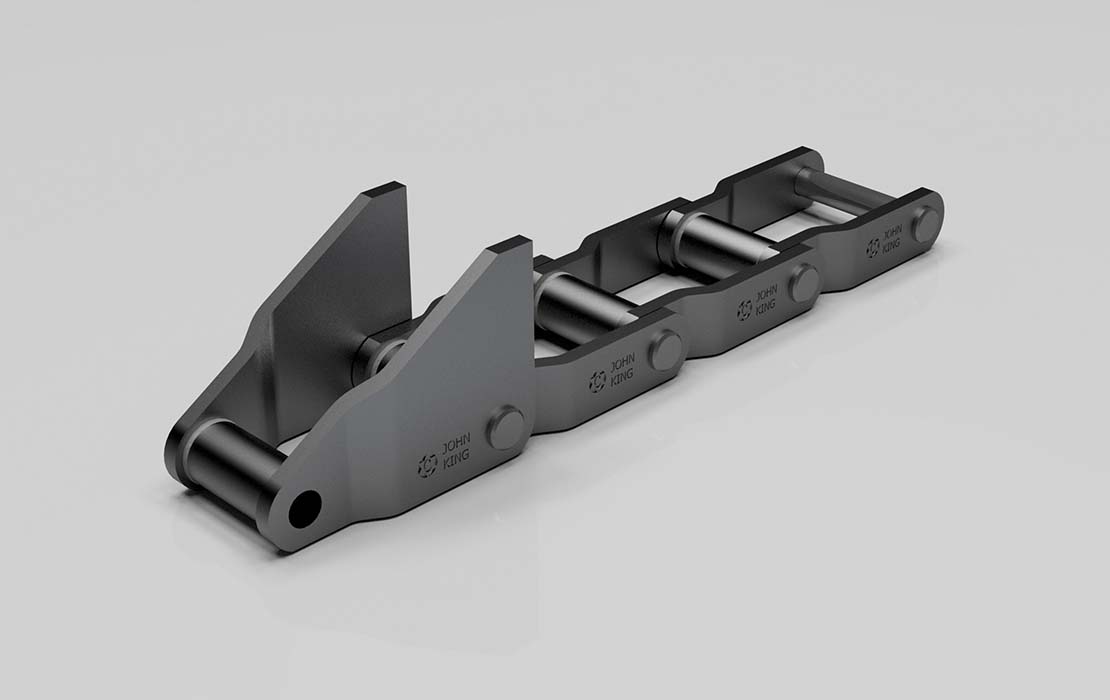

Generally employed on feed and washing tables the chain utilises an S1 pusher although other attachments can be employed.
John King uniquely offer an up-rated IBR specification utilising induction hardened pin and bush for best performance.
|
Welded Steel Chains for Feed and Washing Tables |
|||||||||||||||
|
Chain |
Units |
Pitch |
Bushings |
Pins |
Overall Width |
Bearing Width |
Between Sidebars |
Sidebars |
S1 Attachment Dimensions |
Working Load |
Breaking Load |
Weight |
|||
|
Thickness |
Height |
||||||||||||||
|
Diameter |
|||||||||||||||
|
P |
D5 |
D6 |
F1 |
B |
L |
S |
H |
C |
A |
A1 |
|||||
|
WH78R |
mm |
66.30 |
22.20 |
12.70 |
78.20 |
50.80 |
25.40 |
6.40 |
31.80 |
12.70 |
88.90 |
101.60 |
1,350 kg |
15,000 kg |
5.70 kg/m |
|
in |
2.61 |
0.88 |
0.50 |
3.00 |
2.00 |
1.00 |
0.25 |
1.25 |
0.50 |
3.50 |
4.00 |
3,000 lb |
33,000 lb |
3.80 lb/ft |
|
|
WH82R |
mm |
78.10 |
27.00 |
14.30 |
84.10 |
57.20 |
34.90 |
6.40 |
31.80 |
12.70 |
85.60 |
101.60 |
2,000 kg |
16,400 kg |
6.00 kg/m |
|
in |
3.08 |
1.06 |
0.56 |
3.31 |
2.25 |
1.38 |
0.25 |
1.25 |
0.50 |
3.37 |
4.00 |
4,400 lb |
36,000 lb |
4.00 lb/ft |
|
|
WH124R |
mm |
101.60 |
31.80 |
19.10 |
108.00 |
74.40 |
38.10 |
9.50 |
88.10 |
24.50 |
95.30 |
114.30 |
3,350 kg |
26,000 kg |
11.70 kg/m |
|
in |
4.00 |
1.25 |
0.75 |
4.25 |
2.81 |
1.50 |
0.38 |
1.50 |
1.00 |
3.75 |
4.50 |
7,350 lb |
57,000 lb |
8.50 lb/ft |
|
|
WH124XDR |
mm |
103.20 |
41.10 |
25.40 |
120.60 |
76.20 |
41.10 |
12.70 |
50.80 |
25.40 |
95.30 |
120.70 |
4,773 kg |
45,455 kg |
21.90 kg/m |
|
in |
4.06 |
1.62 |
1.00 |
4.75 |
3.00 |
1.62 |
0.50 |
2.00 |
1.00 |
3.75 |
4.75 |
10,500 lb |
100,000 lb |
14.70 lb/ft |
|
|
WH111R |
mm |
120.90 |
31.80 |
19.10 |
104.80 |
122.20 |
47.60 |
9.50 |
88.10 |
25.40 |
107.90 |
127.00 |
3,800 kg |
27,000 kg |
14.20 kg/m |
|
in |
4.76 |
1.25 |
0.75 |
4.81 |
4.81 |
1.88 |
0.38 |
1.50 |
1.00 |
4.25 |
5.00 |
8,850 lb |
60,000 lb |
9.50 lb/ft |
|
|
WH106R |
mm |
152.40 |
31.80 |
19.10 |
108.00 |
71.40 |
38.10 |
9.50 |
88.10 |
25.40 |
95.30 |
114.30 |
3,350 kg |
27,000 kg |
10.40 kg/m |
|
in |
6.00 |
1.25 |
0.75 |
4.25 |
2.81 |
1.50 |
0.38 |
1.50 |
1.00 |
3.75 |
4.50 |
7,350 lb |
60,000 lb |
7.00 lb/ft |
|
|
WH110R |
mm |
152.40 |
31.70 |
19.05 |
117.30 |
76.20 |
47.70 |
9.65 |
31.70 |
25.40 |
95.30 |
114.30 |
3,580 kg |
31,360 kg |
10.70 kg/m |
|
in |
6.00 |
1.25 |
0.75 |
4.62 |
3.00 |
1.88 |
0.38 |
1.25 |
1.00 |
3.75 |
4.50 |
7,875 lb |
69,000 lb |
7.20 lb/ft |
|
|
WH106XHDR |
mm |
153.60 |
41.10 |
25.40 |
123.90 |
76.20 |
41.10 |
12.70 |
50.80 |
25.40 |
95.30 |
120.70 |
4,770 kg |
52,270 kg |
17.60 kg/m |
|
in |
6.05 |
1.62 |
1.00 |
4.88 |
3.00 |
1.62 |
0.50 |
2.00 |
1.00 |
3.75 |
4.75 |
10,500 lb |
111,000 lb |
11.80 lb/ft |
|
|
WH132R |
mm |
153.70 |
44.50 |
25.40 |
158.80 |
112.30 |
73.00 |
12.70 |
50.80 |
25.40 |
127.00 |
152.40 |
6,800 kg |
55,400 kg |
21.20 kg/m |
|
in |
6.05 |
1.75 |
1.00 |
6.25 |
4.42 |
2.88 |
0.50 |
2.00 |
1.00 |
5.00 |
6.00 |
15,000 lb |
122,000 lb |
14.20 lb/ft |
|
|
WH150R |
mm |
153.67 |
41.10 |
25.40 |
158.70 |
111.20 |
76.20 |
12.70 |
63.50 |
29.50 |
133.40 |
165.10 |
6,950 kg |
52,700 kg |
25.10 kg/m |
|
in |
6.05 |
1.62 |
1.00 |
6.25 |
4.38 |
3.00 |
0.50 |
2.50 |
1.16 |
5.25 |
6.50 |
15,300 lb |
116,000 lb |
16.80 lb/ft |
|
|
WH155R |
mm |
153.67 |
41.10 |
28.40 |
158.70 |
111.20 |
73.20 |
12.70 |
63.50 |
38.10 |
133.40 |
165.10 |
8,270 kg |
68,640 kg |
29.40 kg/m |
|
in |
6.05 |
1.62 |
1.12 |
6.25 |
4.38 |
2.88 |
0.50 |
2.50 |
1.50 |
5.25 |
6.50 |
18,200 lb |
151,000 lb |
19.70 Ib/ft |
|
|
WH150XHDR |
mm |
153.67 |
41.10 |
28.40 |
171.40 |
117.30 |
76.20 |
15.70 |
63.50 |
25.40 |
139.30 |
171.40 |
8,270 kg |
73,182 kg |
29.40 kg/m |
|
in |
6.05 |
1.62 |
1.12 |
6.75 |
4.62 |
3.00 |
0.62 |
2.50 |
1.00 |
5.50 |
6.75 |
18,200 lb |
161,000 lb |
19.70 lb/ft |
|
