Crank Link Steel Bush Series for Intercarriers
Have questions or need a quote?
Get in touch with the team today.

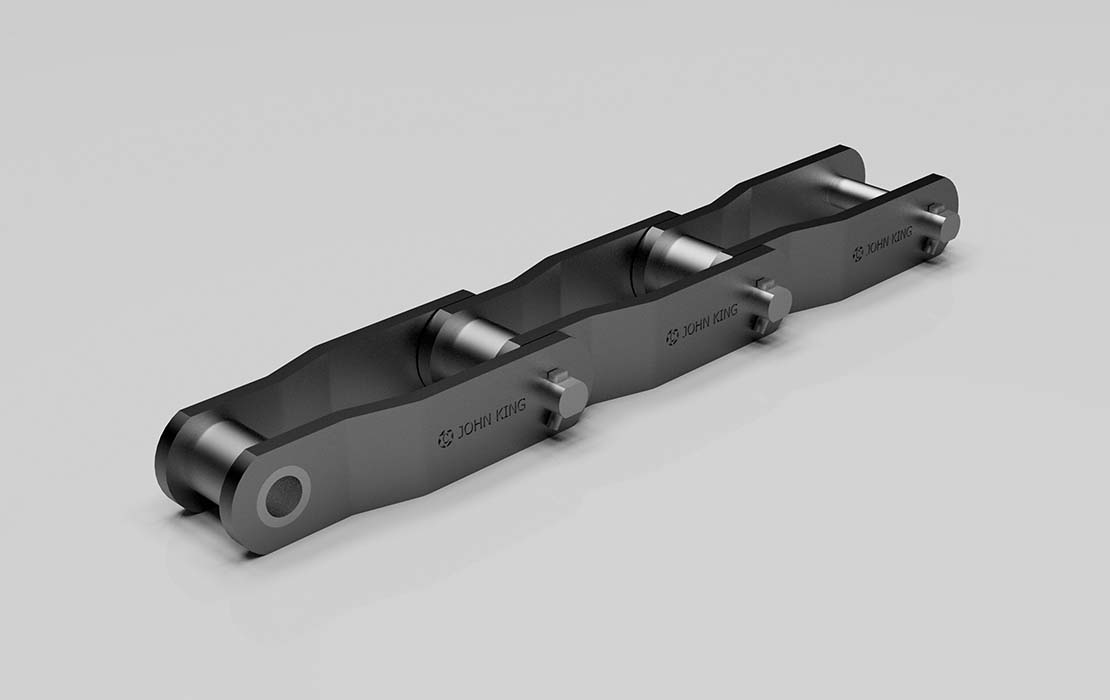

The JKB series was developed for Megasse and Bagasse handling within cane sugar processing. The chain is generally employed, but not exclusively, with F style attachment to allow a flight bar to be mounted across the chains. The flight bar will incorporate a wear shoe so the chain does not come into contact directly with wear strips or conveyor deck. The chain is purely the haulage member and it does not therefore have a need for a carrier roller. The simplified bush construction with standard or stainless round parts has proven to offer extended and economic performance.
|
Crank Link Steel Bush Series for Intercarriers |
|||||||||||||
|
Chain |
Chain Standard |
|
Pitch |
Bush Diameter |
Pin Diameter |
Between Sidebars |
Sidebar Height |
Sidebar Thickness |
Over Pin |
Working Load |
Breaking Load |
Weight |
|
|
P |
D5 |
D6 |
L |
H |
S |
F1 |
F2 |
||||||
|
JKB160 |
BOP |
mm |
160.00 |
48.00 |
25.40 |
56.00 |
57.30 |
9.50 |
56.00 |
66.00 |
3,100 kg |
34,600 kg |
17.50 kg/m |
|
in |
6.30 |
1.89 |
1.00 |
2.20 |
2.25 |
0.37 |
2.20 |
2.56 |
6,850 lb |
76,120 lb |
11.74 lb/ft |
||
|
JKB160A |
BOP |
mm |
160.00 |
48.00 |
25.40 |
56.00 |
63.50 |
9.50 |
56.00 |
66.00 |
4,730 kg |
45,500 kg |
19.20 kg/m |
|
in |
6.30 |
1.89 |
1.00 |
2.20 |
2.50 |
0.37 |
2.20 |
2.56 |
10,400 lb |
100,000 lb |
12.88 lb/ft |
||
|
JKB200 |
BOP |
mm |
200.00 |
48.00 |
25.40 |
56.00 |
57.20 |
9.50 |
56.00 |
66.00 |
3,100 kg |
34,600 kg |
15.50 kg/m |
|
in |
7.87 |
1.89 |
1.00 |
2.20 |
2.25 |
0.37 |
2.20 |
2.56 |
6,850 lb |
76,120 lb |
10.39 lb/ft |
||
|
JKB200A |
BOP |
mm |
200.00 |
48.00 |
25.40 |
56.00 |
63.50 |
9.50 |
56.00 |
66.00 |
4,730 kg |
45,500 kg |
17.40 kg/m |
|
in |
7.87 |
1.89 |
1.00 |
2.20 |
2.50 |
0.37 |
2.20 |
2.56 |
10,400 lb |
100,000 lb |
11.67 lb/ft |
||
|
JKB37291J |
Donelly |
mm |
152.40 |
50.80 |
25.40 |
50.00 |
76.20 |
12.70 |
55.90 |
67.10 |
4,730 kg |
45,500 kg |
24.60 kg/m |
|
in |
6.00 |
2.00 |
1.00 |
1.96 |
3.00 |
0.50 |
2.20 |
2.64 |
10,400 lb |
100,000 lb |
16.50 lb/ft |
||
|
JKB6050* |
Donelly |
mm |
153.70 |
49.00 |
25.40 |
50.00 |
76.20 |
12.70 |
55.90 |
67.10 |
4,730 kg |
45,500 kg |
24.60 kg/m |
|
in |
6.05 |
1.93 |
1.00 |
1.96 |
3.00 |
0.50 |
2.20 |
2.64 |
10,400 lb |
100,000 lb |
16.50 lb/ft |
||
|
JKB37291SJ |
Donelly |
mm |
152.40 |
50.80 |
25.40 |
50.00 |
76.20 |
12.70 |
62.20 |
73.40 |
4,730 kg |
45,500 kg |
24.60 kg/m |
|
in |
6.00 |
2.00 |
1.00 |
1.96 |
3.00 |
0.50 |
2.44 |
2.88 |
10,400 lb |
100,000 lb |
16.50 lb/ft |
||
|
JKB2084HD |
Donelly |
mm |
125.40 |
76.20 |
23.80 |
66.80 |
63.50 |
12.70 |
73.90 |
64.30 |
5,420 kg |
45,500 kg |
30.70 kg/m |
|
in |
6.00 |
3.00 |
0.94 |
2.63 |
2.50 |
0.50 |
2.91 |
2.53 |
11,920 lb |
100,000 lb |
20.50 lb/ft |
||
*STR – Straight side bar
