Cobra style Chain for Main Cane and Auxilliary Carrier Chains

Visit also

Precision laser cutting and fabrication service

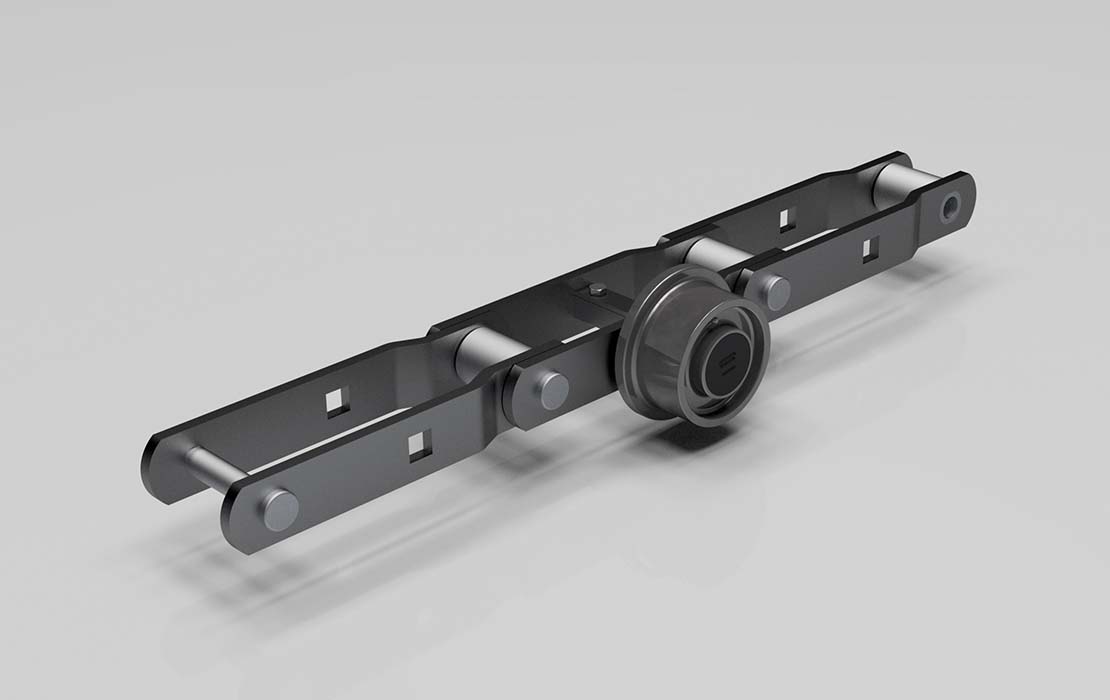

This most advanced design has obviated some of the traditional problems associated with the operation of cane carriers. Of robust construction, the “Cobra” style chain with outboard rollers offers the best impact resistance, load bearing capacity, ease of maintenance and extended service life. All components in addition to chain are available in this series including outboard rollers, pan support brackets, axles and slats.

Cobra style Chain for Main Cane and Auxilliary Carrier Chains
Cobra style Chain for Main Cane and Auxilliary Carrier Chains
Cobra style Chain for Main Cane and Auxilliary Carrier Chains - drawing

Cobra style Chain for Main Cane and Auxilliary Carrier Conveyors

Chain Number

Pitch

Roller Diameter

Bush Diameter

Pin Diameter

Between Sidebars

Sidebars Height

Sidebars Thickness

Overall width

Square Hole

Working Load

Breaking Load

Weight

P

D2

D5

D6

L

H

S

F

M14

JKR2397

M14

mm

304.80

44.45

31.75

22.40

55.60

63.50

9.52

119.85

19.05

4,200 kg

40,900 kg

14.16 kg/m

in

12.00

1.75

1.25

0.88

2.18

2.50

0.38

4.71

0.75

9,420 lb

90,000 lb

9.79 lb/ft

JKR2358

M14

mm

228.60

44.60

31.75

22.40

49.30

63.50

12.70

123.95

25.40

4,091 kg

45,455 kg

15.20 kg/m

in

9.00

1.75

1.25

0.88

1.94

2.50

0.50

4.88

1.00

14,000 lb

100,000 lb

10.20 lb/ft

JKR1706

M14

mm

304.80

57.20

38.10

25.40

76.20

63.50

12.70

148.30

25.40

6,364 kg

45,455 kg

6.00 kg/m

In

12.00

2.25

1.50

1.00

3.00

2.50

0.50

5.84

1.00

14,000 lb

100,000 lb

4.02 lb/ft

JKR2614

M14

mm

304.80

63.50

44.45

31.75

69.85

88.90

15.70

160.50

31.80

7,955 kg

61,364 kg

11.00 kg/m

in

12.00

2.50

1.75

1.25

2.75

3.50

0.62

6.31

1.25

17,000 lb

135,000 lb

73.70 lb/ft

JKR1227

M14

mm

304.80

79.38

47.63

38.10

70.60

101.60

15.70

161.50

31.80

10,091 kg

100,000 kg

12.00 kg/m

in

12.00

3.12

1.88

1.50

2.78

4.00

0.62

6.35

1.25

14,000 lb

220,000 lb

8.04 lb/ft

JKR2630

M14

mm

304.80

63.50

47.63

34.90

69.85

88.90

15.70

148.30

31.80

9,500 kg

135,000 kg

35.16 kg/m

in

12.00

2.50

1.88

1.37

2.75

3.50

0.62

5.84

1.25

35,000 lb

300,000 lb

23.58 lb/ft

JKR1223

M14

mm

304.80

88.90

47.63

38.10

104.60

101.60

15.70

195.58

31.80

15,909 kg

136,364 kg

45.80 kg/m

in

12.00

3.50

1.88

1.50

4.12

4.00

0.62

7.70

1.25

35,000 lb

300,000 lb

30.71 lb/ft

JKR2778

M14

mm

304.80

63.50

47.63

34.90

101.60

101.60

15.70

161.93

31.80

8,750 kg

147,700 kg

38.20 kg/m

in

12.00

2.50

1.88

1.37

4.00

4.00

0.62

6.37

1.25

19,250 lb

325,000 lb

25.62 lb/ft

JKR2648

M14

mm

304.80

82.55

55.62

41.28

92.08

101.60

19.05

197.60

31.80

13,454 kg

159,090 kg

53.52 kg/m

in

12.00

3.25

2.19

1.62

3.62

4.00

0.75

7.78

1.25

30,000 kg

350,000 lb

35.90 lb/ft

Note: Popular sizes illustrated. Full programme available.
