Main Cane and Auxilliary Carrier Chains
Have questions or need a quote?
Get in touch with the team today.

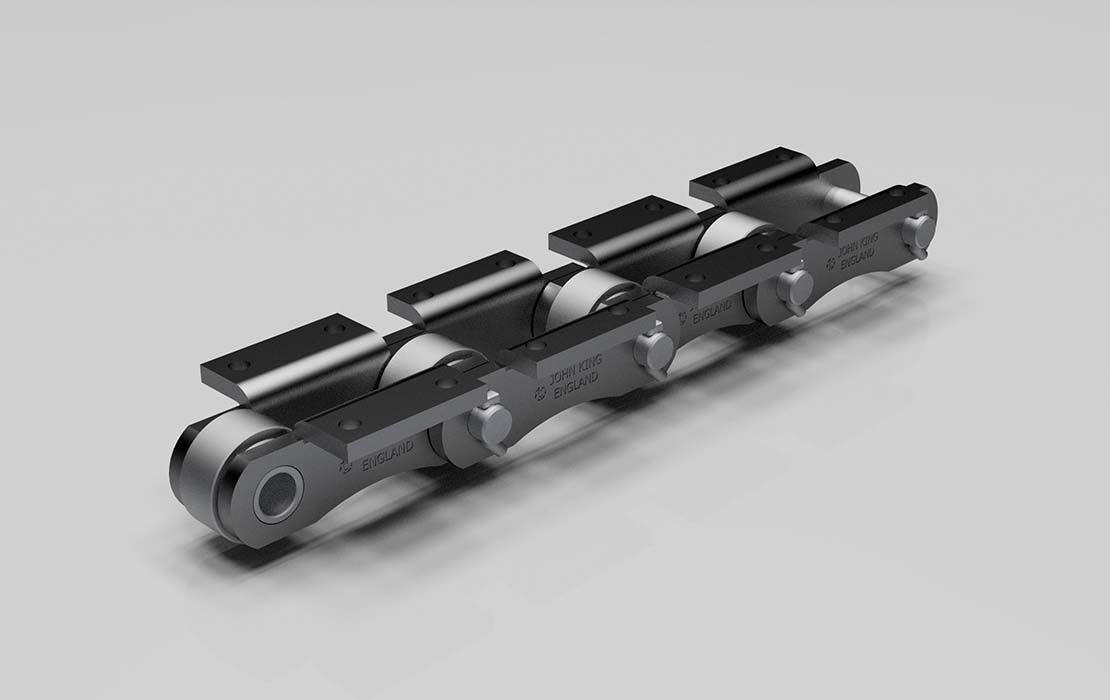

King cane carrier chains are fabricated engineering class chains designed to meet the most demanding service requrements in sugar mills. Experience allows King to select optimum materials and heat treatment conditions to maximise reliability and service life. “Climax” calibration during manufacture ensures accurate matching of strands for duplex or triplex operation.
|
Main Cane and Auxilliary Carrier Conveyors |
|||||||||||||||||
|
Chain |
Units |
Pitch |
Rollers |
Bushings |
Pins |
Between Sidebars |
Sidebars |
K2 Attachment Dimensions |
Bolt Diameter |
Working Load |
Breaking Load |
Weight |
|||||
|
Diameter |
Thickness |
Height |
|||||||||||||||
|
P |
D2 |
D5 |
D6 |
L |
S |
H |
A |
B |
C |
F |
K |
D |
|||||
|
JKR0904 |
mm |
101.60 |
50.80 |
25.40 |
17.50 |
50.80 |
7.90 |
44.50 |
31.75 |
88.90 |
101.66 |
59.95 |
104.90 |
10.00 |
2,200 kg |
18,200 kg |
13.75 kg/m |
|
in |
4.00 |
2.00 |
1.00 |
0.69 |
2.00 |
0.31 |
1.75 |
1.25 |
3.50 |
4.00 |
2.36 |
4.13 |
0.38 |
4,850 lb |
40,000 lb |
9.22 lb/ft |
|
|
JKR2124 |
mm |
152.40 |
69.85 |
28.70 |
19.05 |
38.90 |
9.70 |
50.80 |
41.14 |
111.30 |
114.30 |
76.20 |
142.70 |
12.80 |
2,750 kg |
28,636 kg |
17.60 kg/m |
|
in |
6.00 |
2.75 |
1.13 |
0.75 |
0.53 |
0.38 |
2.00 |
1.62 |
4.38 |
4.50 |
3.00 |
5.62 |
0.50 |
6,050 lb |
63,000 lb |
11.80 lb/ft |
|
|
JKR09060 |
mm |
152.40 |
69.85 |
28.70 |
19.10 |
38.10 |
9.70 |
50.80 |
111.30 |
111.30 |
114.30 |
76.20 |
171.45 |
– |
2,900 kg |
27,200 kg |
23.80 kg/m |
|
in |
6.00 |
2.75 |
1.13 |
0.75 |
1.50 |
0.38 |
2.00 |
1.63 |
4.38 |
4.50 |
3.00 |
6.75 |
– |
6,350 lb |
60,000 lb |
15.96 lb/ft |
|
|
JKR2129 |
mm |
228.60 |
82.50 |
33.02 |
19.05 |
37.10 |
9.50 |
57.20 |
44.95 |
146.00 |
152.40 |
101.60 |
208.70 |
15.24 |
3,300 kg |
30,000 kg |
29.65 kg/m |
|
in |
9.00 |
3.25 |
1.30 |
0.75 |
1.46 |
0.38 |
2.25 |
1.77 |
5.75 |
6.00 |
4.00 |
8.22 |
0.60 |
7,275 lb |
66,000 lb |
19.89 lb/ft |
|
|
JKR2315 |
mm |
228.60 |
76.20 |
38.10 |
22.40 |
43.00 |
9.50 |
63.50 |
44.95 |
152.40 |
177.80 |
139.70 |
211.00 |
13.97 |
3,500 kg |
32,000 kg |
25.36 kg/m |
|
in |
9.00 |
3.00 |
1.50 |
0.88 |
1.69 |
0.38 |
2.50 |
1.77 |
6.00 |
7.00 |
5.50 |
8.31 |
0.55 |
7,700 lb |
70,400 lb |
17.00 lb/ft |
|
|
JKR09061 |
mm |
152.40 |
69.85 |
28.70 |
19.10 |
38.10 |
9.70 |
57.20 |
41.40 |
111.30 |
114.30 |
76.20 |
165.10 |
12.70 |
2,900 kg |
38,600 kg |
25.60 kg/m |
|
in |
6.00 |
2.75 |
1.13 |
0.75 |
1.50 |
0.38 |
2.25 |
1.63 |
4.38 |
4.50 |
3.00 |
6.50 |
0.50 |
6,350 lb |
85,000 lb |
17.70 lb/ft |
|
|
JKR2178 |
mm |
152.40 |
69.85 |
31.08 |
22.40 |
38.90 |
9.65 |
57.15 |
41.14 |
111.30 |
114.30 |
76.20 |
142.70 |
12.70 |
3,227 kg |
38,650 kg |
22.80 kg/m |
|
in |
6.00 |
2.75 |
1.25 |
0.88 |
1.50 |
0.38 |
2.25 |
1.62 |
4.38 |
4.50 |
3.00 |
5.62 |
0.50 |
7,000 lb |
85,000 lb |
15.30 lb/ft |
|
|
JKR2800 |
mm |
203.20 |
88.90 |
38.10 |
25.40 |
45.97 |
12.70 |
69.85 |
55.37 |
131.50 |
127.00 |
82.50 |
183.40 |
15.74 |
4,454 kg |
42,727 kg |
39.10 kg/m |
|
in |
8.00 |
3.50 |
1.50 |
1.00 |
1.81 |
0.50 |
2.75 |
2.18 |
5.18 |
5.00 |
3.25 |
7.22 |
0.62 |
9,800 lb |
94,000 lb |
26.20 lb/ft |
|
|
JKR2198 |
mm |
152.40 |
69.85 |
33.02 |
22.40 |
38.10 |
12.70 |
57.15 |
41.14 |
111.30 |
114.60 |
76.20 |
152.40 |
12.70 |
3,480 kg |
45,460 kg |
27.10 kg/m |
|
in |
6.00 |
2.75 |
1.30 |
0.88 |
1.50 |
0.50 |
2.25 |
1.62 |
4.38 |
4.50 |
3.00 |
6.00 |
0.50 |
8,300 lb |
100,000 lb |
18.21 lb/ft |
|
|
JKR1796 |
mm |
152.40 |
69.85 |
38.10 |
22.40 |
38.10 |
9.70 |
57.20 |
41.40 |
111.30 |
114.30 |
76.20 |
165.10 |
12.70 |
3,480 kg |
45,460 kg |
25.00 kg/m |
|
in |
6.00 |
2.75 |
1.50 |
0.87 |
1.50 |
0.38 |
2.25 |
1.63 |
4.38 |
4.50 |
3.00 |
6.50 |
0.50 |
8,300 lb |
100,000 lb |
16.77 lb/ft |
|
|
JKR2801 |
mm |
203.10 |
88.90 |
38.10 |
25.40 |
66.30 |
9.70 |
69.85 |
60.50 |
152.40 |
146.10 |
82.60 |
187.55 |
16.00 |
5,409 kg |
50,900 kg |
44.70 kg/m |
|
in |
8.00 |
3.50 |
1.50 |
1.00 |
2.61 |
0.38 |
2.75 |
2.38 |
6.00 |
5.75 |
3.25 |
7.38 |
0.62 |
11,900 lb |
112,000 kg |
30.00 lb/ft |
|
|
JKR09063 |
mm |
152.40 |
76.20 |
31.80 |
23.90 |
38.10 |
9.70 |
63.50 |
44.50 |
111.30 |
114.30 |
76.20 |
153.90 |
12.70 |
3,800 kg |
63,500 kg |
39.00 kg/m |
|
in |
6.00 |
3.00 |
1.25 |
0.94 |
1.50 |
0.38 |
2.50 |
1.75 |
4.38 |
4.50 |
3.00 |
6.06 |
0.50 |
8,300 lb |
140,000 lb |
26.20 lb/ft |
|
|
JKR2804 |
mm |
203.20 |
108.00 |
47.63 |
38.10 |
92.50 |
12.70 |
88.90 |
69.90 |
193.50 |
146.10 |
82.60 |
237.20 |
16.00 |
11,045 kg |
68,200 kg |
70.10 kg/m |
|
in |
8.00 |
4.25 |
1.88 |
1.50 |
3.64 |
0.50 |
3.50 |
2.75 |
7.62 |
5.75 |
3.25 |
9.34 |
0.62 |
24,300 lb |
150,000 lb |
47.00 Ib/ft |
|
|
JKR9066 |
mm |
152.40 |
76.20 |
38.10 |
26.90 |
63.50 |
12.70 |
60.50 |
42.90 |
136.70 |
114.30 |
76.20 |
187.55 |
12.70 |
4,230 kg |
72,700 kg |
40.70 kg/m |
|
in |
6.00 |
3.00 |
1.50 |
1.06 |
2.50 |
0.50 |
2.38 |
1.69 |
5.38 |
4.50 |
3.00 |
7.38 |
0.50 |
9,300 lb |
160,000 lb |
27.30 lb/ft |
|
|
JKR9065 |
mm |
152.40 |
76.20 |
38.10 |
26.90 |
38.10 |
12.70 |
60.50 |
42.90 |
111.30 |
114.30 |
76.20 |
165.10 |
12.70 |
4,230 kg |
72,700 kg |
40.70 kg/m |
|
in |
6.00 |
3.00 |
1.50 |
1.06 |
1.50 |
0.50 |
2.38 |
1.69 |
4.38 |
4.50 |
4.38 |
6.50 |
0.50 |
9,300 lb |
160,000 lb |
27.30 lb/ft |
|
Roller Diameter D2 can be changed to suit customer requirements.
All STR style with K2 attachment.
JKR2315 – K3 attachment.
