Juice Strainer and Trash Conveyor Chains
Have questions or need a quote?
Get in touch with the team today.

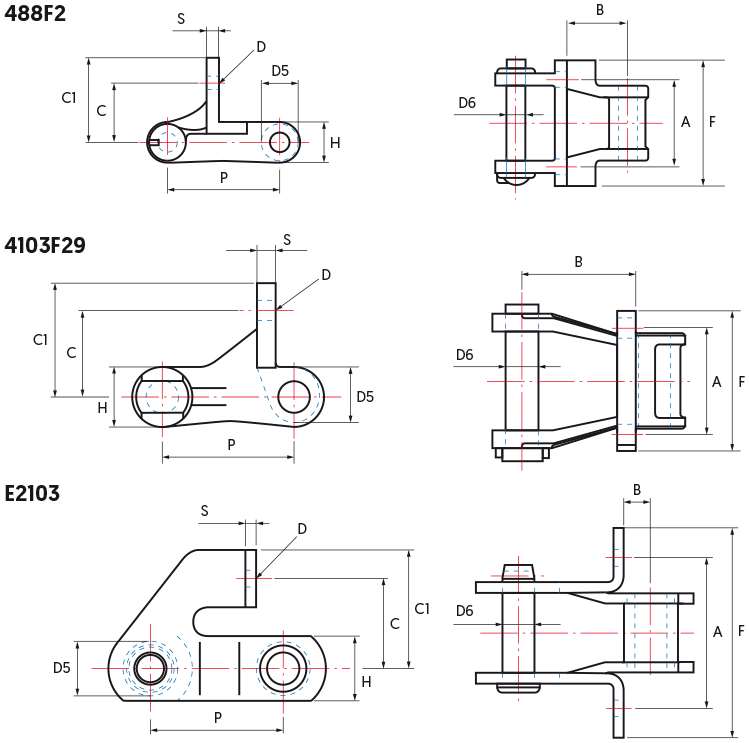

Cast pintle chains have been the traditional selection for juice strainers and trash elevators. Engineered steel chains have also been developed as a direct alternative. (E.g. 4103 F29 and E2103) to allow for higher mechanical characteristic and enhanced corrosion resistance. In addition Kings plastic division offer non-metallic alternatives that have proven performance in similar applications.
|
Juice Strainer and Trash Conveyor Chains |
|||||||||||||||||
|
Chain |
Units |
Pitch |
Bushing |
Pins |
Sidebars |
A |
B |
C |
C1 |
F |
Bolt Diameter |
Breaking Load |
Breaking Strength |
Weight |
|||
|
Diameter |
Thickness |
Height |
|||||||||||||||
|
P |
D5 |
D6 |
S |
H |
D |
||||||||||||
|
dia. |
length |
Plain |
F2/29 |
||||||||||||||
|
JKC488F2 |
mm |
66.30 |
22.40 |
11.20 |
77.70 |
8.00 |
25.40 |
51.60 |
36.10 |
35.10 |
50.80 |
73.90 |
7.90 |
820 kg |
5,000 kg |
5.20 kg/m |
9.20 kg/m |
|
in |
2.61 |
0.88 |
0.44 |
3.06 |
0.31 |
1.00 |
2.03 |
1.42 |
1.38 |
2.00 |
2.94 |
0.31 |
1,800 lb |
11,000 lb |
3.49 lb/ft |
6.18 lb/ft |
|
|
JKC4103F29 |
mm |
78.00 |
31.80 |
19.00 |
92.20 |
11.00 |
38.10 |
62.00 |
67.10 |
50.80 |
67.10 |
83.30 |
12.70 |
1,600 kg |
10,000 kg |
9.20 kg/m |
13.10 kg/m |
|
in |
3.07 |
1.25 |
0.75 |
3.63 |
0.44 |
1.50 |
2.44 |
2.64 |
2.02 |
2.64 |
3.00 |
0.50 |
3,500 lb |
22,000 lb |
6.18 lb/ft |
8.80 lb/ft |
|
|
JKC4103F30 |
mm |
78.00 |
31.80 |
19.00 |
92.20 |
11.00 |
38.10 |
62.00 |
62.00 |
50.80 |
67.10 |
83.30 |
12.70 |
1,600 kg |
10,000 kg |
9.20 kg/m |
13.10 kg/m |
|
in |
3.07 |
1.25 |
0.75 |
3.63 |
0.44 |
1.50 |
2.44 |
2.44 |
2.02 |
2.64 |
3.00 |
0.50 |
3,500 lb |
22,000 lb |
6.18 lb/ft |
8.80 lb/ft |
|
|
E2103 |
mm |
78.00 |
31.80 |
19.00 |
79.50 |
6.40 |
38.10 |
88.90 |
16.00 |
53.10 |
69.90 |
124.00 |
10.00 |
2,200 kg |
13,100 kg |
8.80 kg/m |
13.90 kg/m |
|
in |
3.07 |
1.25 |
0.75 |
3.13 |
0.25 |
1.50 |
3.50 |
0.63 |
2.09 |
2.75 |
4.88 |
0.40 |
4,900 lb |
40,000 lb |
5.91 lb/ft |
9.34 lb/ft |
|
