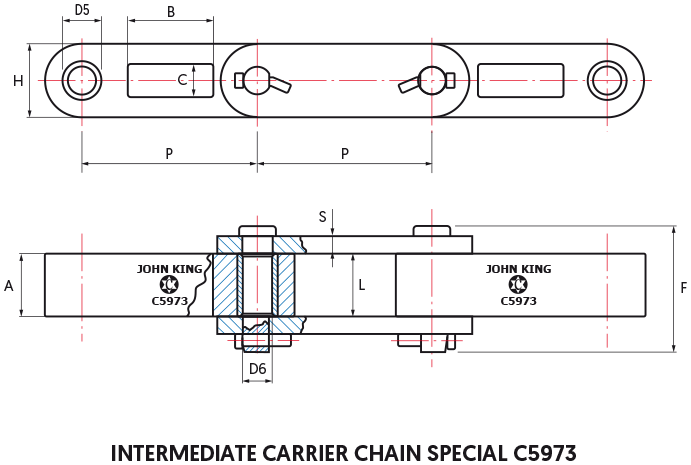

This new generation Intermediate Carrier Chain is a ‘roller less’ block link chain of robust and simple construction. Pin and bush from heat-treated Martensitic stainless steel, side plates from carbon steel, cast block link secondary heat treated JK/HT1. This austempered ductile iron offers optimum mechanical properties and strength weight ratio whilst exhibiting work hardening qualities.
|
Intermediate Carrier Chains Block and Bar Style |
|||||||||||||
|
Chain |
Units |
Pitch |
Bushing |
Pins |
Over Pin |
Between Sidebars |
Sidebars |
A |
B |
C |
Working Load |
Breaking Load |
|
|
Diameter |
Thickness |
Height |
|||||||||||
|
P |
D5 |
D6 |
F |
L |
S |
H |
|||||||
|
BL09060 |
mm |
152.40 |
28.70 |
19.05 |
85.00 |
48.00 |
10.00 |
50.80 |
39.00 |
75.00 |
28.00 |
2,000 kg |
27,200 kg |
|
in |
6.00 |
1.13 |
0.75 |
3.35 |
1.50 |
0.38 |
2.00 |
1.50 |
2.95 |
1.10 |
4,400 lb |
60,000 lb |
|
|
BL1796 |
mm |
152.40 |
31.75 |
22.10 |
95.80 |
50.80 |
10.00 |
60.00 |
49.50 |
75.00 |
28.00 |
2,550 kg |
45,500 kg |
|
in |
6.00 |
1.25 |
0.87 |
3.77 |
2.00 |
0.38 |
2.25 |
1.95 |
2.95 |
1.10 |
5,600 lb |
100,000 lb |
|
|
BL09063 |
mm |
152.40 |
31.75 |
23.88 |
100.00 |
55.00 |
10.00 |
60.00 |
54.00 |
75.00 |
28.00 |
3,300 kg |
63,600 kg |
|
in |
600.00 |
1.25 |
0.97 |
3.93 |
2.18 |
0.41 |
2.38 |
2.83 |
2.95 |
1.10 |
7,200 lb |
140,000 lb |
|
|
BL5973 |
mm |
152.40 |
34.50 |
25.40 |
110.00 |
55.00 |
15.00 |
65.00 |
54.00 |
75.00 |
28.00 |
3,300 kg |
63,600 kg |
|
in |
600.00 |
1.36 |
1.00 |
4.35 |
2.18 |
0.59 |
2.50 |
2.17 |
2.95 |
1.10 |
7,200 lb |
140,000 lb |
|
