Drop Forged Chains for Feed and Washing Tables

Have questions or need a quote?

Get in touch with the team today.

Get in Touch

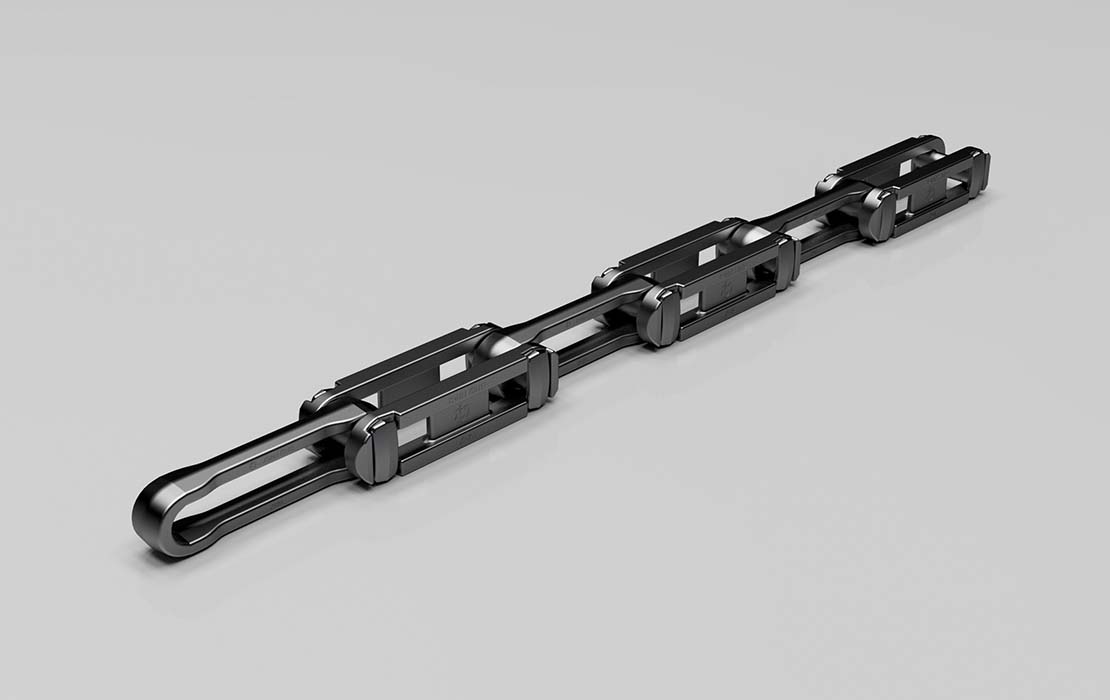

This chain of robust and simple construction makes it most suitable in cane in feed conveyors. The chain can be turned to provide new sliding surfaces and pin rotated 180 degrees allowing unworn diameter to contact with inner link, thus increasing the effective life of the chain. Normally components are from heat treated high alloy steel and sold under the MAXITUFF brand.

Drop Forged Chains for Feed and Washing Tables
Drop Forged Chains for Feed and Washing Tables
Drop Forged Chains for Feed and Washing Tables - drawing

Drop Forged Chains for Feed and Washing Tables

Chain
Number

Pitch

Pin Diameter

Between Sidebars

Sidebar
Height

Sidebar Thickness

Overall Width

Breaking Load

Weight

P

D6

L

H

S

F

X348

mm

76.60

12.70

19.10

27.00

12.70

44.50

10,100 kg

3.28 kg/m

in

3.02

0.50

0.75

1.06

0.50

1.75

24,000 lb

2.20 lb/ft

X458

mm

102.40

15.90

26.20

34.90

15.90

57.20

21,800 kg

4.80 kg/m

in

4.03

0.63

1.03

1.38

0.63

2.25

48,000 lb

3.21 lb/ft

X678

mm

153.20

22.20

33.30

50.10

22.20

76.20

56,800 kg

9.98 kg/m

in

6.03

0.88

1.31

2.00

0.88

3.00

125,000 lb

6.69 lb/ft

698

mm

153.20

28.58

39.70

68.30

25.40

95.30

80,000 kg

17.00 kg/m

in

6.03

1.125

1.56

2.69

1.00

3.75

175,000 lb

11.40 lb/ft

998

mm

229.40

28.58

39.70

68.30

98.40

95.30

68,000 kg

13.40 kg/m

in

9.03

1.125

1.56

2.69

3.88

3.75

150,000 lb

8.99 lb/ft
