Diffuser Chains – Block and Bar Construction

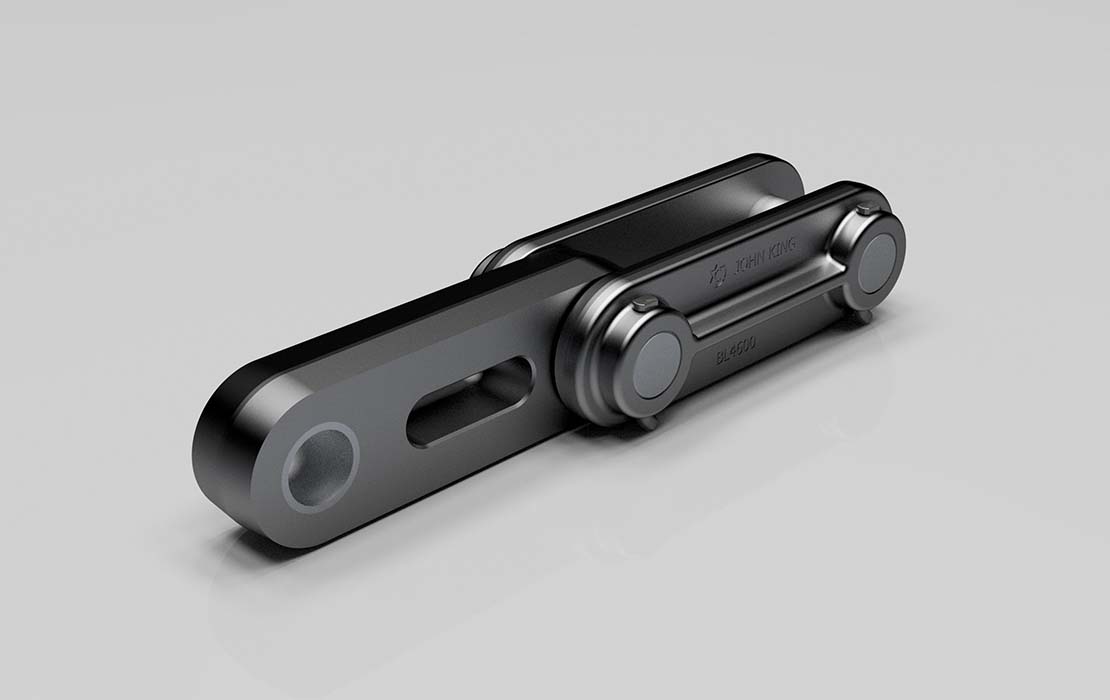

Diffuser Chains – Block and Bar Construction
Diffuser Chains – Block and Bar Construction - drawing

Diffuser Chains – Block and Bar Construction

Chain
Number

Pitch

Bush Diameter

Pin
Diameter

Between Sidebars

Sidebar Height

Sidebar Thickness

A

B

C

Over Pin

Breaking
Strength

P

D5

D6

L

H

S

F

BL4309/T1

mm

250.00

56.00

47.00

62.00

80.00

20.00

111.00

60.00

35.00

150.00

175,000 kg

in

9.84

2.20

1.85

2.44

3.15

0.75

4.37

2.36

1.38

5.90

385,000 lb

BL4309/T2

mm

250.00

51.00

42.00

43.00

80.00

12.00

111.00

40.00

35.00

100.00

64,240 kg

in

9.84

2.00

1.65

1.69

3.15

0.50

4.37

1.57

1.38

3.94

141,323 lb

BL4600

mm

250.00

58.00

49.00

66.00

110.00

47.00

111.00

60.00

35.00

30.00

224,300 kg

in

9.84

2.28

1.93

2.60

4.33

1.85

4.37

2.36

1.38

1.18

493,460 lb

BL4961

mm

300.00

71.90

60.00

68.00

130.00

31.00

125.00

60.00

25.00

157.50

345,000 kg

in

11.80

2.83

2.36

2.68

5.12

1.22

4.92

2.36

1.00

6.20

759,000 lb

BL5032

mm

443.60

127.80

50.80

74.60

127.80

37.30

101.60

123.80

31.80

181.00

338,000 kg

in

17.50

5.00

2.00

2.94

5.00

1.47

4.00

4.87

1.25

7.13

743,600 lb
