Intercarrier – Special Types
Have questions or need a quote?
Get in touch with the team today.

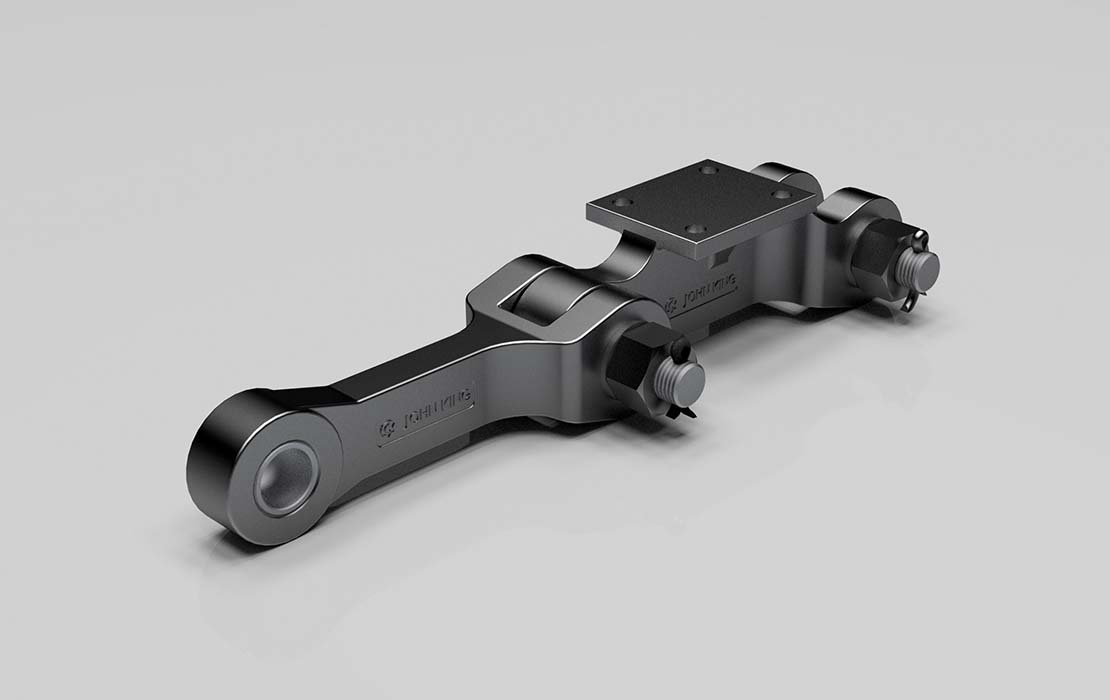

Kings unique ability to produce bespoke chains convering the whole spectrum of construction, material and manufacturing processes allows the company to offer direct replacements to non-standard chains. This series is a good demonstration of this where the link is produced as a high carbon steel casting with alloy steel heat treated liner bush and bolted construction. In this process there is always the opportunity to introduce improvements for improved performance and cost effectiveness. Where requested this series can be offered as a forging complete with welded K4 top plate.
|
Intercarrier – Special Types |
||||||||||||
|
Chain |
Units |
Pitch |
Bushing |
Pins |
Height |
K4 Attachment Dimensions |
Bolt Diameter |
Breaking |
||||
|
Diameter |
||||||||||||
|
P |
D5 |
D6 |
H |
A |
B |
C |
E |
F |
D |
|||
|
JK229 |
mm |
228.60 |
35.05 |
41.40 |
69.85 |
101.60 |
50.08 |
139.70 |
79.38 |
130.18 |
16.00 |
60,000 kg |
|
in |
9.00 |
1.38 |
1.63 |
2.75 |
4.00 |
2.00 |
5.50 |
3.13 |
5.13 |
0.63 |
132,000 lb |
|
|
JK305 |
mm |
304.80 |
45.45 |
57.15 |
101.60 |
107.95 |
74.62 |
187.45 |
92.08 |
127.00 |
16.00 |
88,200 kg |
|
in |
12.00 |
1.75 |
2.25 |
4.00 |
4.25 |
2.94 |
7.38 |
3.63 |
5.00 |
0.63 |
194,000 lb |
|
