Feeder Breaker Chains
Have questions or need a quote?
Get in touch with the team today.

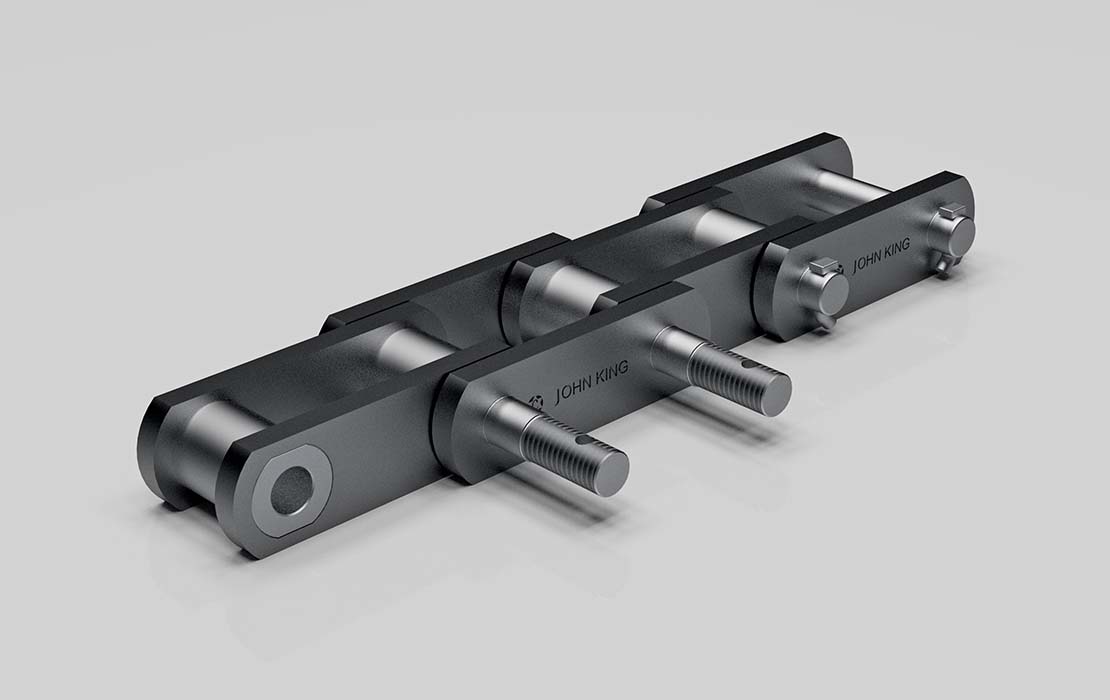

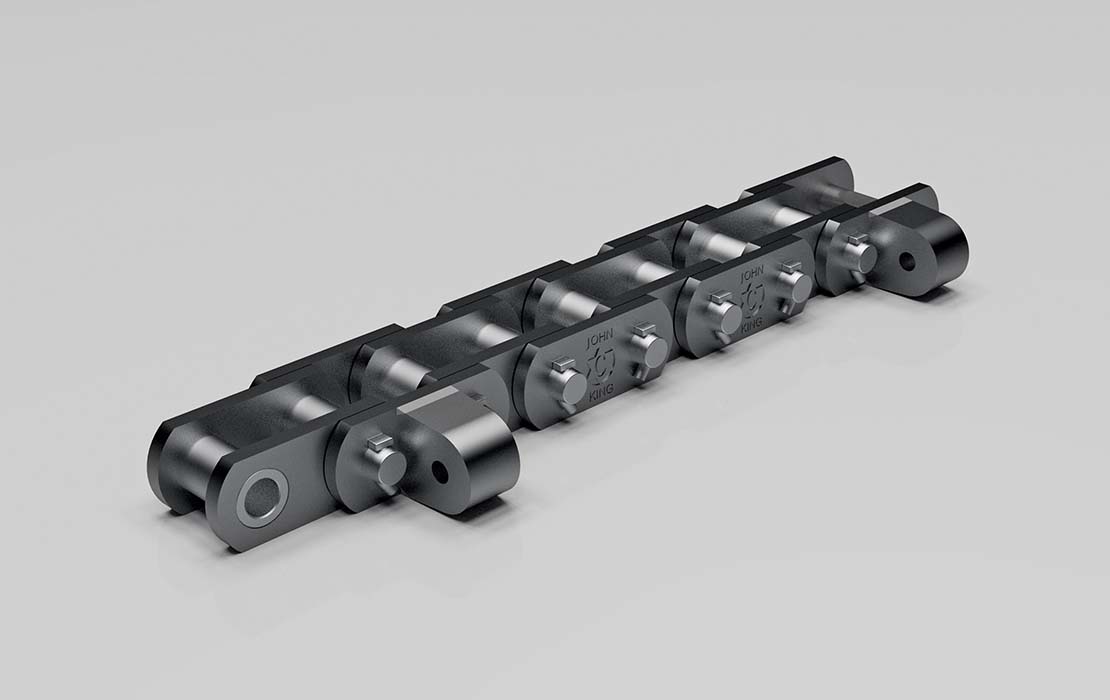

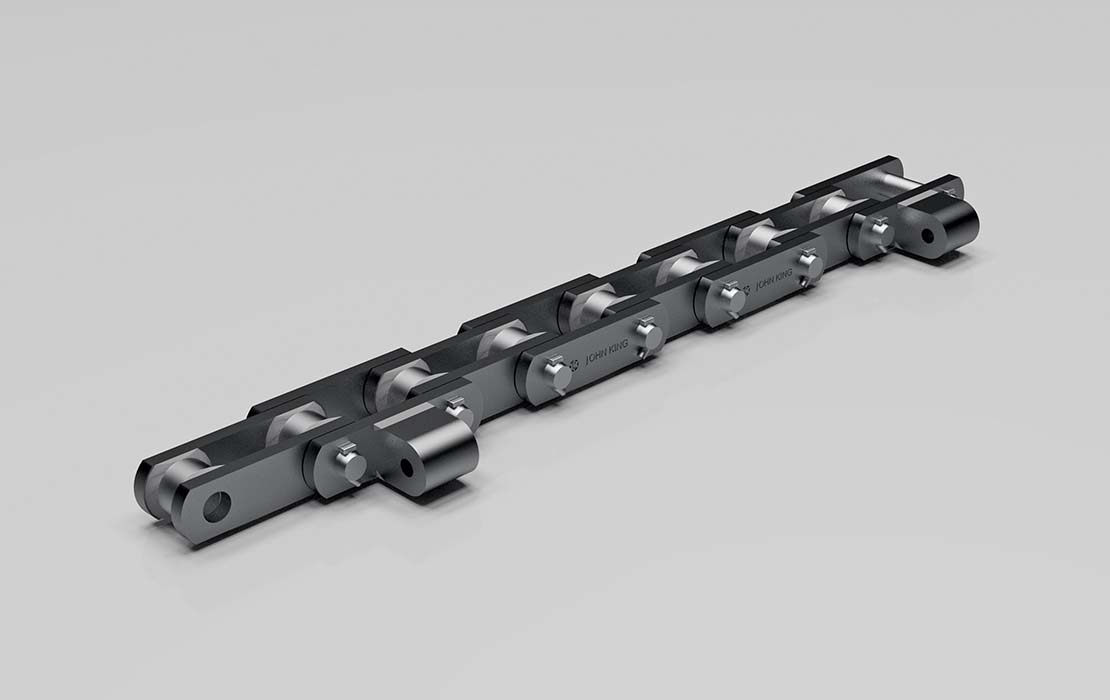

Feeder breakers are primary crushers with pick mounted roll crushers combining with a chain conveyor. They are designed to act as first phase crushers of mined mineral including coal, limestone, potash, gypsum and PET coke reducing the mineral to a suitable size for continuous transport. They can be either mobile or static machines and employ a variety of “running gear“.
|

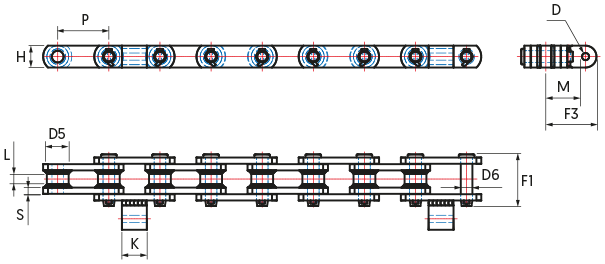

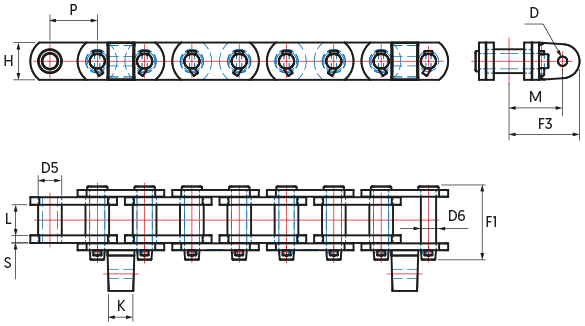

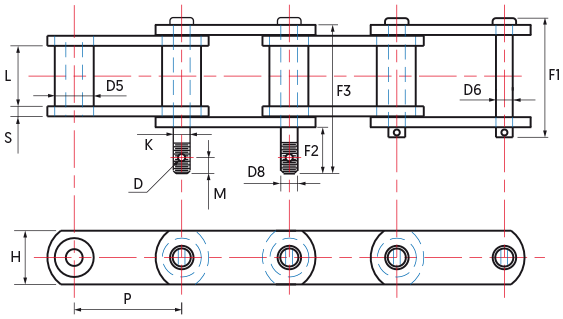

Feeder Breaker Chains |
||||||||||||||||||
|
Chain |
Pitch |
Bushings |
Pins |
Over-All |
Inside |
Sidedbars |
Attachments |
Type of Steel |
Approx. |
|||||||||
|
Diameter |
HTC |
Diameter |
HTC |
Thickness |
Height |
HTC |
||||||||||||
|
D5 |
D6 |
F1 |
L |
S |
H |
F2 |
F3 |
K |
D8 |
M |
D |
|||||||
|
inches |
inches |
inches |
inches |
lbs/ft |
||||||||||||||
|
JKB3075/D3X4 |
3.075 |
1.25 |
C |
0.680 |
C |
3.44 |
1.31 |
0.380 |
1.50 |
T |
2.06 |
4.94 |
0.670 |
0.63 |
0.50 |
0.250 |
ES |
4.6 |
|
JKB10719 |
3.500 |
1.75 |
C |
1.125 |
T |
5.38 |
2.25 |
0.562 |
2.75 |
T |
– |
5.219 |
1.817 |
– |
3.968 |
0.688 |
ES |
11,6 |
|
JKW10722 |
4.100 |
1.75 |
C |
0.937 |
T |
4.125 |
0.875 |
0.500 |
1.75 |
T |
– |
4.062 |
2.000 |
– |
3.187 |
0.570 |
WS |
6.0 |
Heat Treatment code (HTC):
T – Hardened and Tempered, C – Case Hardened, I – Induction Hardened.
ES – Engineered Steel, WS – Welded Steel
