The preference in most North American Asphalt production equipment is for material to be premixed and then transported in its finished condition with inclined drag slats and delivered to heated storage bins for ongoing distribution. The Engineering Roller Drag chains (JKR) highlighted are the most commonly encountered types, with M attachments. In either single or double strand format, the flights are generally welded into position. As they are in direct contact with the material they are normally produced from a pre-hardened steel plate. In the case of twin strand operation it is recommended chains are requested in calibrated and matched strands to ensure the strands operate in unison.

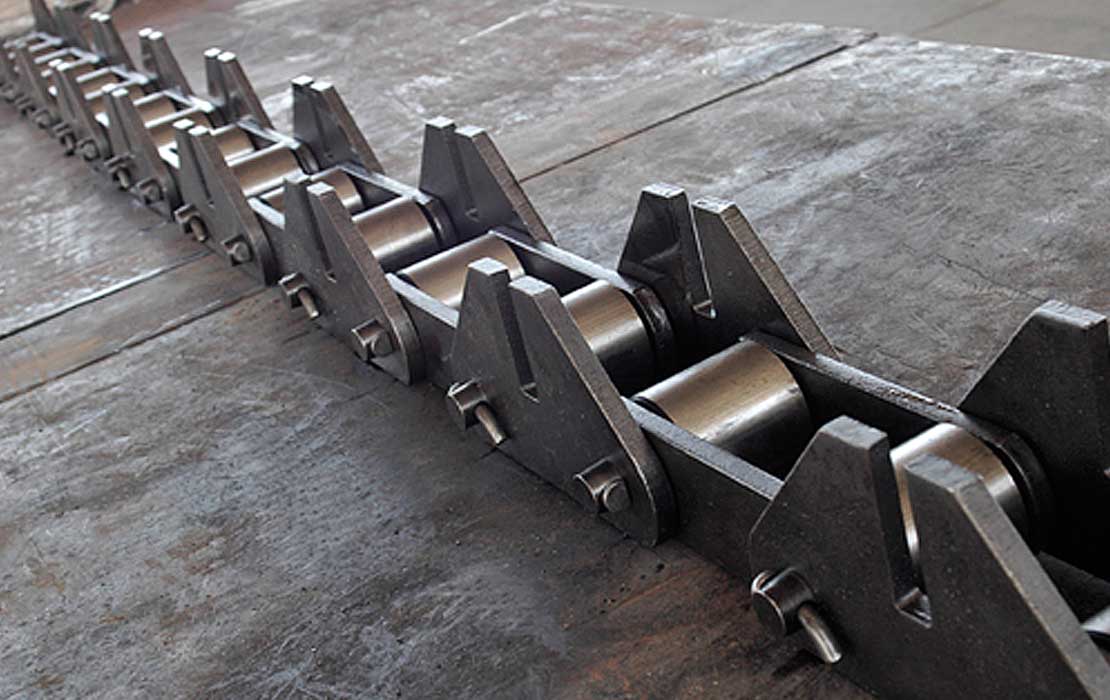

JKR Series with M Style attachments
JKR Series with M Style attachments - drawing

JKR Series with M Style attachments

Chain Number

Pitch

Roller Diameter

Bush Diameter

Pin Diameter

Between Sidebars

Sidebar Height

Sidebar Thickness

C

A1

A2

E

Overall Width

Breaking Load

P

D2

D5

D6

L

H

S

F1

inches

lbs

JKR2102

4.00

1.50

0.625

0.500

2.20

1.50

0.375

4.015

4.00

3.25

2.37

0.56

56,500

JKR2860

6.00

2.75

1.000

0.625

3.00

2.50

0.500

6.750

6.00

3.62

2.75

0.81

143,000

JKR2866

6.00

2.75

1.000

1.000

3.00

2.75

5.000

3.062

5.00

3.62

2.37

0.81

149,000
