Engineering Steel Paver Chains

Visit also

Precision laser cutting and fabrication service

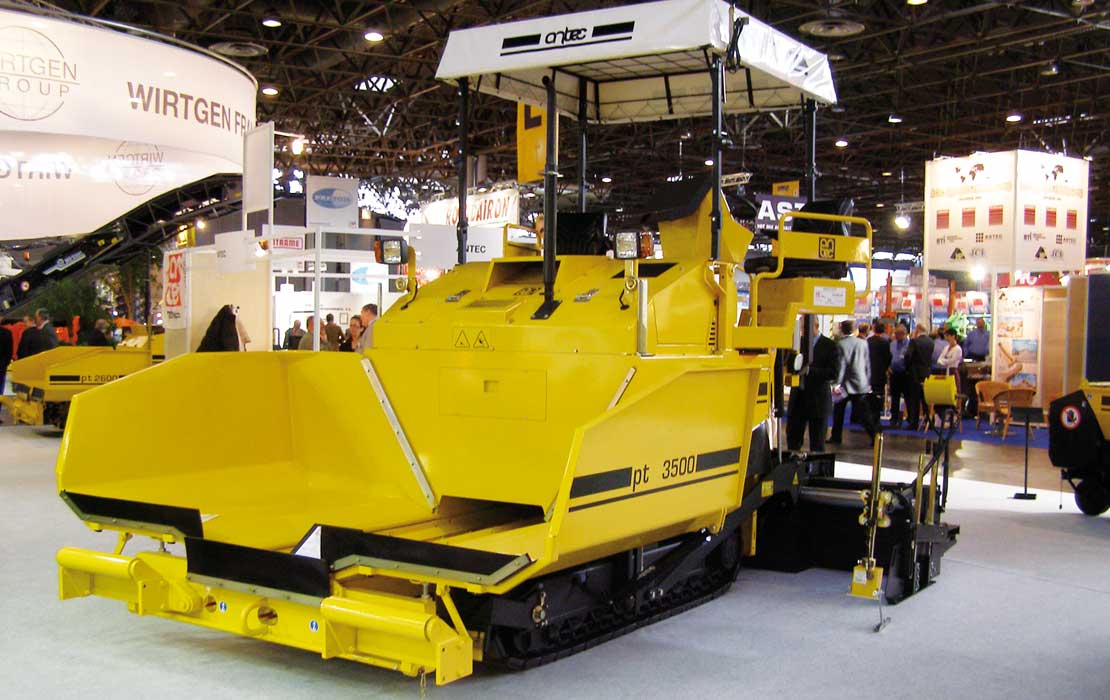

John King have extensive experience in the manufacture and application of Paver chains for use as drag bars assemblies in these road surfacing machines. The chains are used in twin strand format with the strands made common with flight bars. Used either as a single or double pair the chains are installed within the delivery hopper of the machine.

John King Chains produce paver chains as a principal series to original equipment and replacement applications. A multiplicity of chain types are encountered, but all following the same general format. Some of the more popular types encountered are highlighted in this section, but this is by no means exhaustive and for those chains required that are not detailed please contact our sales department.

Engineering Steel Paver Chains

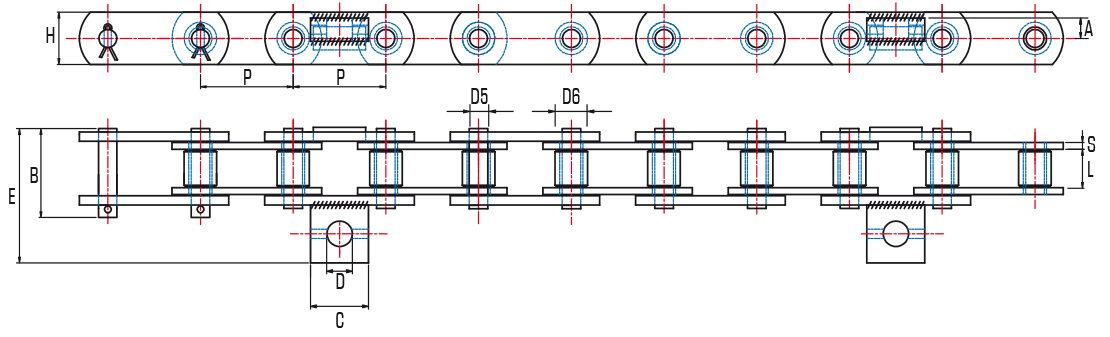

Engineering Steel Paver Chains - drawing

Engineering Steel Paver Chains

Chain
Number

P

L

D5

D6

H

S

A

B

C

D

E

Attachment
position

Breaking Load

mm

kN

JK3266

75.00

18.50

15.00

10.00

25

4

15

32

25

13.80

41

4

90

JK3493

80.00

25.00

20.00

15.00

35

5

20

43

40

19.80

59

4

178
