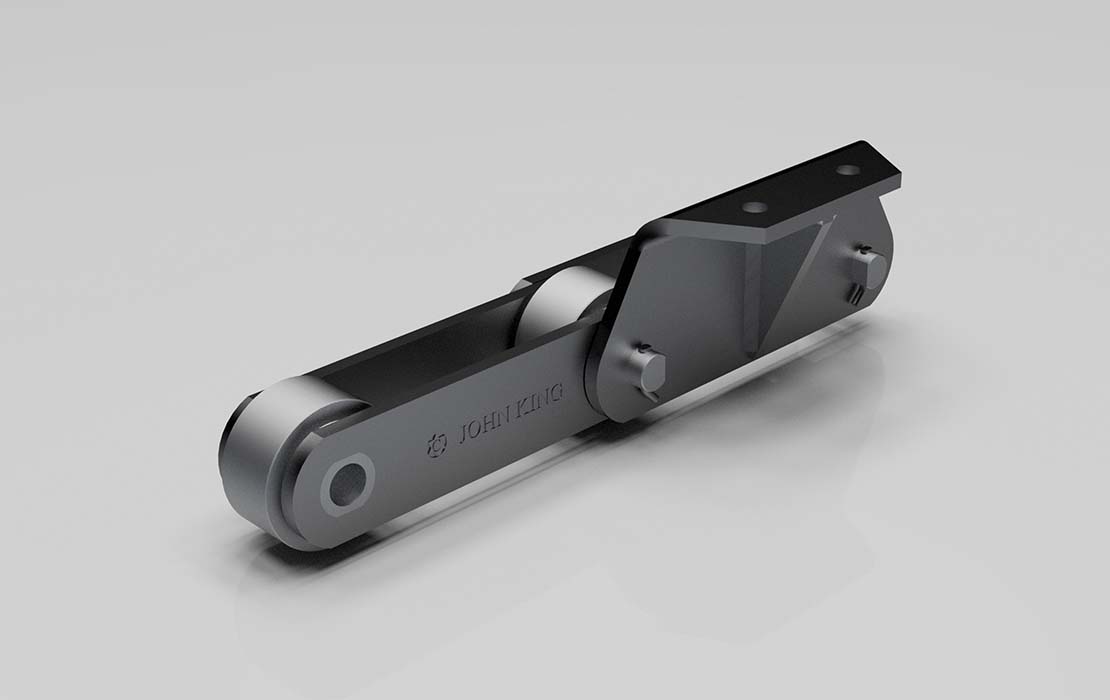

 King Scraper Reclaimer PH Series  |
|||||||||
|
 Chain   |
 Pitch  |
 Rollers  |
 Bushings  |
 Pins  |
 Between Sidebars  |
 Sidebars  |
 A  |
 Average Ultimate   |
|
|
 Outside Diameter  |
 Diameter  |
 Thickness  |
 Height  |
||||||
|
 P  |
 D2  |
 D5  |
 D6  |
 L  |
 S  |
 H  |
|||
|
 mm  |
 kg  |
||||||||
|
 PH2501000  |
 250  |
 130  |
 50  |
 42  |
 58  |
 15  |
 100  |
 135  |
 1250  |
|
 PH3151100  |
 315  |
 130  |
 54  |
 36  |
 60  |
 15  |
 100  |
 –  |
 1050  |
|
 PH4001100  |
 400  |
 130  |
 54  |
 36  |
 70  |
 15  |
 100  |
 –  |
 1050  |

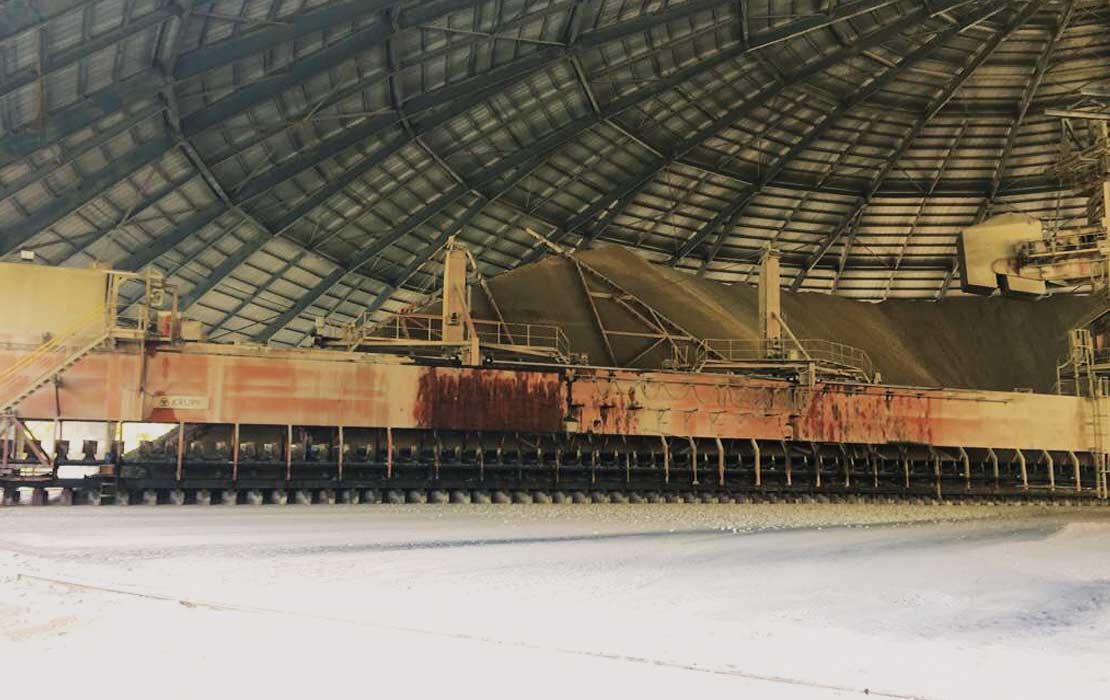

PH elevator chains are typical standards employed in portal reclaimers. The purpose is to draw material from stockpiles in a controlled manner. The chains operate in double strand format made common with a plough. Typical materials conveyed include such as Limestone, Shale and Coal.
