Non Standard Solid Pin Series Oven Chain

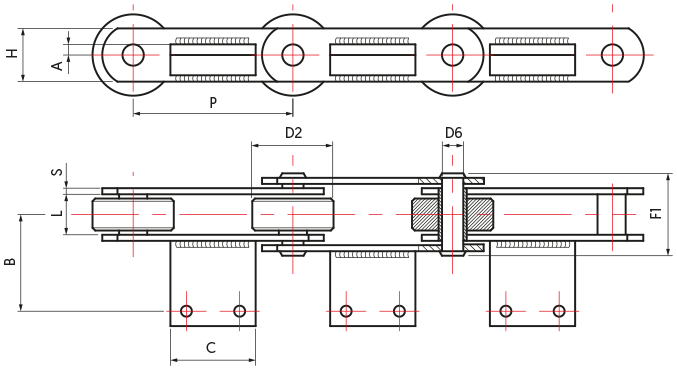

Non Standard Solid Pin Series Oven Chain - drawing

Non Standard Solid Pin Series Oven Chain
Chain Number	Pitch	Rollers	Pins	Over-All Pin	Between Sidebars	Sidebars		A	B	C	Breaking Load
	Pitch	Outside Diameter	Diameter	Over-All Pin	Between Sidebars	Thickness	Height
	P	D2	D6	F1	L	S	H
	mm										kN
JKR1596	75	45	12	43	22	4	35	17.5	50	50	100
JKR2224	100	60	18	43.5	22	4	40	6	45	50	115
JKR3636	100	18	12	43.5	22	4	30	–	–	–	64
JKR3030	100	60	14	57.5	25	5	50	–	–	–	150
JKR4983	100	65	22	75	36	6	50	4	45	60	190
JKR2784	100	60	18	71	40	6	40	6	58	60	150
JKR5062	100	60	18	71	40	6	40	6	58	50	150
JKR4034	125	40	12	43.5	22	4	30	15	77	80	80
JKR4929R	125	70	20	78	37	7	50	9	–	58	260
JKR4543	355.6	60	16	80.5	49	6	40	1	63.5	283	140
