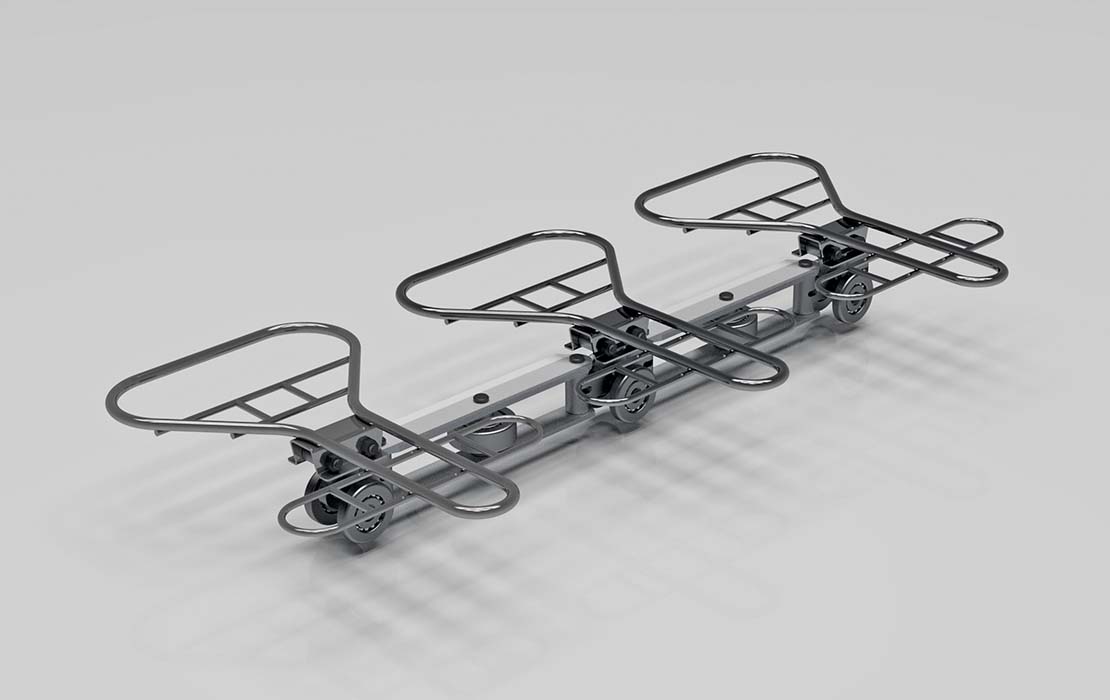

A ‘double knuckle’ chain with several unique features including larger diameter load and guide wheel bearings. Grids are mounted directly to the main load wheel casting. Supplied as a plated proofer chain or high temperature oven chain. Dimensional and material specifications match or exceed existing standards and are fully interchangeable within the production system.
|

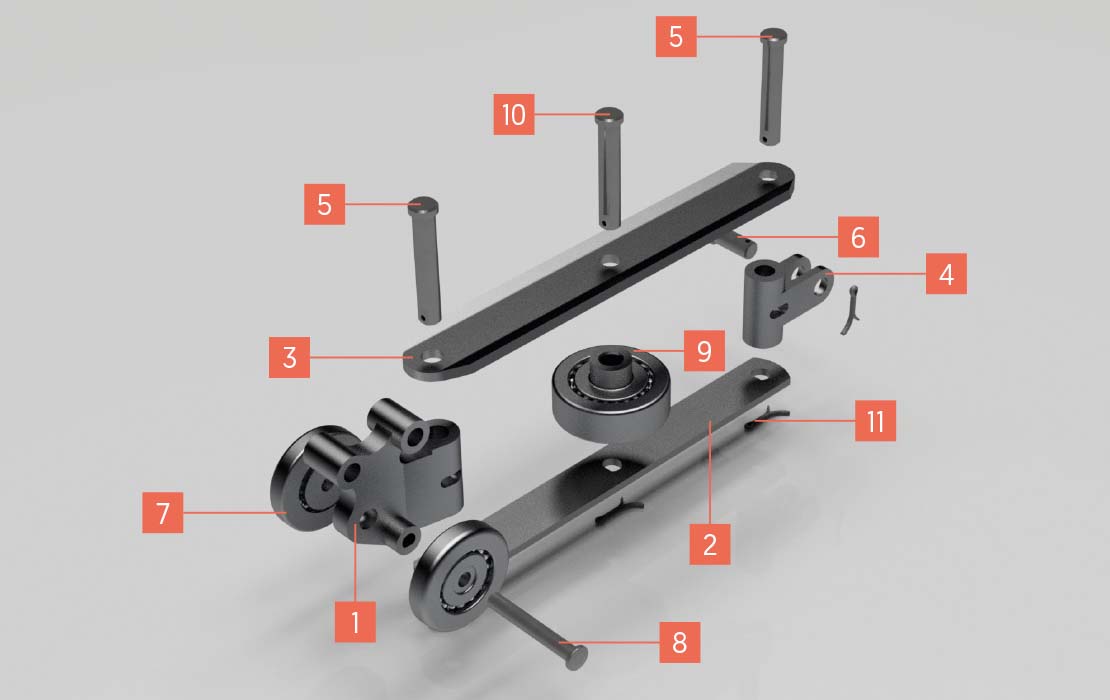

JKD 4619 |
||
|
Item |
Item Code |
Description |
|
1 |
31/D4619/**-A |
Cast Knuckle |
|
2 |
30/D4619/**-F |
Bottom Link Plate |
|
3 |
30/D4619/**-E |
Top Link Plate |
|
4 |
31/D4619/**-B |
Cast Knuckle Swivel |
|
5 |
26/D4619/**-I |
Long Connecting Pin |
|
6 |
26/D4619/***-G |
Short Connecting Pin |
|
7 |
43/D4619/**-C |
Load Wheel |
|
8 |
27/D4619/**-L |
Rivet Pin |
|
9 |
43/D4619/**-D |
Guide Wheel |
|
10 |
26/D4619/**-N |
Guide Wheel Pin |
|
11 |
28/JKS2/SS |
SS Split Cotter Pin |
** Insert Code SO For Stewart Oven or SP For Stewart Proofer
