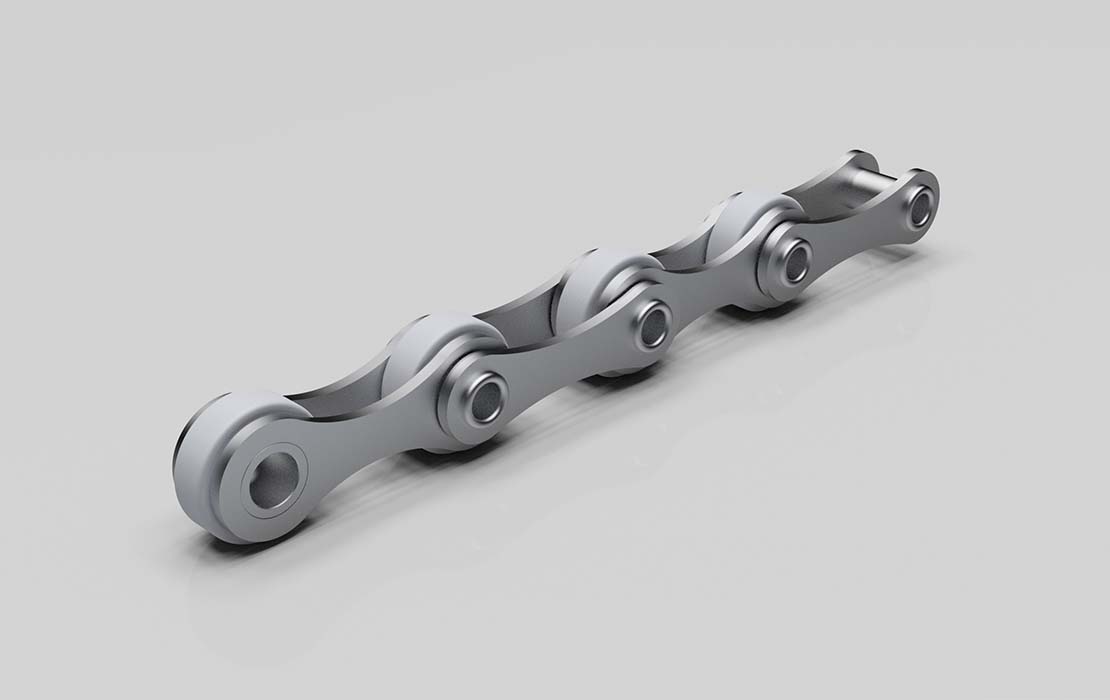

Bakery Conveyor Chains for General Transport
Have questions or need a quote?
Get in touch with the team today.
Get in Touch
|
Bakery Conveyor Chains for General Transport |
||||||||||||
|
Chain |
Pitch |
Rollers |
Bushings |
Hollow Pins |
Over-All Pin & Cotter Between |
Between |
Sidebars |
Breaking |
Average |
|||
|
Outside Diameter |
Diameter |
Thickness |
Height |
|||||||||
|
P |
D2 |
D5 |
D6 |
D7 |
F1 |
F2 |
L |
S |
H |
|||
|
mm |
kN |
kg/m |
||||||||||
|
JKR261 |
50 |
30 |
16 |
11.5 |
8.2 |
26.5 |
14.5 |
10 |
3 |
25.5 |
60 |
2.2 |
|
JKR262 |
50.8 |
30 |
16 |
11.5 |
8.2 |
26.5 |
14.5 |
10 |
3 |
25.5 |
60 |
2.1 |
|
JKR262SS* |
50.8 |
30 |
16 |
11.5 |
8.2 |
26.5 |
14.5 |
10 |
3 |
25.5 |
32 |
2.1 |
|
JKR3865AR |
60 |
30 |
16 |
11.5 |
8.2 |
26.5 |
14.5 |
10 |
3 |
26 |
60 |
1.5 |
|
JKR3604R |
63 |
30 |
16 |
11.5 |
8.2 |
26.5 |
14.5 |
10 |
3 |
26 |
60 |
2.3 |
|
JKR263 |
100 |
30 |
16 |
11.5 |
8.2 |
26.5 |
14.5 |
10 |
3 |
25.5 |
60 |
1.5 |
* Stainless steel chain
Options: Standard specification stainless steel, Option of polyethylene rollers, Zinc plates version where appropriate.
