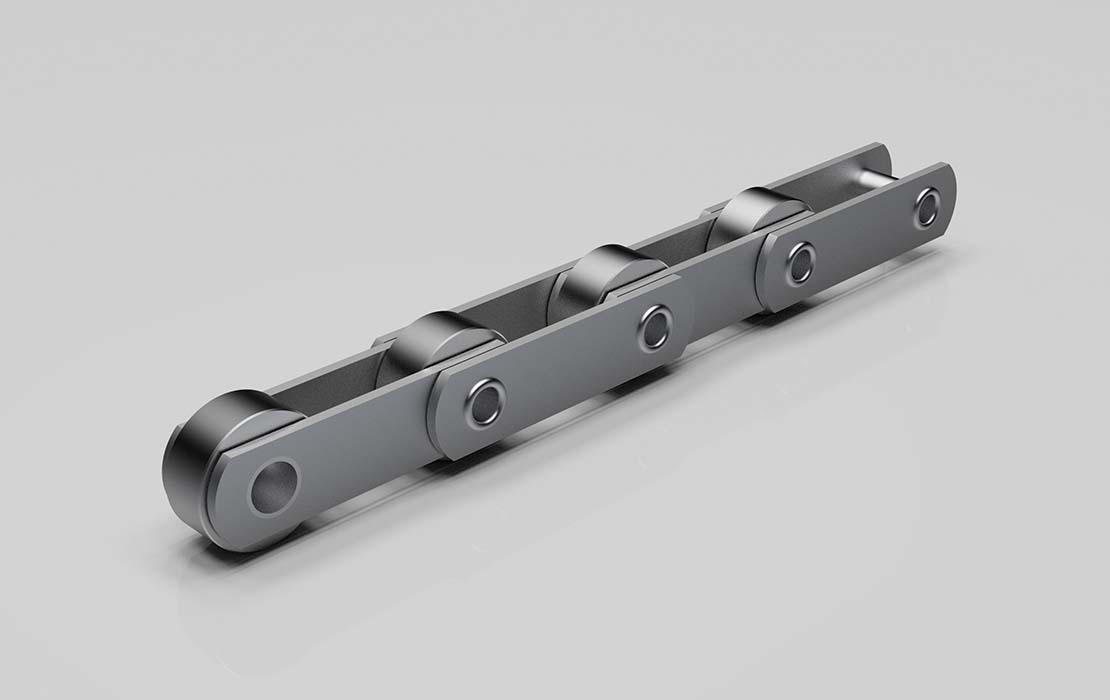

Proofer Chains Hollow Pin

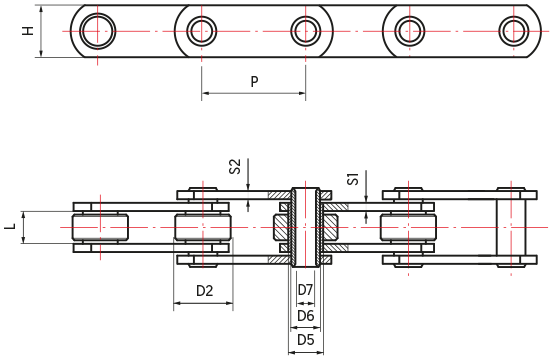

Proofer Chains Hollow Pin - drawing

Proofer Chains Hollow Pin

Chain
Number

P

Breaking
Load

Average
Weight

Rollers

Bushings

Between
Sidebars

Sidebars

Hollow Pins

Outside Diameter

Thickness

Height

Diameter

D6

D7

D2

D5

L

S1

S2

H

mm

kN

kN*

kg/m

mm

HP55/100/P

100

55

110

9.5

47.5

23

24

5

5

40

19

11

HP110/1524/R3/P

152.4

110

300

10.38

66.7

33

26

7

5

50

26.9

20.2

HP110/1778/P

177.8

110

300

9

76.2

33

26

7

5

50

26.9

20.2

HP110/2032/P

203.2

110

300

8.5

66.7

33

26

7

5

50

26.9

20.2

HP110/2032/R3/P

203.2

110

300

9.2

76.2

33

26

7

5

50

26.9

20.2

HP160/1270/P

127

160

320

20.8

88.9

38

38

10

8

60

32

22.5

HP160/1524/P

152.4

160

320

22.1

88.9

38

38

10

8

60

32

22.5

HP160/2032/P

203.2

160

320

18.6

88.9

38

38

10

8

60

32

22.5

HP160/2032/R5/P

203.2

160

320

21.6

88.9

38

38

10

8

60

32

22.5
