Special Slotted A22 for Waferizer Chains
Have questions or need a quote?
Get in touch with the team today.
Get in Touch
|

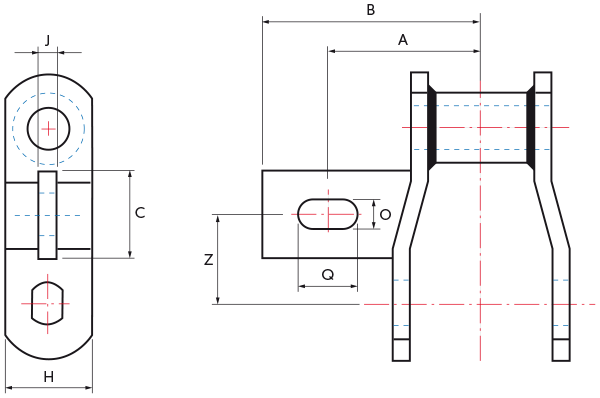

Special Slotted A22 for Waferizer Chains |
|||||||||
|
Chain |
A |
B |
C |
J |
Z |
H |
O |
Q |
Averge |
|
inches |
lbs/ft |
||||||||
|
WH124 |
4.00 |
5.94 |
2.00 |
0.50 |
1.75 |
1.50 |
0.81 |
1.50 |
8.75 |
|
WH124XHD |
4.13 |
6.06 |
2.00 |
0.50 |
1.75 |
2.00 |
0.81 |
1.50 |
15.55 |
|
WH106 |
4.00 |
5.94 |
2.00 |
0.50 |
3.00 |
1.50 |
0.81 |
1.50 |
8.20 |
|
WH106XHD |
4.13 |
6.06 |
3.00 |
0.50 |
3.00 |
2.00 |
0.81 |
1.50 |
13.80 |
|
WH132 |
4.50 |
6.25 |
2.00 |
0.50 |
3.00 |
2.00 |
0.81 |
1.50 |
15.22 |
|
WH132XHD |
4.63 |
6.38 |
2.50 |
0.50 |
3.00 |
2.00 |
0.81 |
1.25 |
16.42 |
All items to the left are also available fully heat treated, and/or IBR Induction hardened pins.
