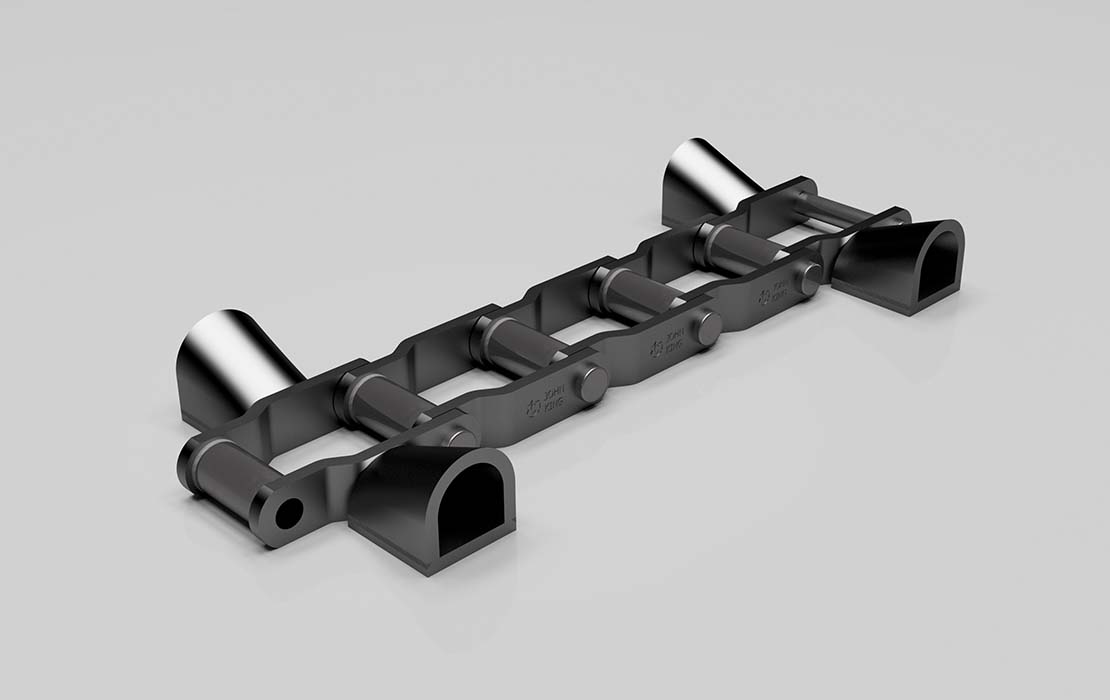

Log Cradle for Single Strand Chains |
|||||||||||||
|
Chain Number |
Pitch |
Style A |
Style B |
Style C |
Special Style C |
||||||||
|
X |
Y |
Z |
X |
Y |
Z |
X |
Y |
Z |
X |
Y |
Z |
||
|
inches |
|||||||||||||
|
WH124 |
4.000 |
8.00 |
2.50 |
2.50 |
8.00 |
2.50 |
2.25 |
8.00 |
2.25 |
3.50 |
11.00 |
2.94 |
3.00 |
|
WH111 |
4.760 |
8.50 |
2.25 |
1.75 |
8.50 |
3.00 |
2.25 |
8.50 |
2.25 |
3.50 |
11.00 |
2.94 |
3.00 |
|
WH124XHD |
4.050 |
8.50 |
3.00 |
2.50 |
8.50 |
3.00 |
2.50 |
8.50 |
3.00 |
3.00 |
11.00 |
3.75 |
3.00 |
|
WH106 |
6.000 |
8.00 |
2.25 |
3.00 |
8.00 |
2.25 |
2.25 |
8.00 |
2.25 |
3.50 |
11.63 |
2.94 |
3.50 |
|
WH132 |
6.050 |
11.00 |
3.00 |
3.00 |
11.00 |
3.00 |
3.25 |
11.00 |
3.00 |
3.50 |
13.00 |
3.50 |
3.50 |
|
WH132XHD |
6.050 |
11.25 |
3.00 |
3.00 |
11.25 |
3.00 |
3.00 |
11.63 |
3.00 |
3.50 |
13.63 |
3.25 |
3.50 |
Note: Style A cradles could pose conveying problems – discuss with factory.
