The trough width can be increased by the addition of wing attachments. This can be a cost-effective way of improving material throughput particularly in transporting low density material. The recommended maximum flight widths are detailed. Anything outside this range should be referred to John King Engineering.

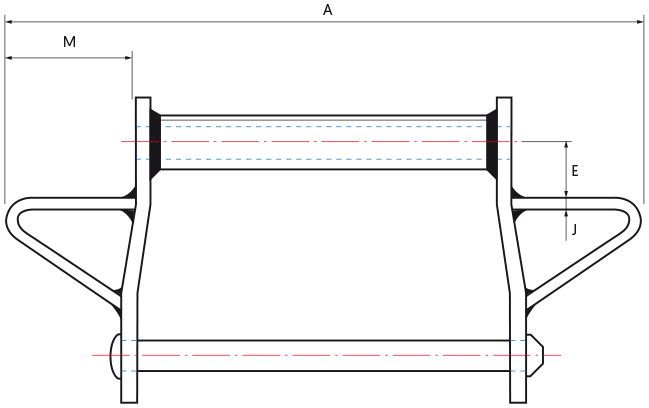

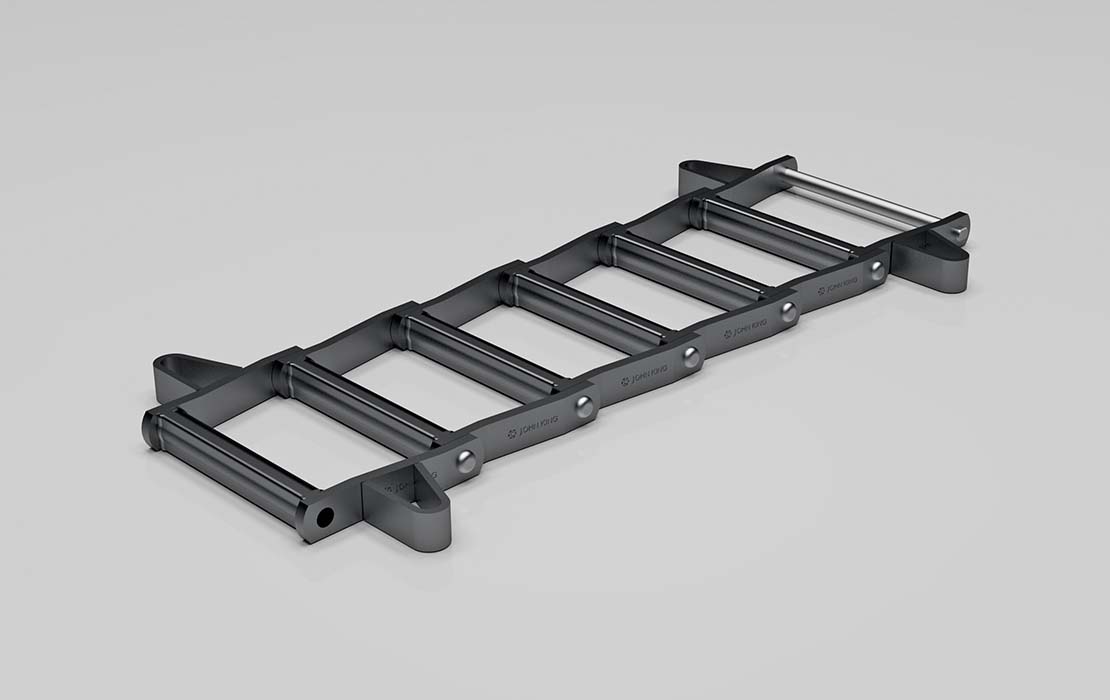

Welded Steel Drag Chains with Wing attachments |
||||
Chain |
A |
E |
J |
M |
inches |
||||
WDH102 |
14.50 |
1.50 |
0.38 |
3.25 |
WDH104 |
12.00 |
2.25 |
0.38 |
3.38 |
WDH110 |
17.00 |
2.25 |
0.38 |
3.38 |
WDH112 |
17.00 |
2.25 |
0.38 |
3.38 |
WDH116 |
22.00 |
2.50 |
0.38 |
3.94 |
WDH120 |
17.00 |
2.50 |
0.50 |
3.38 |
WDH480 |
22.00 |
2.50 |
0.50 |
4.63 |
WDH120XHD |
17.25 |
2.50 |
0.50 |
3.25 |
WDH480XHD |
22.25 |
2.50 |
0.50 |
4.50 |
WDH580XHD |
25.00 |
2.50 |
0.63 |
5.00 |
WDH680XHD |
25.00 |
2.50 |
0.63 |
4.75 |
