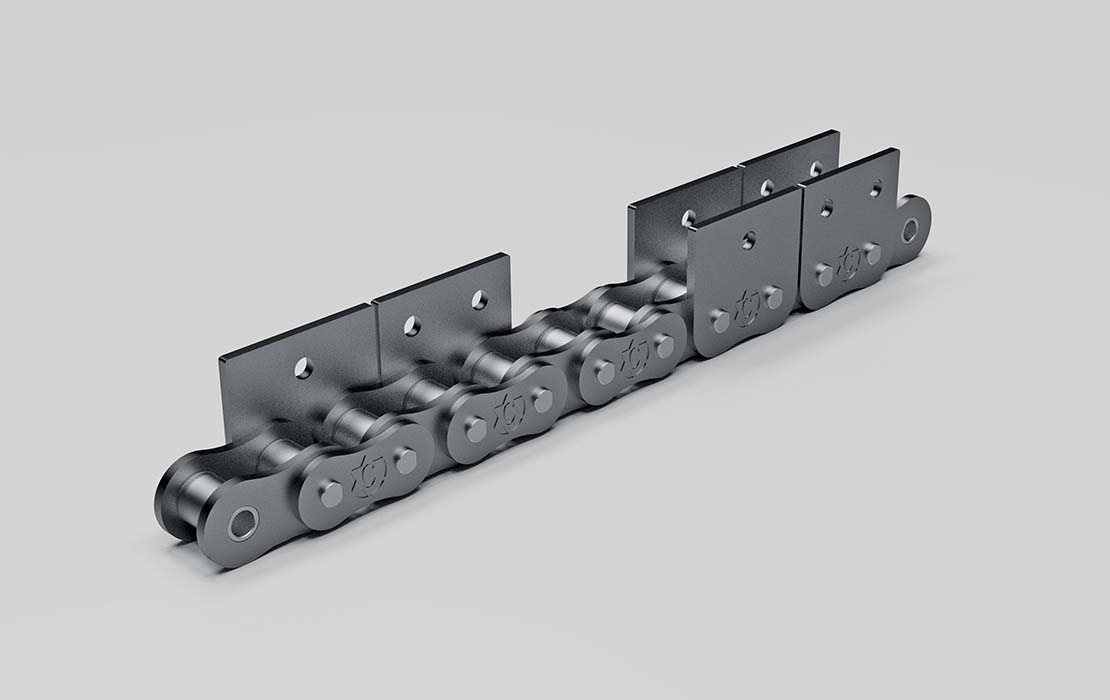

WSA-1, WSA-2 & WSK-1, WSK-2SA-1 & SK-1 Attachments Roller Chains
Have questions or need a quote?
Get in touch with the team today.
Get in Touch
|
British Standard WSA-1, WSA2 & WSK-1, WSK-2 Attachments Roller Chains |
|||||||
|
Chain |
Pitch |
B |
C |
D |
F |
K |
S |
|
P |
|||||||
|
mm |
|||||||
|
08B |
12.700 |
13.35 |
23.30 |
4.30 |
12.70 |
18.90 |
1.60 |
|
10B |
15.875 |
16.50 |
29.58 |
5.30 |
15.88 |
22.95 |
1.70 |
|
12B |
19.050 |
21.45 |
34.05 |
6.40 |
19.05 |
28.60 |
1.85 |
|
16B |
25.400 |
23.15 |
46.40 |
6.40 |
25.40 |
34.00 |
3.10 |
|
American Standard WSA-1, WSA2 & WSK-1, WSK-2 Attachments Roller Chains |
|||||||
|
Chain |
Pitch |
B |
C |
D |
F |
K |
S |
|
P |
|||||||
|
inches |
|||||||
|
40 |
0.500 |
0.500 |
0.906 |
0.134 |
0.500 |
0.685 |
0.059 |
|
50 |
0.625 |
0.626 |
1.134 |
0.217 |
0.625 |
0.907 |
0.080 |
|
60 |
0.750 |
0.720 |
1.364 |
0.217 |
0.750 |
1.057 |
0.095 |
|
80 |
1.000 |
0.969 |
1.807 |
0.268 |
1.000 |
1.396 |
0.128 |
|
100 |
1.250 |
1.252 |
2.270 |
0.362 |
1.250 |
1.732 |
0.157 |
Note: check attachment dimensions before ordering since manufacturing standards may vary
