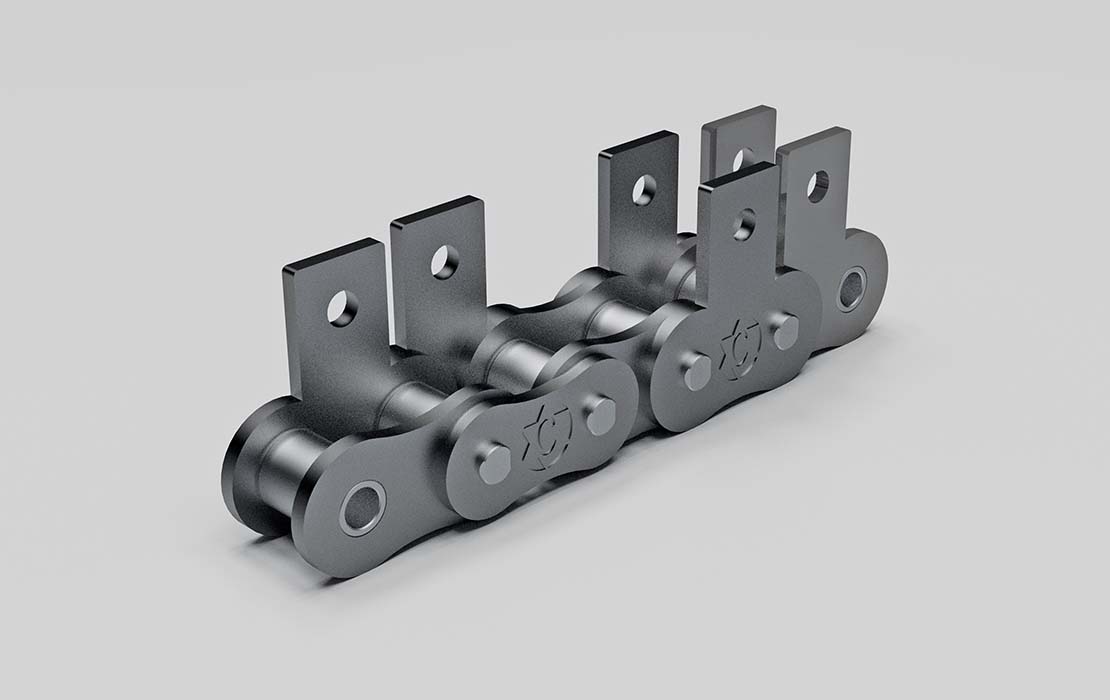

SA-1 & SK-1 Attachments Roller Chains
Have questions or need a quote?
Get in touch with the team today.
Get in Touch
|
British Standard SA-1 & SK-1 Attachments Roller Chains |
||||||
|
Chain |
Pitch |
C |
B |
D |
K |
S |
|
P |
||||||
|
mm |
||||||
|
06B* |
9.525 |
8.00 |
9.52 |
3.50 |
13.50 |
1.30 |
|
08B |
12.700 |
9.50 |
13.35 |
4.30 |
18.90 |
1.60 |
|
10B |
15.875 |
14.30 |
16.50 |
5.30 |
22.95 |
1.70 |
|
12B |
19.050 |
16.00 |
21.45 |
6.40 |
28.60 |
1.85 |
|
16B |
25.400 |
19.10 |
23.15 |
6.40 |
34.00 |
3.10 |
|
American Standard SA-1 & SK-1 Attachments Roller Chains |
||||||
|
Chain |
Pitch |
C |
B |
D |
K |
S |
|
P |
||||||
|
inches |
||||||
|
40 |
0.500 |
0.374 |
0.500 |
0.134 |
0.750 |
0.059 |
|
50 |
0.625 |
0.500 |
0.626 |
0.217 |
0.994 |
0.080 |
|
60 |
0.750 |
0.626 |
0.720 |
0.217 |
1.155 |
0.095 |
|
80 |
1.000 |
0.752 |
0.969 |
0.268 |
1.366 |
0.128 |
|
100 |
1.250 |
1.000 |
1.252 |
0.362 |
1.705 |
0.157 |
|
120 |
1.500 |
1.126 |
1.437 |
0.386 |
2.031 |
0.189 |
|
140 |
1.750 |
1.374 |
1.752 |
0.449 |
2.441 |
0.220 |
|
160 |
2.000 |
1.500 |
2.000 |
0.516 |
2.750 |
0.252 |
* Bush chain
Note: check attachment dimensions before ordering since manufacturing standards may vary
