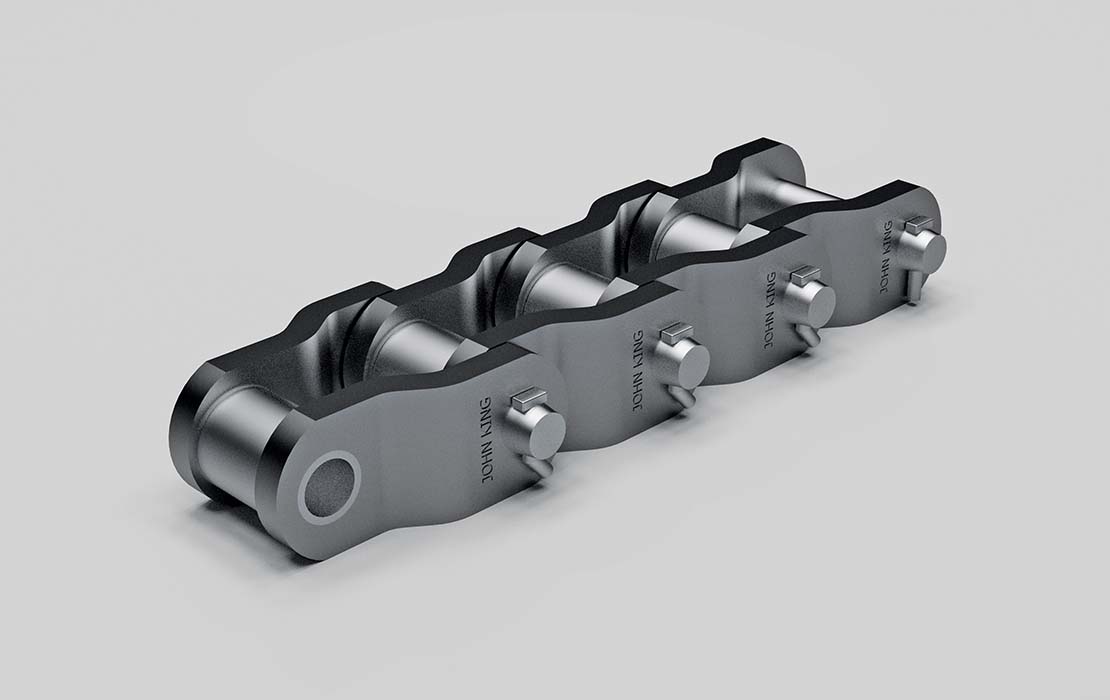

Drive Chains ANSI B29.10 |
||||||||||
|
Chain |
Pitch |
Inside |
Roller |
Pin |
Side Plate |
Over All |
BREAKING LOAD |
WEIGHT |
||
|
Height |
Thickness |
|||||||||
|
P |
L1 |
D2 |
D6 |
Hp |
S |
F1 |
||||
|
mm |
lb |
kg |
kg/m |
|||||||
|
JK 508 |
50.80 |
31.75 |
28.58 |
15.06 |
40.00 |
8.00 |
79.00 |
65,000 |
29,500 |
11.3 |
|
JK 882 |
66.27 |
28.60 |
22.23 |
11.10 |
28.40 |
6.40 |
67.50 |
28,000 |
12,700 |
5.4 |
|
JK 3011 |
77.90 |
38.10 |
41.40 |
19.05 |
57.20 |
9.70 |
100.00 |
110,000 |
49,900 |
17.9 |
|
JK 1031 |
78.10 |
38.10 |
31.75 |
15.88 |
38.10 |
8.00 |
88.00 |
48,000 |
21,750 |
10.5 |
|
JK 3075 |
78.10 |
38.10 |
31.75 |
15.88 |
41.50 |
9.50 |
97.00 |
75,000 |
34,000 |
14.3 |
|
JK 3500 |
88.90 |
38.60 |
44.45 |
22.23 |
58.00 |
12.70 |
114.00 |
150,000 |
68,000 |
23.9 |
|
JK 4063 |
103.20 |
49.20 |
44.45 |
22.23 |
57.00 |
12.70 |
127.00 |
150,000 |
68,000 |
23.9 |
|
JK 4073 |
103.45 |
49.60 |
45.20 |
23.80 |
60.00 |
14.50 |
129.40 |
170,000 |
77,100 |
27.2 |
|
JK 4500 |
114.30 |
50.80 |
57.15 |
27.94 |
76.20 |
14.20 |
133.90 |
208,000 |
94,350 |
38.3 |
|
JK 5031 |
127.00 |
69.90 |
63.50 |
31.55 |
89.00 |
15.88 |
158.25 |
260,000 |
117,950 |
52.3 |
|
JK 1605 |
127.00 |
63.50 |
63.50 |
34.93 |
89.00 |
20.00 |
170.00 |
330,000 |
149,700 |
54.3 |
|
JK 6042 |
152.40 |
74.60 |
76.20 |
38.10 |
100.00 |
20.00 |
186.00 |
420,000 |
190,500 |
67.0 |
