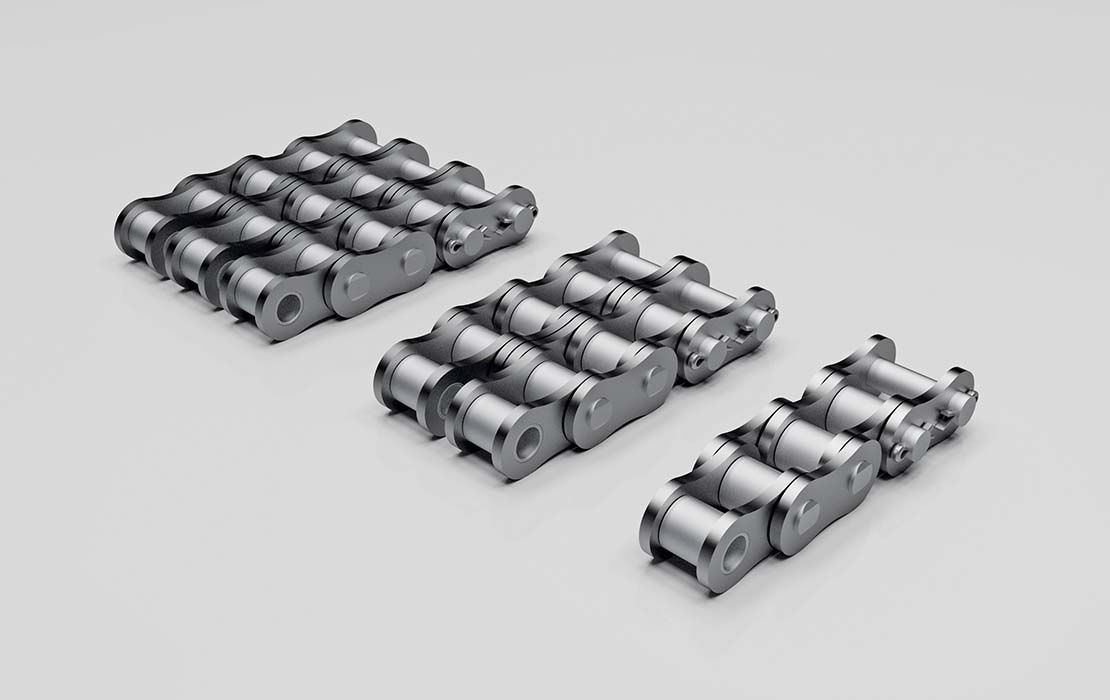

British Standard Roller Chains
Have questions or need a quote?
Get in touch with the team today.
|
British Standard Roller Chains |
|||||||||
|
Chain |
Pitch |
Roller |
Pin |
Side Plates |
Over-All |
Transverse |
Weight |
Tensile |
|
|
Width |
Diameter |
||||||||
|
P |
b1 |
d1 |
d2 |
g |
a1 |
e |
|||
|
mm |
Kg/m |
N |
|||||||
|
04B-1 |
6.00 |
2.80 |
4.00 |
1.85 |
5.00 |
10.30 |
– |
0.12 |
3,000 |
|
05B-1 |
8.00 |
3.00 |
5.00 |
2.31 |
7.10 |
11.70 |
– |
0.10 |
5,000 |
|
06B-1* |
9.53 |
5.72 |
6.35 |
3.26 |
8.26 |
16.78 |
– |
0.45 |
8,940 |
|
06B-2* |
9.53 |
5.72 |
6.35 |
3.26 |
8.26 |
27.10 |
10.24 |
0.80 |
16,946 |
|
06B-3* |
9.53 |
5.72 |
6.35 |
3.26 |
8.26 |
37.31 |
10.24 |
1.18 |
24,908 |
|
08B-1 |
12.70 |
7.75 |
8.51 |
4.45 |
11.80 |
20.90 |
– |
0.68 |
17,836 |
|
08B-2 |
12.70 |
7.75 |
8.51 |
4.45 |
11.80 |
34.90 |
16.59 |
1.31 |
31,180 |
|
08B-3 |
12.70 |
7.75 |
8.51 |
4.45 |
11.80 |
47.80 |
16.59 |
1.94 |
44,524 |
|
81-1 |
12.70 |
3.30 |
7.75 |
3.64 |
9.91 |
11.70 |
– |
0.28 |
8,000 |
|
83-1 |
12.70 |
4.88 |
7.75 |
3.64 |
9.91 |
13.10 |
– |
0.38 |
8,000 |
|
10B-1 |
15.87 |
9.65 |
10.20 |
5.08 |
14.70 |
23.70 |
– |
0.95 |
22,240 |
|
10B-2 |
15.87 |
9.65 |
10.20 |
5.08 |
14.70 |
40.30 |
16.60 |
1.87 |
44,524 |
|
10B-3 |
15.87 |
9.65 |
10.20 |
5.08 |
14.70 |
56.90 |
16.60 |
2.80 |
66,764 |
|
12B-1 |
19.05 |
11.68 |
12.07 |
5.72 |
16.10 |
27.31 |
– |
1.19 |
28,912 |
|
12B-2 |
19.05 |
11.68 |
12.07 |
5.72 |
16.10 |
46.31 |
19.50 |
2.34 |
57,868 |
|
12B-3 |
19.05 |
11.68 |
12.07 |
5.72 |
16.10 |
66.29 |
19.50 |
3.47 |
86,780 |
|
16B-1 |
25.40 |
17.02 |
15.88 |
8.28 |
21.10 |
41.50 |
– |
2.72 |
56,889 |
|
16B-2 |
25.40 |
17.02 |
15.88 |
8.28 |
21.10 |
73.41 |
31.88 |
5.37 |
113,735 |
|
16B-3 |
25.40 |
17.02 |
15.88 |
8.28 |
21.10 |
105.30 |
31.88 |
8.02 |
170,625 |
|
20B-1 |
31.75 |
19.56 |
19.05 |
10.19 |
26.42 |
49.30 |
– |
3.88 |
93,141 |
|
20B-2 |
31.75 |
19.56 |
19.05 |
10.19 |
26.42 |
85.80 |
36.45 |
7.66 |
176,496 |
|
20B-3 |
31.75 |
19.56 |
19.05 |
10.19 |
26.42 |
122.20 |
36.45 |
11.44 |
264,744 |
|
24B-1 |
38.10 |
25.40 |
25.40 |
14.60 |
33.40 |
59.99 |
– |
6.85 |
166,711 |
|
24B-2 |
38.10 |
25.40 |
25.40 |
14.60 |
33.40 |
108.40 |
48.36 |
13.87 |
317,721 |
|
24B-3 |
38.10 |
25.40 |
25.40 |
14.60 |
33.40 |
156.80 |
48.36 |
20.89 |
475,580 |
|
28B-1 |
44.45 |
30.99 |
27.94 |
15.90 |
37.00 |
65.10 |
– |
8.56 |
200,000 |
|
28B-2 |
44.45 |
30.99 |
27.94 |
15.90 |
37.00 |
124.70 |
59.56 |
16.96 |
360,000 |
|
28B-3 |
44.45 |
30.99 |
27.94 |
15.90 |
37.00 |
184.30 |
59.56 |
25.38 |
536,000 |
|
32B-1 |
50.80 |
30.99 |
29.21 |
17.80 |
42.20 |
67.40 |
– |
9.49 |
250,000 |
|
32B-2 |
50.80 |
30.99 |
29.21 |
17.80 |
42.20 |
126.00 |
58.55 |
18.74 |
443,896 |
|
32B-3 |
50.80 |
30.99 |
29.21 |
17.80 |
42.20 |
184.50 |
58.55 |
28.04 |
670,000 |
|
40B-1 |
63.50 |
38.10 |
39.37 |
22.89 |
52.90 |
92.50 |
– |
15.53 |
352,299 |
|
40B-2 |
63.50 |
38.10 |
39.37 |
22.89 |
52.90 |
151.21 |
72.29 |
30.72 |
630,000 |
|
40B-3 |
63.50 |
38.10 |
39.37 |
22.89 |
52.90 |
223.80 |
72.29 |
45.97 |
950,000 |
|
48B-1 |
76.20 |
45.72 |
48.26 |
29.24 |
64.00 |
98.88 |
– |
24.45 |
560,000 |
|
48B-2 |
76.20 |
45.72 |
48.26 |
29.24 |
64.00 |
200.00 |
91.21 |
48.54 |
1,096,041 |
|
48B-3 |
76.20 |
45.72 |
48.26 |
29.24 |
64.00 |
291.00 |
91.21 |
72.67 |
1,500,000 |
* Bush chain
