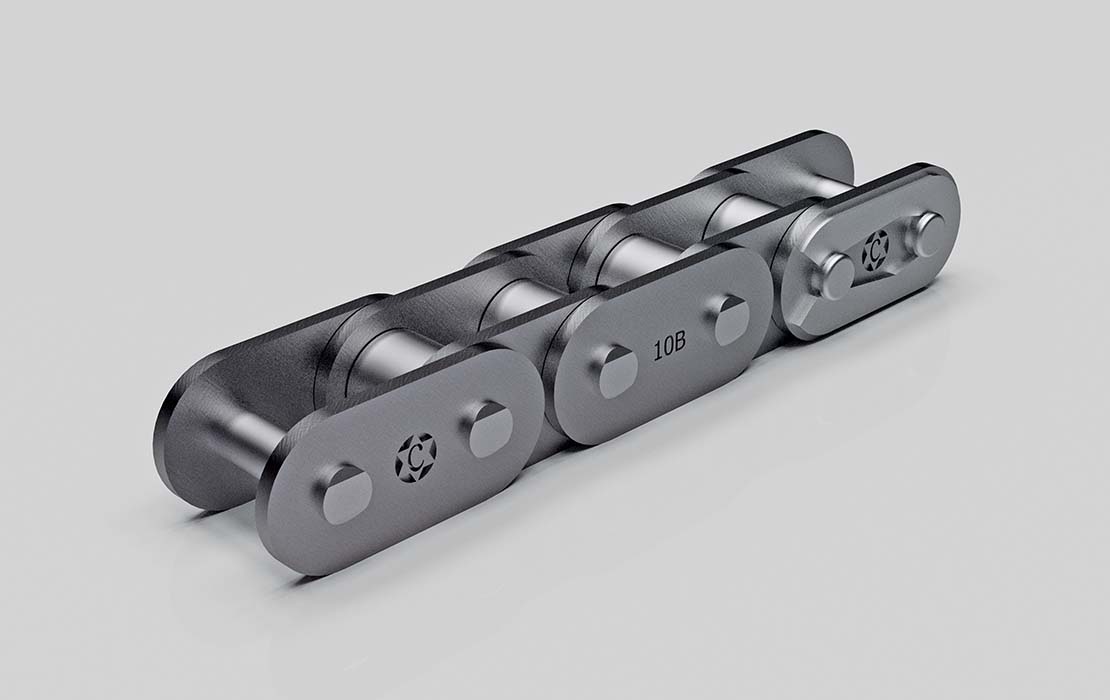

British Standard Roller Chains with Straight Side Plates
Have questions or need a quote?
Get in touch with the team today.
|
British Standard Roller Chains with Straight Side Plates |
|||||||||
|
Chain |
Pitch |
Rollers |
Pins |
Over-All |
Between Sidebars |
Transverse Pitch |
Sidebars |
Weight |
Tensile |
|
Outside |
Diameter |
Height |
|||||||
|
P |
D2 |
D6 |
F1 |
L |
L1 |
H |
|||
|
mm |
kg/m |
N |
|||||||
|
06B-1* |
9.53 |
6.35 |
3.26 |
16.78 |
5.72 |
– |
8.26 |
0.45 |
8,940 |
|
06B-2* |
9.53 |
6.35 |
3.26 |
27.10 |
5.72 |
10.24 |
8.26 |
0.80 |
16,946 |
|
06B-3* |
9.53 |
6.35 |
3.26 |
37.31 |
5.72 |
10.24 |
8.26 |
1.18 |
24,908 |
|
08B-1 |
12.70 |
8.51 |
4.45 |
20.90 |
7.75 |
– |
11.80 |
0.74 |
17,836 |
|
08B-2 |
12.70 |
8.51 |
4.45 |
34.90 |
7.75 |
13.92 |
11.80 |
1.41 |
31,180 |
|
08B-3 |
12.70 |
8.51 |
4.45 |
47.80 |
7.75 |
13.92 |
11.80 |
2.08 |
44,524 |
|
10B-1 |
15.85 |
10.16 |
5.08 |
23.70 |
9.65 |
– |
14.70 |
0.95 |
22,240 |
|
10B-2 |
15.85 |
10.16 |
5.08 |
46.81 |
9.65 |
16.60 |
14.70 |
1.97 |
44,524 |
|
10B-3 |
15.85 |
10.16 |
5.08 |
66.29 |
9.65 |
16.60 |
14.70 |
2.80 |
66,764 |
|
12B-1 |
19.05 |
12.07 |
5.72 |
27.31 |
11.68 |
– |
16.10 |
1.19 |
28,912 |
|
12B-2 |
19.05 |
12.07 |
5.72 |
46.31 |
11.68 |
19.50 |
16.10 |
2.34 |
57,868 |
|
16B-1 |
25.40 |
15.88 |
8.28 |
41.50 |
17.02 |
– |
21.10 |
3.30 |
60,889 |
* Bush chain.
