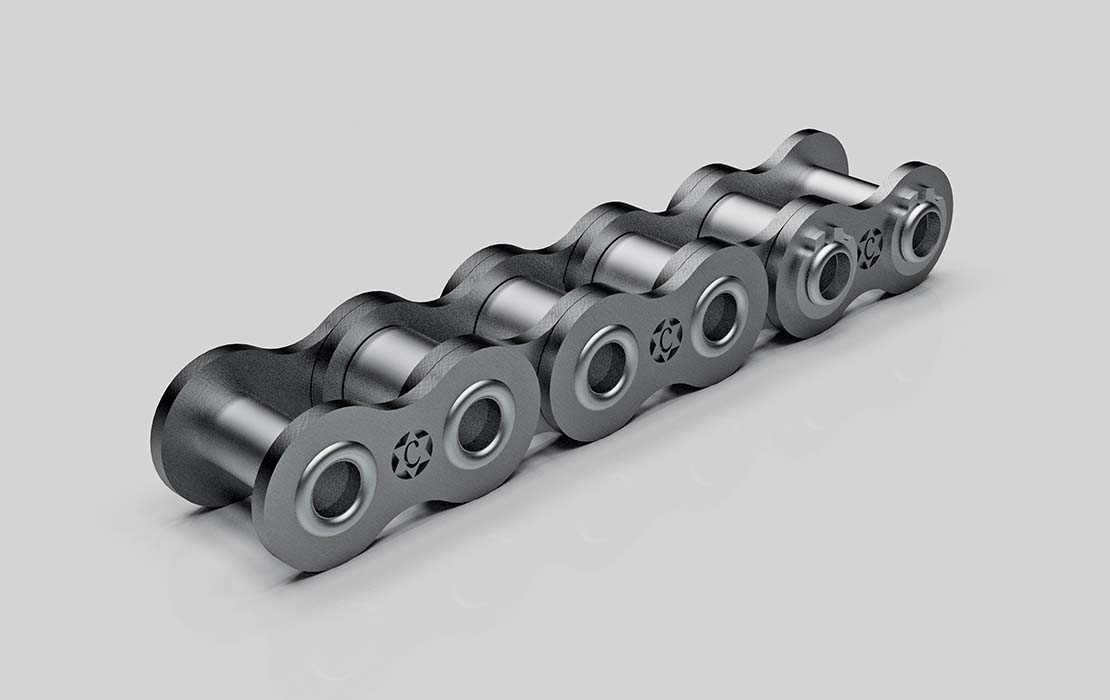

British Standard Hollow Pin Roller Chains |
|||||||||
Chain |
Pitch |
Roller |
Pin |
Side Plates |
Over-All |
Weight |
Tensile |
||
Width |
Diameter |
Diameter |
Inner Diameter |
||||||
P |
b1 |
d1 |
d2 |
dx |
g |
a1 |
|||
mm |
Kg/m |
N |
|||||||
08BHP |
12.70 |
7.75 |
8.51 |
6.28 |
4.50 |
11.80 |
20.90 |
0.70 |
10,790 |
10BHP |
15.88 |
9.65 |
10.16 |
7.02 |
5.18 |
14.70 |
23.70 |
0.92 |
14,710 |
12BHP |
19.05 |
11.68 |
12.07 |
8.09 |
6.00 |
16.10 |
27.31 |
1.19 |
22,600 |
