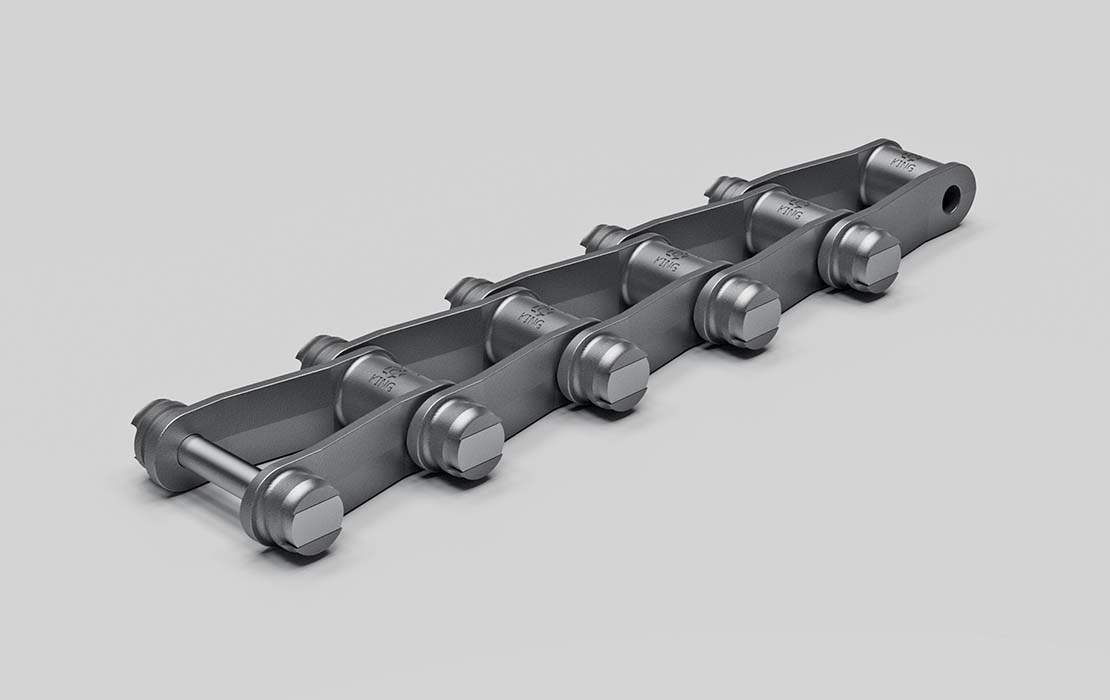

Gray Pin Chains
Chain Number	Average Pitch	Width		Sidebars Height	Pin Diameter	Sprocket Face	Number of Links in 10 Ft	Breaking Load	Average Weight
	P	F2	F3	H	D6	L		Breaking Load	Average Weight
	inches							lbs	lbs/ft
567	2.32	1.50	1.69	1.06	0.38	0.90	52	12,500	3.5
578	2.63	1.56	1.69	1.06	0.44	1.00	46	15,000	4.0
503	3.02	2.00	2.25	1.31	0.56	1.13	40	20,000	6.2
504	4.06	2.75	2.88	1.56	0.63	1.63	30	27,500	8.5
500	6.04	2.63	3.00	1.50	0.63	1.63	20	25,000	6.0
