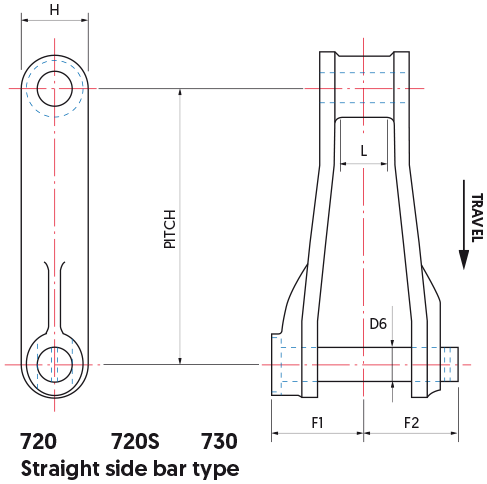

700 Class Pintle Chains - straight side bar type - drawing

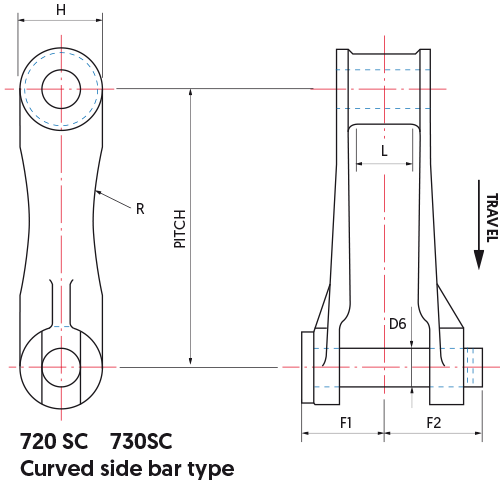

700 Class Pintle Chains - curved side bar type - drawing

700 Class Pintle Chains
Chain Number	Pitch	Pin	Width		Sprocket Face	Sidebars Height	Radius of side bar sprocket flanges	Number of Links in 10 Ft	Breaking Load	Average Weight
	Pitch	Diameter	Width		Sprocket Face	Sidebars Height	Radius of side bar sprocket flanges
	P	D6	F1	F2	L	H	R
	inches								lbs	lbs/ft
720	6.00	0.69	1.69	1.81	1.13	1.50	–	20	22,000	4.2
720S	6.00	0.75	2.00	2.00	1.13	1.56	–	20	30,000	5.1
720SC	6.00	0.75	1.69	2.13	1.13	1.59	10.00	20	30,000	6.0
730	6.00	0.75	1.69	2.13	1.13	1.75	–	20	30,000	6.0
730SC	6.00	0.75	1.69	2.13	1.13	1.75	10.13	20	30,000	6.0
