British Standard SP Chains with F1 attachments

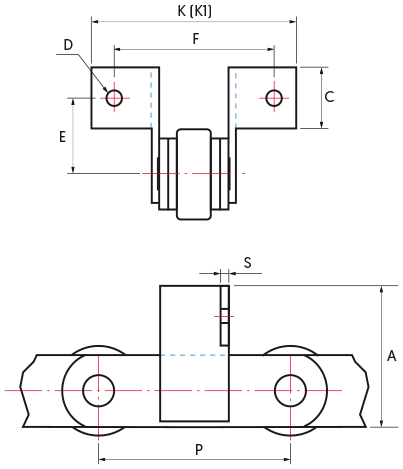

British Standard SP Chains with F1 attachments - drawing

British Standard SP Chains with F1 attachments
Chain Number	Pitch		Total Height of Attachment	Attachment Face Height	Hole Diameter	Attachment Hole Distance From Chain Centerline	Transverse Pitch	Width Over Attachment Outer Plate	Width Over Attachment Inner Plate	Attachment Thickness
	Inner Plate	Outer Plate	Total Height of Attachment	Attachment Face Height	Hole Diameter	Attachment Hole Distance From Chain Centerline	Transverse Pitch	Width Over Attachment Outer Plate	Width Over Attachment Inner Plate	Attachment Thickness
	P		A	C	D	E	F	K	K1	S
	mm
SP43	69.9	57.2	56	25.4	9.2	32.4	76.2	118	108	4
SP75	101.6	82.6	84	31.8	10.5	51.4	88.9	136	125	5
SP135	139.7	114.3	108	44.5	12.2	63.5	108	159	145	6
SP200	165.1	133.4	152	63.5	13.7	88.9	146	200	182	8
SP300	165.1	133.4	152	63.5	13.7	88.9	146	200	182	10
