JOHN KING British standard is a series of roller conveyor chains that conform to imperial dimensions. They are predominant in the British market or those markets where a strong British presence has influenced engineering design and purchasing. The more common types are generally of riveted construction. The standard material selection calls for low alloy steel with case carborising. JOHN KING have enhanced this series by introducing heat treatment to side plates. This has made their standard product “double strength” as compared to their competition.

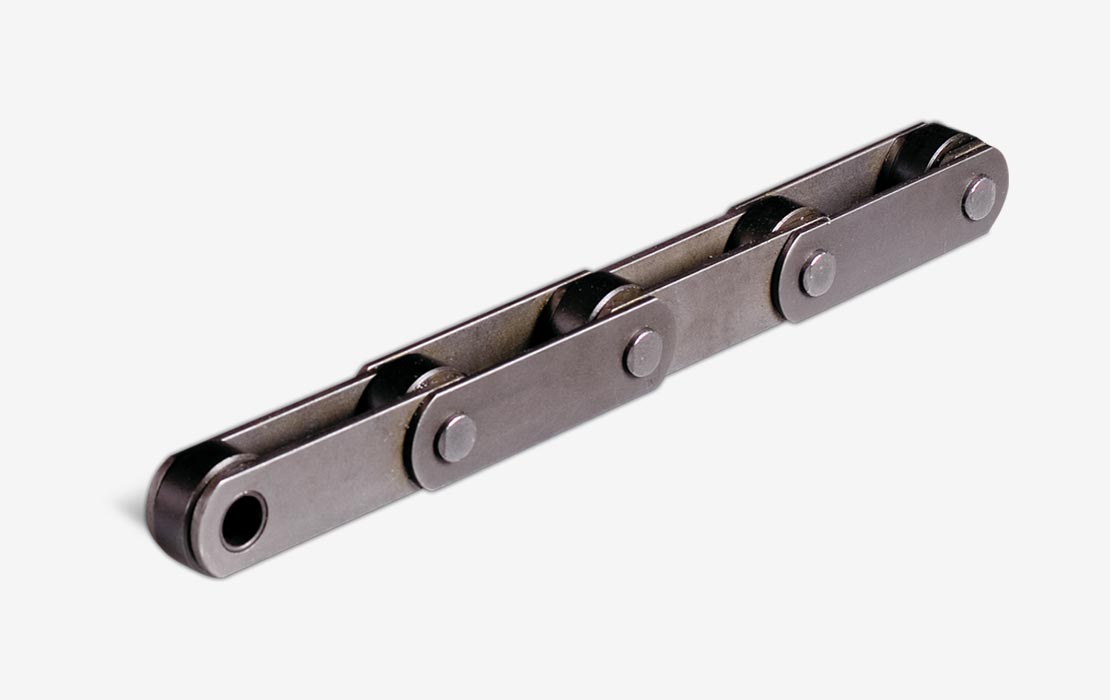

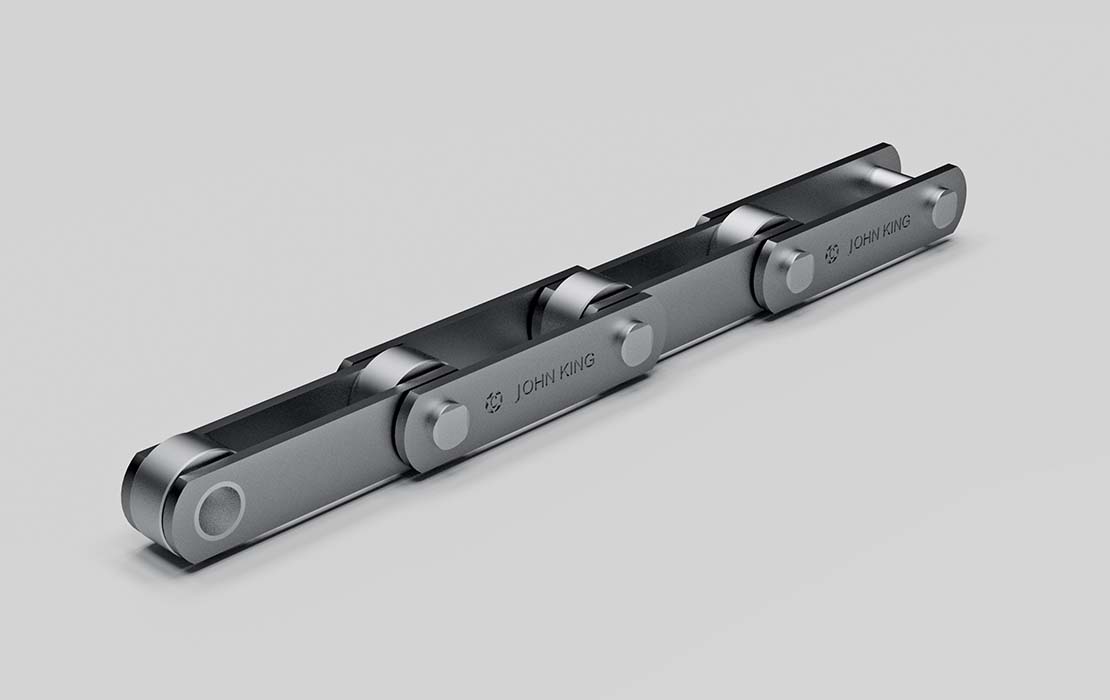

British Standard Solid Pin Chains BS 4116 (SP Series)

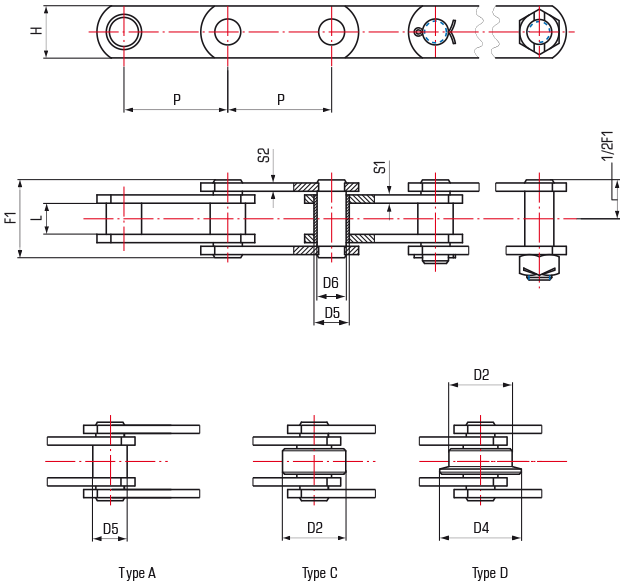

Chain Number	P	Rollers			Bushings	Pins Diameter	Over-All	Between Sidebars	Sidebars			Breaking Load		Average Weight
		Style			Outside Diameter	Pins Diameter	Over-All	Between Sidebars	Thickness		Height
		D2	D4	Flange Thickness	D5	D6	F1	L	S1	S2	H
	mm											kN	kN*	kg/m
SP43/0508/P	50.8	31.75	40	2.5	17	14	37	15	4	4	25	43	70	3.95
SP43/0635/P	63.5	31.75	40	2.5	17	14	37	15	4	4	25	43	70	3.49
SP43/0762/P	76.2	31.75	40	2.5	17	14	37	15	4	4	25	43	70	3.19
SP43/0889/P	88.9	31.75	40	2.5	17	14	37	15	4	4	25	43	70	2.97
SP43/1016/P	101.6	31.75	40	2.5	17	14	37	15	4	4	25	43	70	2.80
SP43/1270/P	127.0	31.75	40	2.5	17	14	37	15	4	4	25	43	70	2.57
SP43/1524/P	152.4	31.75	40	2.5	17	14	37	15	4	4	25	43	70	2.42
SP75/0762/P	76.2	47.5	60	3.5	23	19	45	19	5	4	40	75	125	7.62
SP75/0889/P	88.9	47.5	60	3.5	23	19	45	19	5	4	40	75	125	6.95
SP75/1016/P	101.6	47.5	60	3.5	23	19	45	19	5	4	40	75	125	6.13
SP75/1270/P	127.0	47.5	60	3.5	23	19	45	19	5	4	40	75	125	5.72
SP75/1524/P	152.4	47.5	60	3.5	23	19	45	19	5	4	40	75	125	5.24
SP75/1778/P	177.8	47.5	60	3.5	23	19	45	19	5	4	40	75	125	4.90
SP75/2032/P	203.2	47.5	60	3.5	23	19	45	19	5	4	40	75	125	4.65
SP135/1016/P	101.6	66.1	82	9.5	33	26.9	58	26	7	5	50	135	200	14.22
SP135/1270/P	127.0	66.1	82	9.5	33	26.9	58	26	7	5	50	135	200	12.40
SP135/1524/P	152.4	66.1	82	9.5	33	26.9	58	26	7	5	50	135	200	11.18
SP135/1778/P	177.8	66.1	82	9.5	33	26.9	58	26	7	5	50	135	200	10.31
SP135/2032/P	203.2	66.1	82	9.5	33	26.9	58	26	7	5	50	135	200	9.66
SP135/2286/P	228.6	66.1	82	9.5	33	26.9	58	26	7	5	50	135	200	9.16
SP135/2540/P	254.0	66.1	82	9.5	33	26.9	58	26	7	5	50	135	200	8.64
SP200/1524/P	152.4	88.9	114	9.5	38	32	78	38	8	8	60	215	320	24.15
SP200/1778/P	177.8	88.9	114	9.5	38	32	78	38	8	8	60	215	320	21.87
SP200/2032/P	203.2	88.9	114	9.5	38	32	78	38	8	8	60	215	320	20.15
SP200/2540/P	254.0	88.9	114	9.5	38	32	78	38	8	8	60	215	320	18.12
SP200/3048/P	304.8	88.9	114	9.5	38	32	78	38	8	8	60	215	320	16.17
SP300/1524/P	152.4	88.9	114	10.5	38	32	84	38	10	8	70	300	420	23.38
SP300/1778/P	177.8	88.9	114	10.5	38	32	84	38	10	8	70	300	420	21.64
SP300/2032/P	203.2	88.9	114	10.5	38	32	84	38	10	8	70	300	420	19.96
SP300/2540/P	254.0	88.9	114	10.5	38	32	84	38	10	8	70	300	420	18.05
SP300/3048/P	304.8	88.9	114	10.5	38	32	84	38	10	8	70	300	420	16.04

* Breaking Load with HT Link Plates
