Crank Link Roller Lift Chains


Crank Link Roller Lift Chains


Crank Link Roller Lift Chains

Chain
Number

P

Working
Load

Average
Tensile
Strength

Average
Weight

Roller

Between
Sidebars

Sidebars

Pins

Outside Diameter

Thickness

Height

Diameter

Length

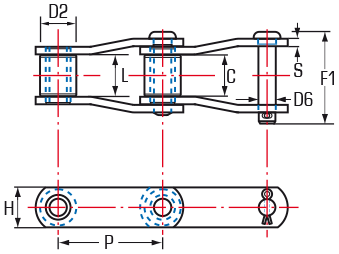

D6

F1

D2

L

S

H

inches

lbs

lbs/ft

inches

JK4063

4.063

9,000

150,000

15.40

1.750

1.938

0.500

2.250

0.875

4.453

JK4073

4.073

10,500

170,000

15.60

1.781

2.062

0.500

2.375

0.938

4.590

JK4080

4.080

9,000

140,000

15.50

1.750

1.938

0.500

2.250

0.875

4.710

JK3605

6.050

13,400

110,000

15.50

1.750

3.375

0.500

2.000

0.875

6.047
