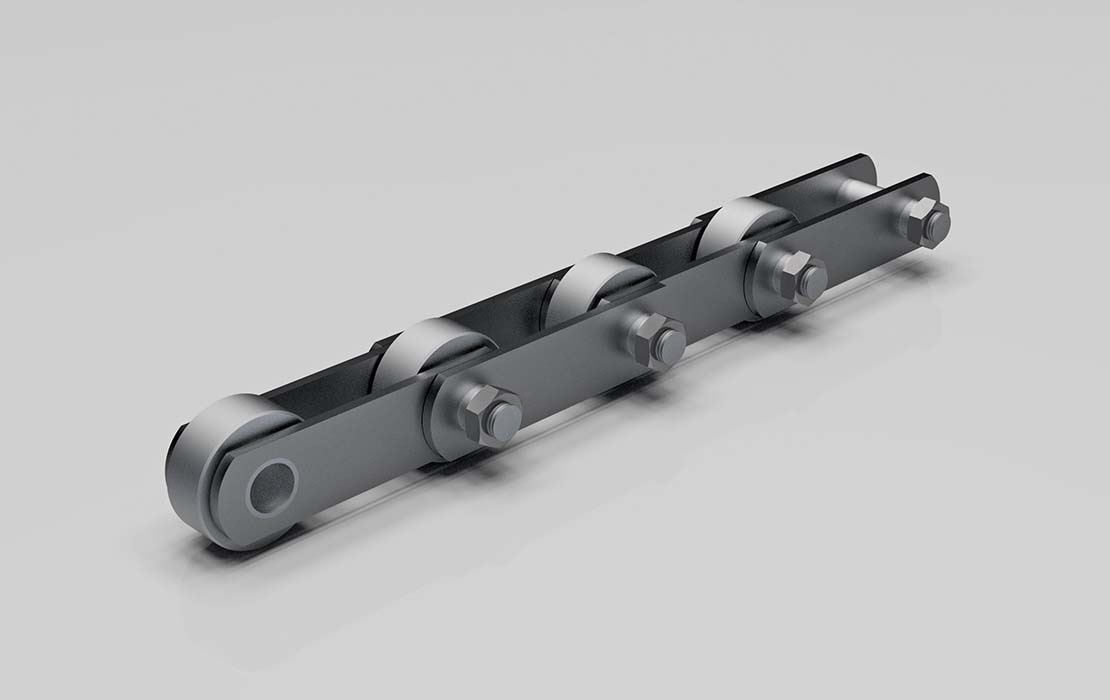

Roller Chain Extended Pins (Straight Sidebar)



Roller Chain Extended Pins (Straight Sidebar)

Roller Chain Extended Pins (Straight Sidebars)

Chain
Number

P

Breaking
Load

Rollers

Bushings

Between
Sidebars

Sidebars

Pins

F1

Thread

Dia.

Outside Diameter

Thickness

Height

Diameter

D2

D5

L

S1

S2

H

D6

D6/1

mm

kN

mm

SP200/1524/D5X/P

152.4

200

88.9

38.1

39

8

8

60

31.8

30

15.5

M24

SP200/1778/D5X/P

177.8

300

88.9

38.1

39

10

10

60

23

22

16.4

M24
