700 Series Collector Chains (720)

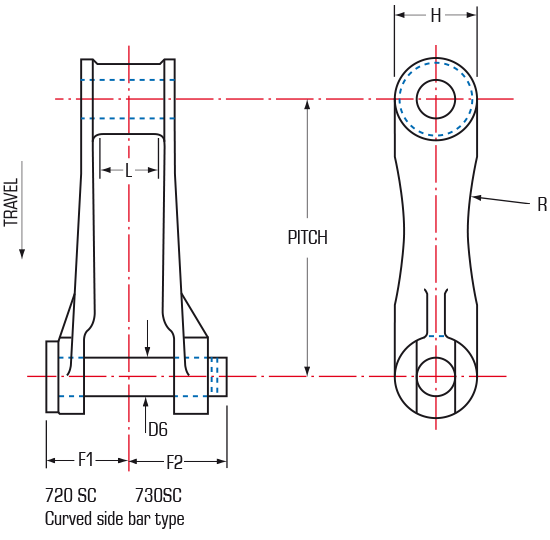

700 Series Collector Chains (720) - Curved side bar type

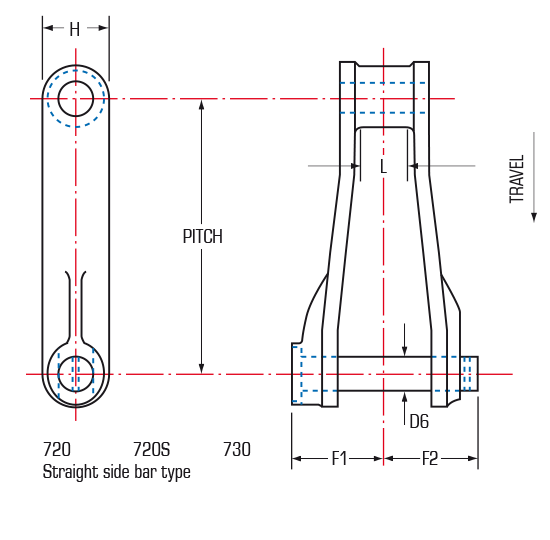

700 Series Collector Chains (720)

Chain
Number

Pitch

F1

F2

D6

L

H

Radius of side
bar sprocket
flanges

Number
of Links
in 10 Ft

Ultimate Tensile Strenght

Average
Weight

P

R

inches

lbs

lbs/ft

720

6.00

1.69

1.81

0.69

1.13

1.50

–

20

22,000

4.2

720S

6.00

2.00

2.00

0.75

1.13

1.56

–

20

30,000

5.1

720SC

6.00

1.69

2.13

0.75

1.13

1.59

10.00

20

30,000

6

730

6.00

1.69

2.13

0.75

1.13

1.75

–

20

30,000

6

730SC

6.00

1.69

2.13

0.75

1.13

1.75

10.13

20

30,000

6

WH720S

6.00

1.719

1.719

0.75

1.13

1.56

–

–

–

5.7

SS720

6.00

1.69

1.81

0.69

1.13

1.50

–

20

22,000

4.2

PM720S

6.00

1.719

1.719

0.75

1.13

1.56

–

–

–

5.7
