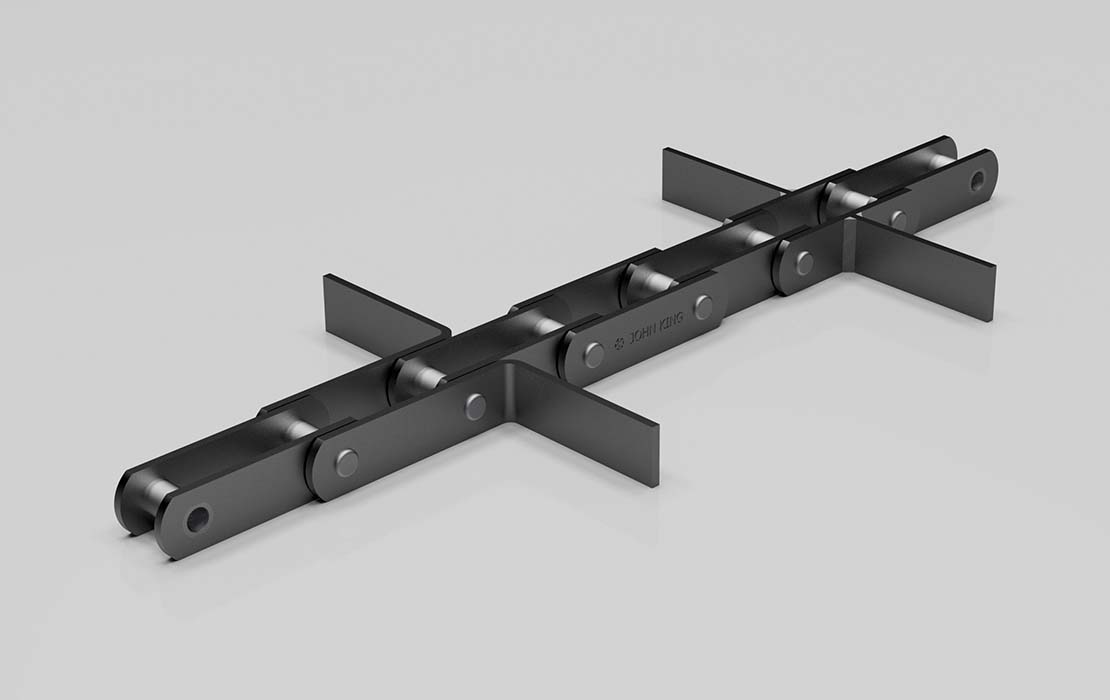

Throughout Europe metric standard chain is used in trough conveyors for grain transport. M series according to DIN 8167 is the most typical of the two main ranges that are predominant. The chains are exactly as the standard but in bush form without roller. The flights are normally BT style being bent integral and these are normally produced to customer preference, but WT the welded version allows for quick supply from stock plain chain. As these chains are produced in larger volumes they generally prove to be an economic option.
Metric Conveyor Chains ISO 1977, DIN 8167 (M Series) |
|||||||||
Chain |
Pitch |
Bushings |
Pins |
Between |
Sidebars |
Overall Width |
Breaking |
||
Diameter |
Thickness |
Height |
|||||||
P |
D5 |
D6 |
L |
S |
H |
IX |
DIN |
John King** |
|
mm |
kN |
||||||||
M56 |
63 |
15 |
10 |
24 |
4 |
30 |
TBA* |
56 |
85 |
M56 |
80 |
15 |
10 |
24 |
4 |
30 |
TBA* |
56 |
85 |
M56 |
100 |
15 |
10 |
24 |
4 |
30 |
TBA* |
56 |
85 |
M56 |
125 |
15 |
10 |
24 |
4 |
30 |
TBA* |
56 |
85 |
M56 |
160 |
15 |
10 |
24 |
4 |
30 |
TBA* |
56 |
85 |
M80 |
80 |
18 |
12 |
28 |
5 |
35 |
TBA* |
80 |
125 |
M80 |
100 |
18 |
12 |
28 |
5 |
35 |
TBA* |
80 |
125 |
M80 |
125 |
18 |
12 |
28 |
5 |
35 |
TBA* |
80 |
125 |
M80 |
160 |
18 |
12 |
28 |
5 |
35 |
TBA* |
80 |
125 |
M80 |
200 |
18 |
12 |
28 |
5 |
35 |
TBA* |
80 |
125 |
M112 |
80 |
21 |
15 |
32 |
6 |
40 |
TBA* |
112 |
175 |
M112 |
100 |
21 |
15 |
32 |
6 |
40 |
TBA* |
112 |
175 |
M112 |
125 |
21 |
15 |
32 |
6 |
40 |
TBA* |
112 |
175 |
M112 |
160 |
21 |
15 |
32 |
6 |
40 |
TBA* |
112 |
175 |
M112 |
200 |
21 |
15 |
32 |
6 |
40 |
TBA* |
112 |
175 |
M160 |
100 |
25 |
18 |
37 |
7 |
50 |
TBA* |
160 |
260 |
M160 |
125 |
25 |
18 |
37 |
7 |
50 |
TBA* |
160 |
260 |
M160 |
160 |
25 |
18 |
37 |
7 |
50 |
TBA* |
160 |
260 |
M160 |
200 |
25 |
18 |
37 |
7 |
50 |
TBA* |
160 |
260 |
M160 |
250 |
25 |
18 |
37 |
7 |
50 |
TBA* |
160 |
260 |
M224 |
125 |
30 |
21 |
43 |
8 |
60 |
TBA* |
224 |
340 |
M224 |
160 |
30 |
21 |
43 |
8 |
60 |
TBA* |
224 |
340 |
M224 |
200 |
30 |
21 |
43 |
8 |
60 |
TBA* |
224 |
340 |
M224 |
250 |
30 |
21 |
43 |
8 |
60 |
TBA* |
224 |
340 |
M224 |
315 |
30 |
21 |
43 |
8 |
60 |
TBA* |
224 |
340 |
M315 |
160 |
36 |
25 |
48 |
10 |
70 |
TBA* |
315 |
520 |
M315 |
200 |
36 |
25 |
48 |
10 |
70 |
TBA* |
315 |
520 |
M135 |
250 |
36 |
25 |
48 |
10 |
70 |
TBA* |
315 |
520 |
M315 |
315 |
36 |
25 |
48 |
10 |
70 |
TBA* |
315 |
520 |
M315 |
400 |
36 |
25 |
48 |
10 |
70 |
TBA* |
315 |
520 |
Chains can be supplied riveted or cottered on both sides.
Flight Options: WT denotes flight welded to side plate mid pitch, BT denotes flight bent integral with linkplate.
* Flight width IX to suit customer requirements. ** Breaking Load with heat treated Plates.
