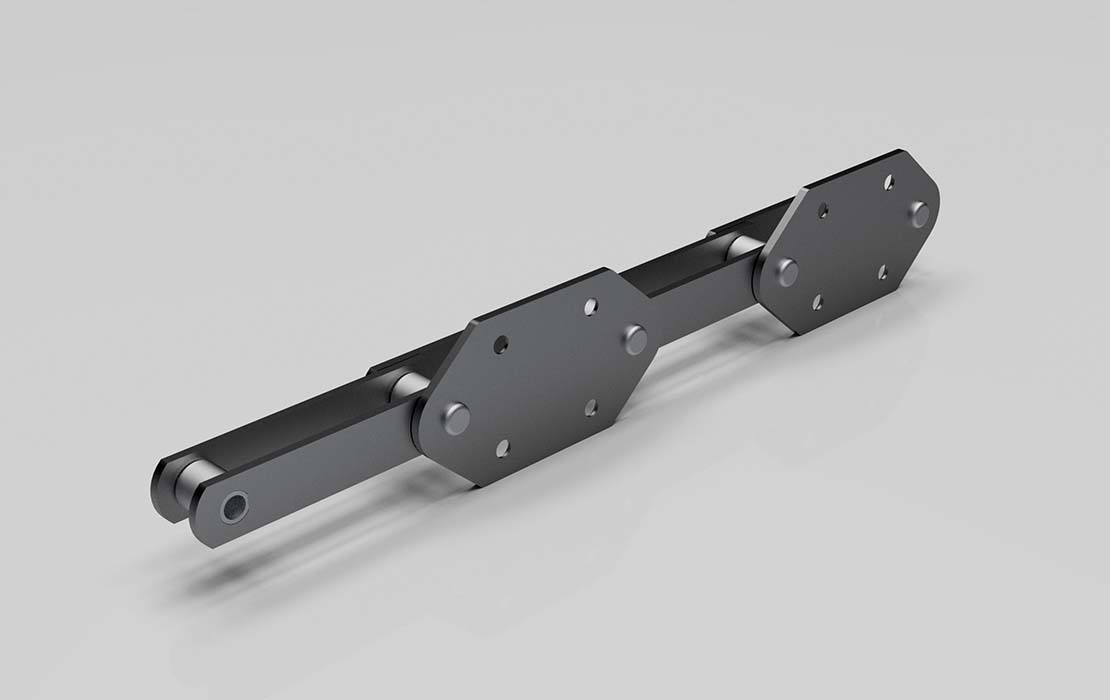

King Double Strand Bucket Elevator with Side Mounted Bucket

King Double Strand Bucket Elevator with Side Mounted Bucket - drawing

King Double Strand Bucket Elevator with Side Mounted Bucket
Chain Number	Pitch	Rollers	Pins	Over-All Pin & Cotter		Between Sidebars	Sidebars		Average Ultimate Strength
	Pitch	Outside Diameter	Diameter	Over-All Pin & Cotter		Between Sidebars	Thickness	Height
	P	D2	D6	F1	F2	L	S	H
	mm								kg
JKR26200	200	50.8	22.2	56	61	57.2	9.5	63.5	57,500
JKR26250	250	50.8	22.2	56	61	57.2	9.5	63.5	57,500
JKR26300	300	50.8	22.2	68.5	61	57.2	9.5	63.5	57,500
JKR36250	350	57.2	25.4	69	78	66.7	12.7	76.2	88,500
JKR36300	300	57.2	25.4	81	78	66.7	12.7	76.2	88,500
JKR36350	350	57.2	25.4	81	78	66.7	12.7	76.2	88,500
JKR60300	300	70	35.0	88	84	77	12.7	90	106,000
JKR60350	350	70	35.0	88	84	77	12.7	90	106,000
JKR60400	400	70	35.0	88	84	77	12.7	90	106,000
JKR90350	350	85	42.0	101.5	95.5	88	16	110	166,000
JKR90400	400	85	42.0	101.5	95.5	88	16	110	166,000
JKR120400	400	100	50.0	119.5	108	100	19	130	225,000

G Attachment

For Double Strand Elevators Kings propose their JKR series with fixed G attachments for side mounting on the buckets.

King Double Strand Bucket Elevetor with Side Mounted Bucket with G Attachment
Chain Number	Pitch	V	F3	F4	Tp	Q	A	O	Bolt Diameter
	P	V	F3	F4	Tp	Q	A	O
	mm
JKR26200-A	200	120	100	80	9.5	48	26	15	M12
JKR26200-B	200	120	100	80	9.5	48	26	15	M14
JKR26250-A	250	150	140	100	9.5	48	26	15	M12
JKR26250-B	250	150	140	100	9.5	48	32	19	M16
JKR26300-A	300	150	180	100	9.5	48	26	15	M12
JKR26300-B	300	200	170	140	12	60	38	24	M20
JKR36250-A	250	150	140	100	12.7	60	32	19	M16
JKR36250-B	250	150	140	100	12.7	60	32	19	M16
JKR36300-A	300	150	180	100	12.7	60	32	19	M16
JKR36300-B	300	200	170	140	12	72	38	24	M20
JKR60300-B	300	200	170	140	12	77	38	24	M20
JKR36350-B	350	240	200	170	12	72	40	28	M24
JKR60350-B	350	240	200	170	12	77	40	28	M24
JKR60400-B	400	280	230	200	16	81	50	35	M30
JKR90350-B	350	240	200	170	12	89.5	40	28	M24
JKR90400-B	400	280	230	200	16	93.5	50	35	M30
JKR120400-B	400	280	230	200	16	105.5	50	35	M30
